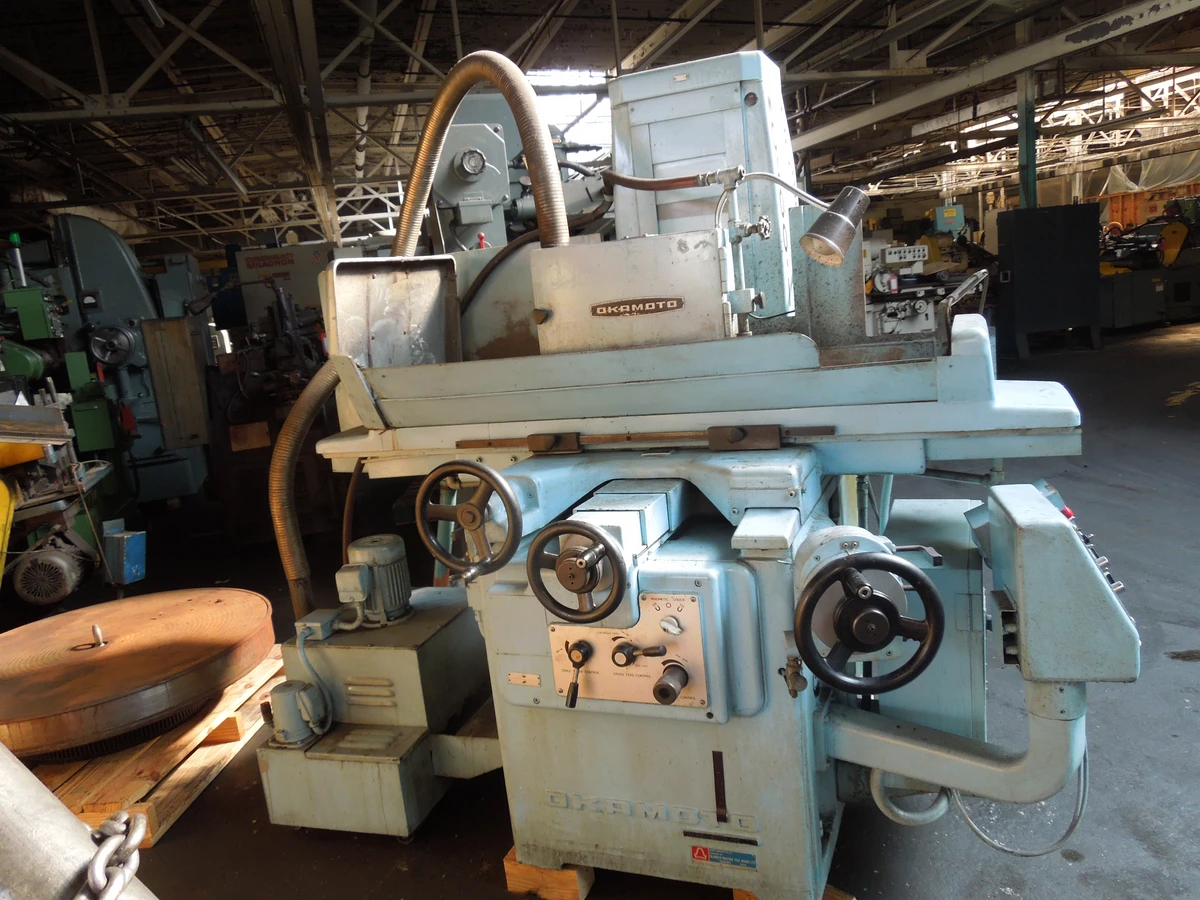

OKAMOTO ACCUGAR 124N HORIZONTAL SURFACE GRINDER

OKAMOTO ACCUGAR 124N HORIZONTAL SURFACE GRINDER

S/N 6242

STANDARD SPECIFICATIONS

CAPACITY
Max Grinding (L x W)………………………………….. 24" x 12"
Max Vertical Clearance……………..…………………… 13.7"
Max Weight Of Workpiece…...………………………….. 925 lbs.

TABLE
Surface Length……………………………………………. 23.75”
Surface Width…………………………………………….. 11.8”
Max Longitudinal Travel…………………………………..29.5”
Max Cross Travel………………………………………….13.6”
T-Slots……………………………………………………...3 x .669”

FEEDS
Hydraulic Feed……………………………………………..1.0-100 FPM
Rapid Feed…………………………………………………19”/min

GRINDING WHEEL
Diameter……………………………………………………12”
Width……………………………………………………….1.5”
Bore…………………………………………………………5”
Speed………………………………………………………..1800RPM

MOTORS
Grinding Wheel Spindle……………………………………..5 HP
Vertical Rapid Feeder………………………………………..0.5 HP
Hydraulic Pump……………………………………………...2 HP

DIMENSIONS
Floor Space…………………………………………………..103” x 74” x 73”
Approx. Weight………………………………………………4,900 LBS

Specifications are deemed accurate, however, subject to verification or prior sale.
