CINCINNATI 10x30 LL 6P2C5D-9

                                                                                    10 x 30 LL CINCINNATI PLAIN HYDRAULIC CYLINDRICAL GRINDER

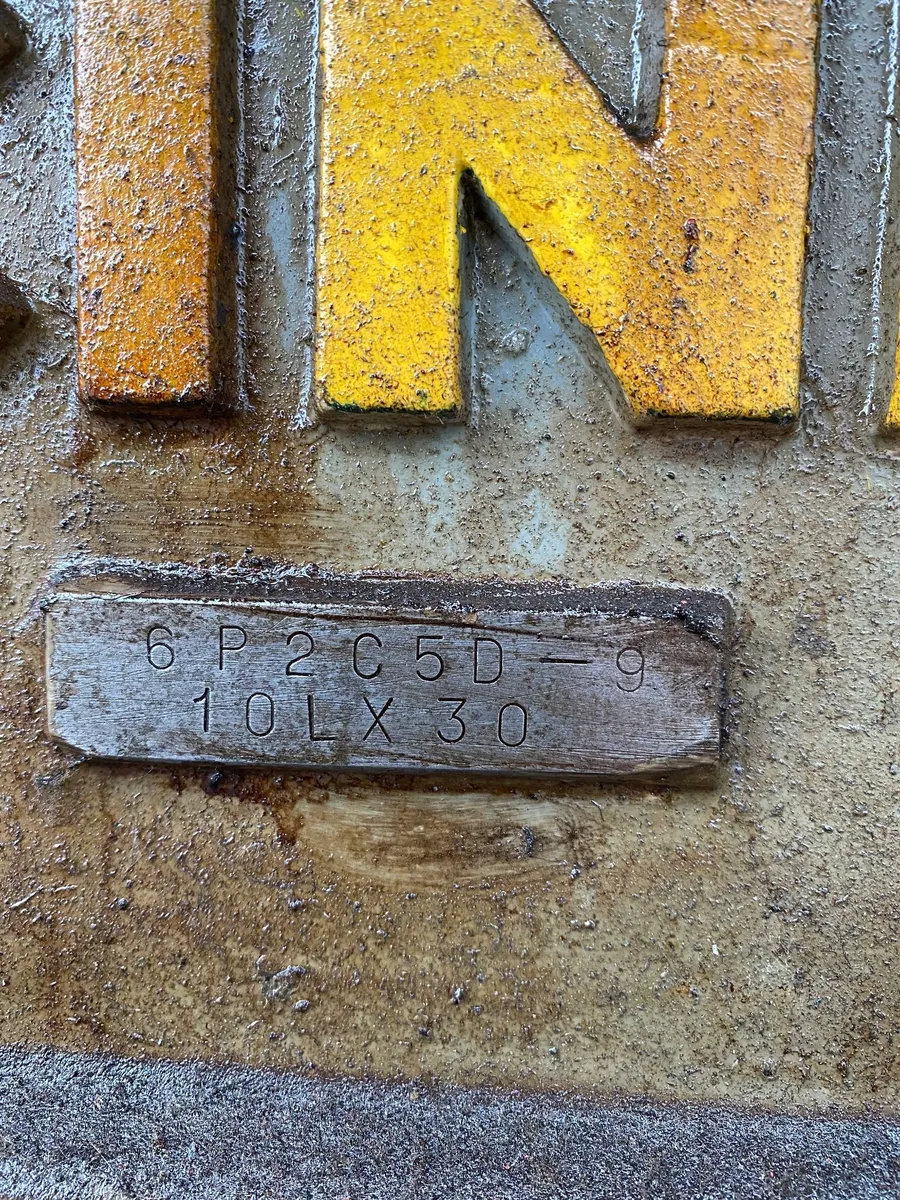

                                                                                                                                S/N 6P2C5D-9

STANDARD CATALOG SPECIFICATIONS
Maximum swing over table........................... 10 5/8"
Maximum dia. machine will grind with full size wheel:
(24" Diameter)..................................... 10"
Minimum dia. machine will grind with worn out wheel:
(15" Diameter)..................................... 0"
Maximum distance between centers................... 30"
Maximum table travel............................... 30 7/8"
Swivel table graduated to angle of:
Towards wheel head................................. 9 1/2 degrees
Away from wheel head............................... 2 degrees
Swivel table graduated taper per foot of:
Towards wheel head................................. 4"
Away from wheel head............................... 1"

HEAD STOCK & FOOT STOCK
Taper hole in head stock & foot stock spindles..... #10 B&S
Work speeds   Number............................... 4
Range of work speeds corresponding to head stock motor
speed and cycle:
1200 RPM   60 Cycle................. 55, 111, 173, 268
950 RPM   50 Cycle.................. 56, 94, 146, 226
725 RPM   25 Cycle.................. 55, 99, 169, 312
Type of drive....................... V Belt and silent chain
Work speed control.................. Shift V belt on 4 step pulley

GRINDING WHEEL HEAD
Grinding wheel.................................... 24" x 5" x 12"
Spindle speed for 24" wheels...................... 1034 RPM

INFEED ADJUSTMENTS
Wheel movement per revolution of infeed hand wheel:
Low............................................... .050"
High.............................................. .125"
Minimum infeed increment, diameter reduction automatic
infeed at table reversal:
Low............................................... .0004"   .0024"
High.............................................. .001"   .007"
One graduated space on dial, diameter reduction... .0004"
Distance from floor to work centers............... 42 1/4"

POWER REQUIREMENTS
Wheel head motor.................................. 7 1/2 HP
Hydraulic pump motor.............................. 1 HP
Head stock motor.................................. 1/2 HP
Spindle lubricating motor......................... 1/3 HP
Coolant pump motor................................ 1/4 HP

EQUIPMENT & FEATURES
Plunge cycled.
Behind wheel hydraulic truing with auto diamond advance.
Fine feed.
Coarse feed.
Filmatic bearings.
Hydraulic tail stock.
Floor space required.......................... 72 1/2" x 127 3/8"
Net weight.................................... 6,800 lbs.

Specifications are deemed accurate, however, subject to verification or prior sale.
