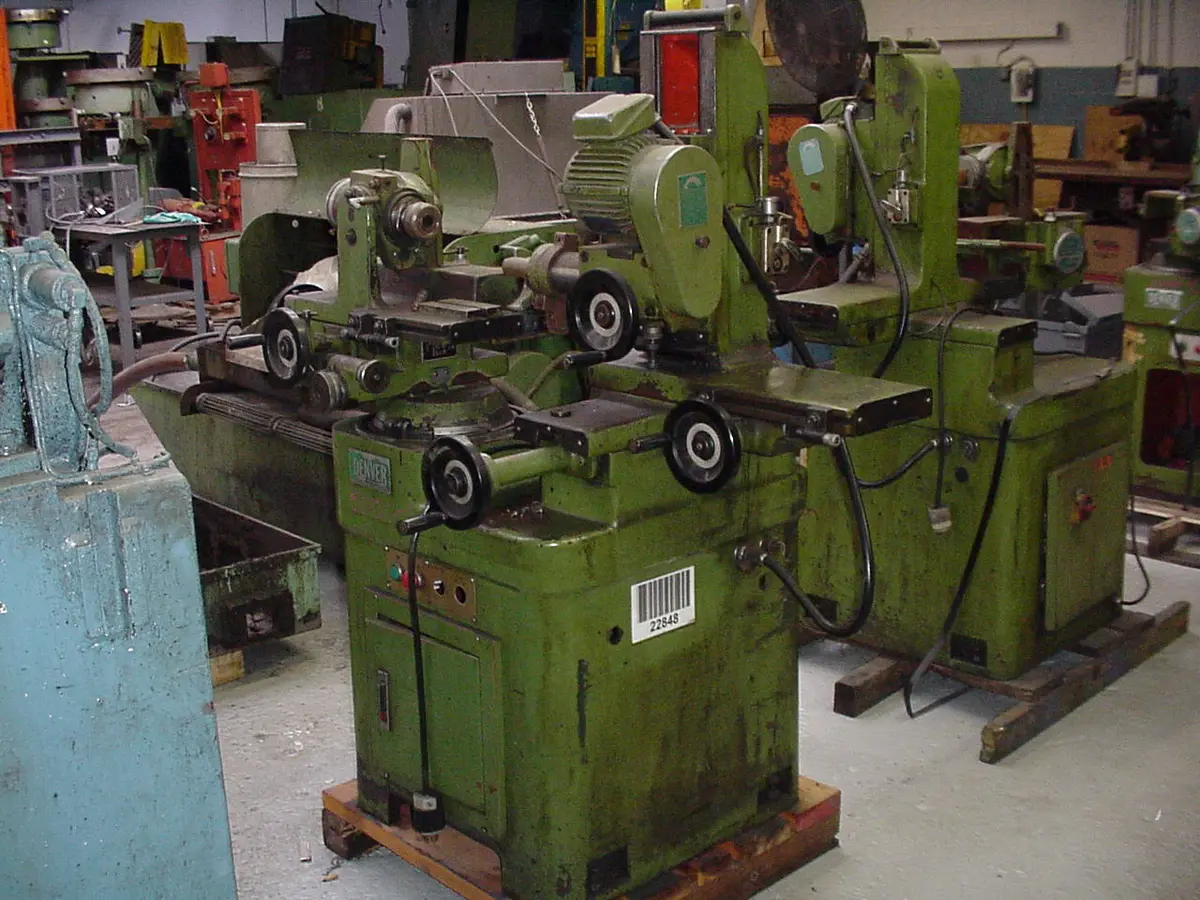

MORGAN DENVER MONOSET CLONE ASTRO 7085

MORGAN-DENVER MONOSETCLONE TOOL CUTTER GRINDER ASTRO
S/N 7085 Year: 1989

STANDARD SPCIFICATIONS
Collet work diameter, minimum……………………………………………. .125
Collet work diameter, maximum……………………………………………. 1.25
Swing over main slide, maximum…………………………….…………….. 12

Work Length Capacity -
Between spindle tailstock center………………………………………… 6

Work head, main slide travel………………………………………………. 5.75
Work head, offset slide travel, total……………………….……………….. 5.25

Work head Angular Adjustments -
Horizontal plane, turntable…………………………………………………. 235�
Vertical plane, above center………………………………………………..40�
Vertical plane, below center……………………………………………….. 40�
Wheel head, longitudinal slide travel……………………….……………... 6
Wheel head, cross slide travel……………………………..……………....7.50
Wheel head, vertical slide travel, tot………………….……………..9.50
Wheel head, vertical travel above center……………..……………... 4.25
Wheel head, vertical travel below center…………..………………... 4.50
Grinding wheel diameter, maximum……………..………………..…4
(3) Wheel head, spindle speeds, range…………...………..………… 4000 to 8000 RPM
Work head, spindle speed…………………………………..……..…. 436 RPM
Work head motor, horsepower……………………………….……… 1/4 HP
Wheel head motor, horsepower……………………………….……... 1/2 HP
Floorspace required, W x D……………………..…………….…….. 25 x 26
Weight, approximately………………………………………………. 1525 lbs.

EQUIPPEDWITH
Work head.
Bijur one-shot lubrication system.

Specifications are deemed accurate, however, subject to verification or prior sale.
