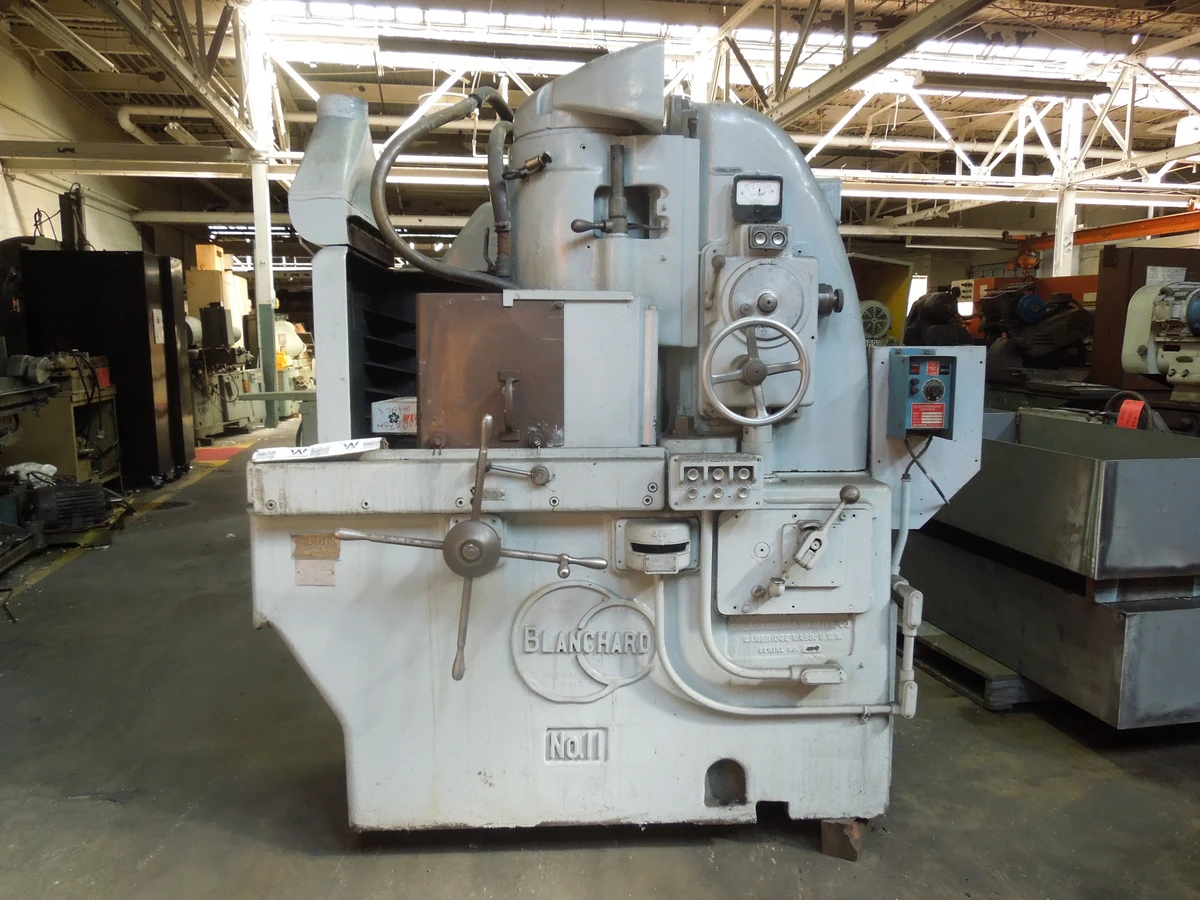

#11‑16 BLANCHARD ROTARY SURFACE GRINDER

S/N 7209

STANDARD SPECIFICATIONS

RANGE
20Diameter x 7 high over 16 chuck with new cylinder wheel.

WORK TABLE
Blanchard one‑piece steelmagnetic chuck, 16 diameter with 1/2 pole spacing, 3/4 centerhole, four 3/8 tapped holes for securing stops or fixtures. Chuck uses direct current only, 110 or 220volts, 156 watts required, 1.4 amperes on 110 volts, 0.7 ampere on 220 volts.

NOTE: Where direct current is not available a 500watt rectifier is ample for onechuck either on voltage.

WHEEL
11 Diameter, 5 deep, 1 thick (11x 5 x 9) wire banded
cylinder wheel (usable depth 4 1/4).

SPEEDS
Wheel: 1500R.P.M. on 25 and 50 cycle (uses wheel 10 x 4 x 8).
Chuck: Four geared speeds 15, 24, 41, and 64 R.P.M.on 60 cycle; 12, 20, 35,and 53 R.P.M. on 25 and 50 cycle.

FEED
Vertical down feed by handor power, dial graduated in .0005 (dials can be furnished with metricgraduations). Power feed variable from.003 to .070 per minute on 60 cycle current (.003 to .058per minute on 50 cycle) with accurate automatic stop. Maximum down feed before stop operates is.048. Wheel head has rapid raiseand lower by power, interlocked with feed.

WATER SUPPLY
Easy cleaning tank in base,capacity over 75 gallons. Motor drivencentrifugal pump submerged in tank, 16 gallons per minute discharge, supplyingwater inside the wheel and to outside nozzle through 3/4 pipes.

FLOOR SPACE HEIGHT
Length .................................................5'3
Width ..................................................3'6
Maximum height: ........................................6' 8 3/4
Minimum: ...............................................5'9 1/2
Height of chuck from floor:.............................36 1/2

WEIGHT
Domestic shipping weight................................6100 lbs.
Export shipment in one case approximately:
6'3 x 4'3 x 6'11 high; 175 cubic feet.

STANDARD EQUIPMENT
16 magnetic chuck withdemagnetizing switch, 15 HP motor built into wheel head, rotor mounted onmachine spindle, ammeter in wheel motor circuit; 1 HP totally enclosed, ballbearing motor for table drive; for rapid torque motor, totally enclosed, ballbearing, for rapid rising and lowering of the head; 1/4 HP totally enclosed,ball bearing motor driven coolant pump.All with 110 volt push buttons on front of machine completely wired tocontrol panel on back of machine containing starters and protective relays forall motors and disconnect switch; water guards and piping.

PRIVATEADDITIONAL FEATUREStc� \l 1 ADDITIONAL FEATURES
Solidwheel.
Loadmonitor.
Coolantin base.
Dresser.
Electro-Magneticchuck control

Specifications are deemed accurate, however, subject to verification orprior sale.
