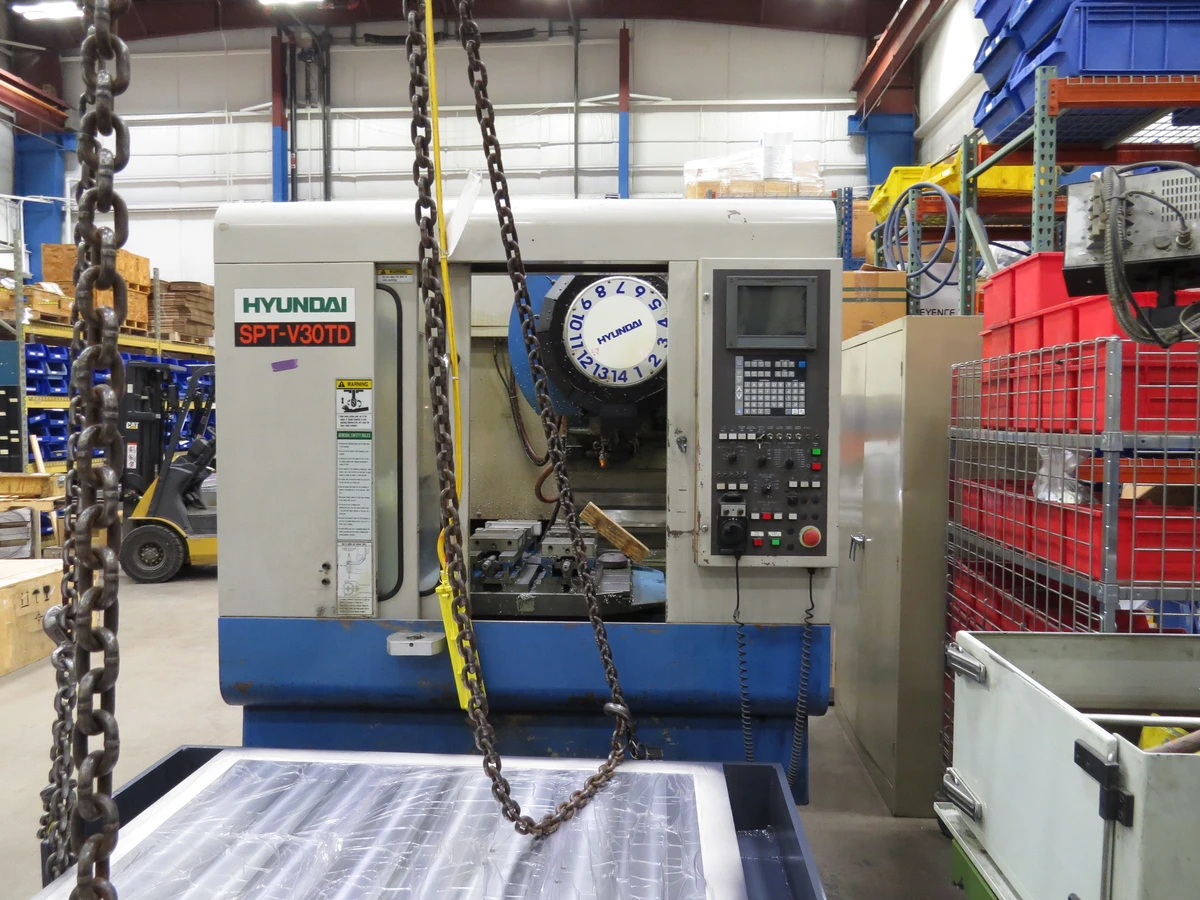

HYUNDAI SPT-V30TD 73DH8061

                                                                                                    HYUNDAI SPT-V30 VERTICAL MACHINING CENTER

                                                                                                                    S/N 73DH8061    YEAR: 1998

SPECIFICATIONS
X-Axis Travel………………………………………………………………………………………20”
Y-Axis Travel………………………………………………………………………………………12”
Z-Axis Travel………………………………………………………………………………………12”
Spindle Taper………………………………………………………………………………………30 ISO/Bt/Mk
Spindle Speed………………………………………………………………………………………8000 RPM
Table Length…………………………………………………………………………………………24”
Table Width……………………………………………………………………………………………15”
Table Load………………………………………………………………………………………………200 LBS
X-Axis Feed Rate………………………………………………………………………………1181” per min

DIMENSIONS
Length…………………………………………………………………………………………………………65”
Width……………………………………………………………………………………………………………92”
Height…………………………………………………………………………………………………………102”
Weight…………………………………………………………………………………………………………7716 LBS

EQUIPPED WITH

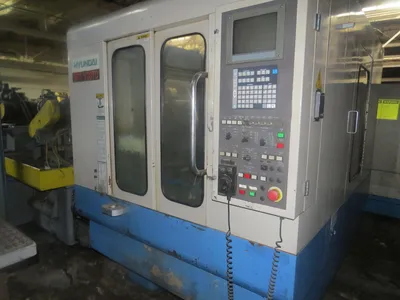

Yasnac CNC controls.

Specifications are deemed accurate, however, subject to verification or prior sale.
