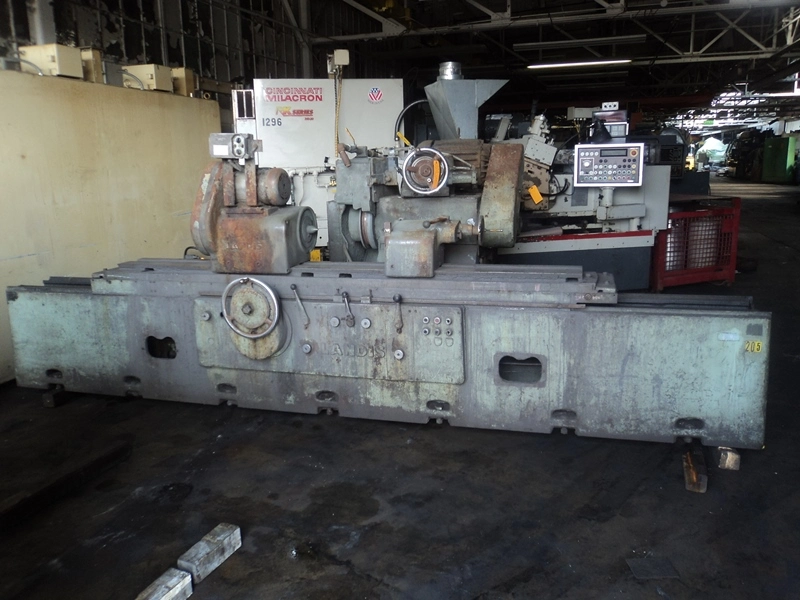

14 x 72 LANDIS LR CYLINDRICAL GRINDER

14 x 72 LANDIS LR CYLINDRICAL GRINDER
S/N 742-14 Year: 1962

STANDARD CATALOG SPECIFICATIONS
Nominal work swings................................ 14
Maximum work swing over table...................... 14 31/32
Nominal distances between work centers............. 72
PRIVATE Maximum work swing and diameter standard machine will grind with full size standard wheel on straight wheel head machine with hydraulic in feed stroke as noted.................. 14 31/32 H.I.tc� \l 1 Maximum work swing and diameterstandard machine will grind with full size standard wheel on straight wheelheadmachine with hydraulic infeed stroke as noted .................. 1431/32\ H.I.
Minimum diameter wheel to grind zero diameter work on
centers on straight wheel head machines............ 20
PRIVATE Maximum work swing and diameter standard machine will grind with full size standard wheel on angle wheel head machine with hydraulic stroke as noted.........................10-4 H.I.tc� \l 1 Maximum work swing and diameterstandard machine will grind with full size standard wheel on angle wheelheadmachine with hydraulic stroke as noted .. . . . . . . . . . . . . . . . .� 10\-4\ H.I.
Minimum diameter wheel to grind zero diameter work on
centers on angle wheel head machines............... 21-3/4
Coolant tank capacity..............................55 gallons
Hydraulic tank capacity............................22.5 gallons

WORK CARRIAGE
Traverse speed (in/min) all
Lengths thru 72...................................2 to 240
Traverse speed per turn off
Hand wheel:
Slow...............................................0.100
Fast...............................................0.750-72
Work rest capacity.................................1/2 to 7

WHEEL HEAD AND WHEEL FEED
Grinding wheel size – standard...................30 x 6 x 12
Grinding wheel spindle speeds....................800/964 RPM
Grinding wheel minimum diameter worn wheel ...... 20
Hydraulic rapid in feed -straight
Wheel head machine: Maximum standard............. 3 1/2
Minimum standard............. 15/8
Hydraulic rapid in feed - Angle
Wheel head machine: Maximum standard............. 4 1/4
Minimum standard............. 23/8

EQUIPPED WITH
Head stock with dead center vari-speed.
Tarry left right.
Tail stock dress.
Plunge.
Coolant in base.
20 HP Spindle motor.

G.C.H. is the largest stocking dealer of Cylindrical Grinders in the world. If for some reason this machine does not fit your requirements, please don't hesitate to ask your salesperson about the many others in our stock. We support what we sell.

Specifications are deemed accurate, however, subject to verification or prior sale.
