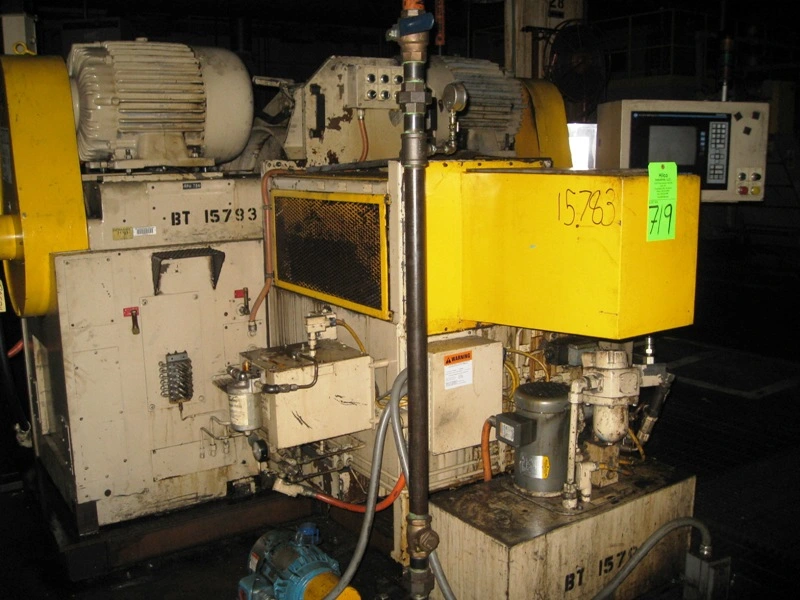

SDG5-30 GARDNER DOUBLE OPPOSED GUN FEED DISC GRINDER

SDG5-30 GARDNER DOUBLE OPPOSED GUN FEED DISC GRINDER

S/N 910-75 Year: 1975

STANDARD SPECIFICATIONS
30" Abrasive disc diameters.
3" Abrasive disc thickness.
15" Max. opening.
Servo incremental feed to .0001”.
Work capacity with 3” usable abrasive 6” wide.
Work diameter approximately 8”.

MACHINE FEATURES AND EQUIPMENT
RH Spindle motor drive 50 HP.
LH Spindle motor drive 50 HP.
Hydraulic gun feed fixture.
Push button control station.
Hydraulic hood raising assist.
Hydraulic swing arm wheel dresser.
Free standing cabinet with AB Panelview Controls.
Weight: 22,500 lbs.

Specifications are deemed accurate, however, subject to verification or prior sale.
