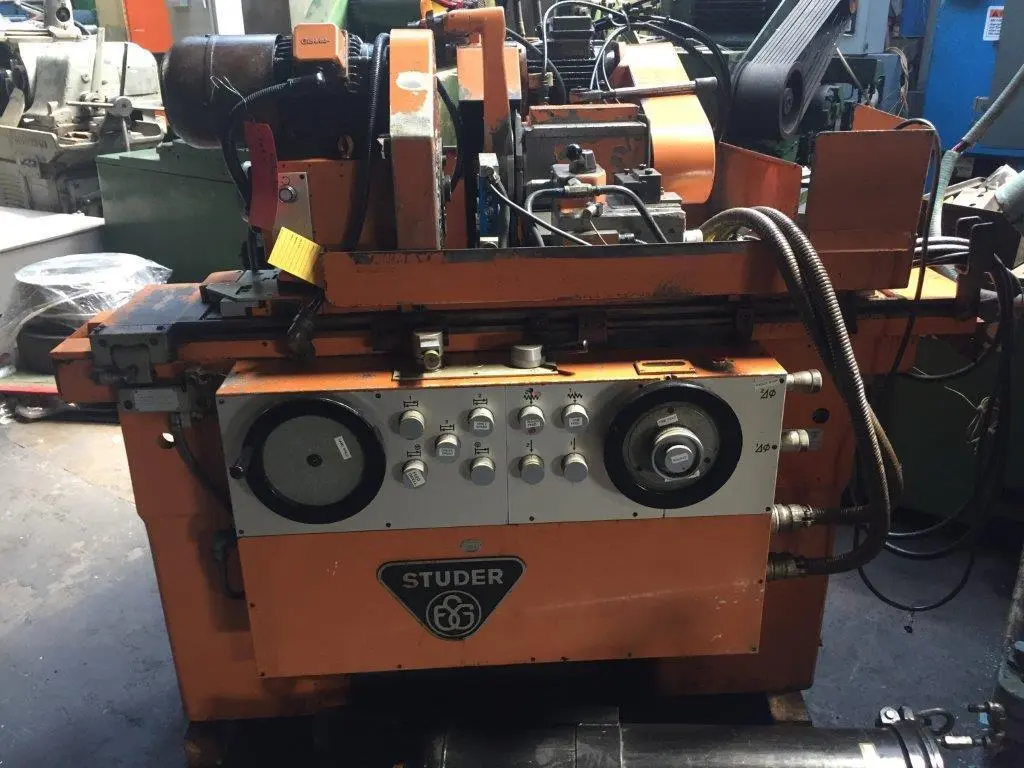

STUDER RHU 400 UNIVERSAL GRINDER

STUDER RHU 400 UNIVERSAL GRINDER
S/N 776.51

STANDARD SPECIFICATIONS

CAPACITY
Centre Height…..…………………………………. 5”
Distance between Centers.……………….. 16”
Longitudinal Travel……………………. 17” max
Swing………………………………………………….. 10”
Work piece Weight………………………… 176 lbs.

TABLE
Table Size……………………………... 36” Length x 6” Width
Table Speed (Infinitely Adjustable). 0.17 – 18.33 FPM
Dwell At Table Reversal……………….…….. 0 – 6 Seconds
Table Swivel…………………………………….. 12 Degrees max
Travel per Hand wheel Revolution……………………..0.98”

WORK HEAD
Swivel towards Grinding Wheel………………………90 Degrees
Spindle Speed (Infinitely Variable)…………. 30 to 675 RPM
Spindle Nose Taper………………………………………………. #5 MT

WHEEL HEAD
Grinding Wheel Size…………… 16” Dia x 3”Width x 5” Hole
Spindle Speeds (3)………………………. 1500/1625/1800 RPM
Hydraulic Approach Retraction……………………………. 1.58”
Hand Lever Adjustment………………………………………….. 8.27”
Swivel of Cross slide (LH RH)……………………… 45 Degrees
Auto In feed (Infinitely Variable)………… 0.00004” –0.002”
Plunge In feed……………………………………. 0.00008” – 0.004”
Plunge Dia Depth…………………………………………… 0.07” max

DIMENSIONS
Machine……………………………………………………. 58” L x 65” W x 59” H
Electrical Cabinet……………………………………… 26” L x 22” W x 56” H
Coolant Tank……………………………………………. 40” L x 30” W x 26” H
Machine Net Weight……….……………………………………………. 4,850 lbs.

Specifications are deemed accurate, however, subject to verification or prior sale.
