LANDIS 10 x 36 790-54

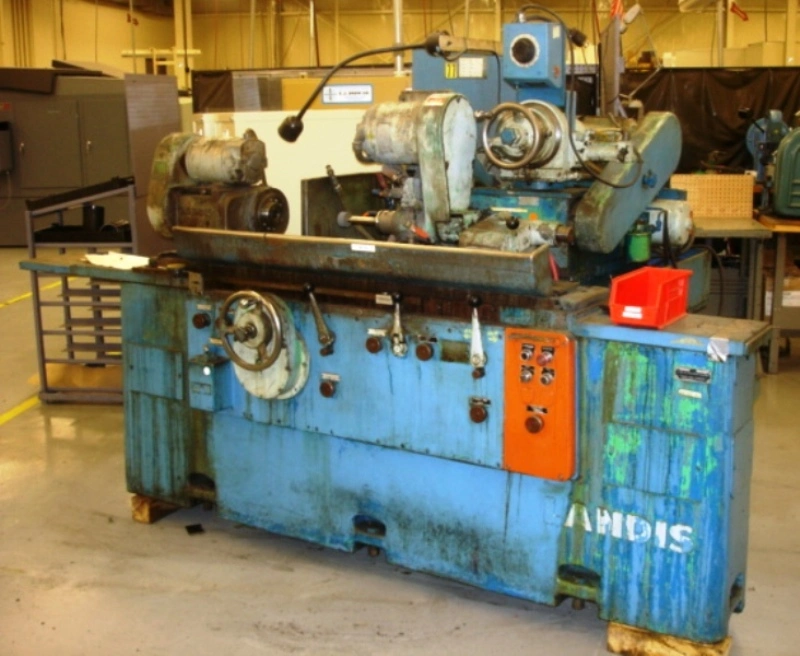

10 x 36 2R LANDIS UNIVERSAL CYLINDRICAL GRINDER

S/N 790‑54Year: 1965

STANDARD CATALOG SPECIFICATIONS

CAPACITY
Maximum swing over table........................... 10 15/16
Nominal distance between centers................... 36 9/16
Swivel table graduated to an angle of:
Toward wheel head.................................. 8 Degrees
Away from wheel head............................... 3 Degrees
Swivel table graduated taper per foot:
Toward wheel head..................................4 1/2
Away from wheel head............................... 2

GRINDING WHEEL HEAD
Grinding wheels regularly supplied:
(Diameter x Face x Hole)...........................12 x 2 x 5
Swivel range: Lower swivel, right left........... 220 Degrees
Upper swivel, right left........... 180 Degrees

HEAD STOCK FOOT STOCK
Head stock spindle taper........................... Jarno No. 10
Foot stock spindle taper........................... Jarno No. 6
Number of work rotation speeds..................... Infinite
Range of work speeds............................... 30 to 600 RPM
Head stock spindle nose(American Lathe Std)....... 5
MISCELLANEOUS
Number of table traverse speeds.................... Infinite
Range of table traverse speeds in/per/min.......... 3 to 280
Accuracy of table reversal at all traverse rates... .001
Table tarry adjustment ‑Infinite (LH RH)........ 0 to 5 Sec
Mechanical hand table traverse:(Rate per revolution at
hand wheel) Slow:..... 1/10 Rapid................ 1
Distance from floor to work centers................ 46 1/2
Automatic infeed at table reversal: (Diameter reduction)
Minimum............... .0001 Maximum............ .0025
Minimum movement necessary to reverse the table.... 1/16
Wheel head movement per turn of hand wheel:
Minimum............... .0005 Maximum............ .050
Minimum infeed increment in terms of diameter reduction:
....................................................0001

POWER REQUIREMENTS
Wheel head motor........ 3HP Head stock motor.... 1/3 HP
Wheel head motor................................... 1765 R.P.M.
Hydraulic pump motor.... 2HP Coolant pump motor.. 1/8 HP

EQUIPPED WITH
Tarry.
Hyd. table travel.
Traverse feed rates.
Bijur one shot lubrication.
Floor space required.......................... 59 1/2 x 144 1/2
Plunge.
Swing down I.D. spindle.
Tail stock dresser.
Coolant in base.
Live and dead center head stock.
WEIGHT.......................................7,300 Lbs.

* Please note all specifications are approximate.

If for some reason this machine doesn't fit your needs, please don't hesitate to ask about many other 2R Landis Grinders we have in stock.

Specifications are deemed accurate, however, subject to verification or prior sale.
