Used 1967 LANDIS 2R | GRINDERS, CYLINDRICAL – UNIVERSAL

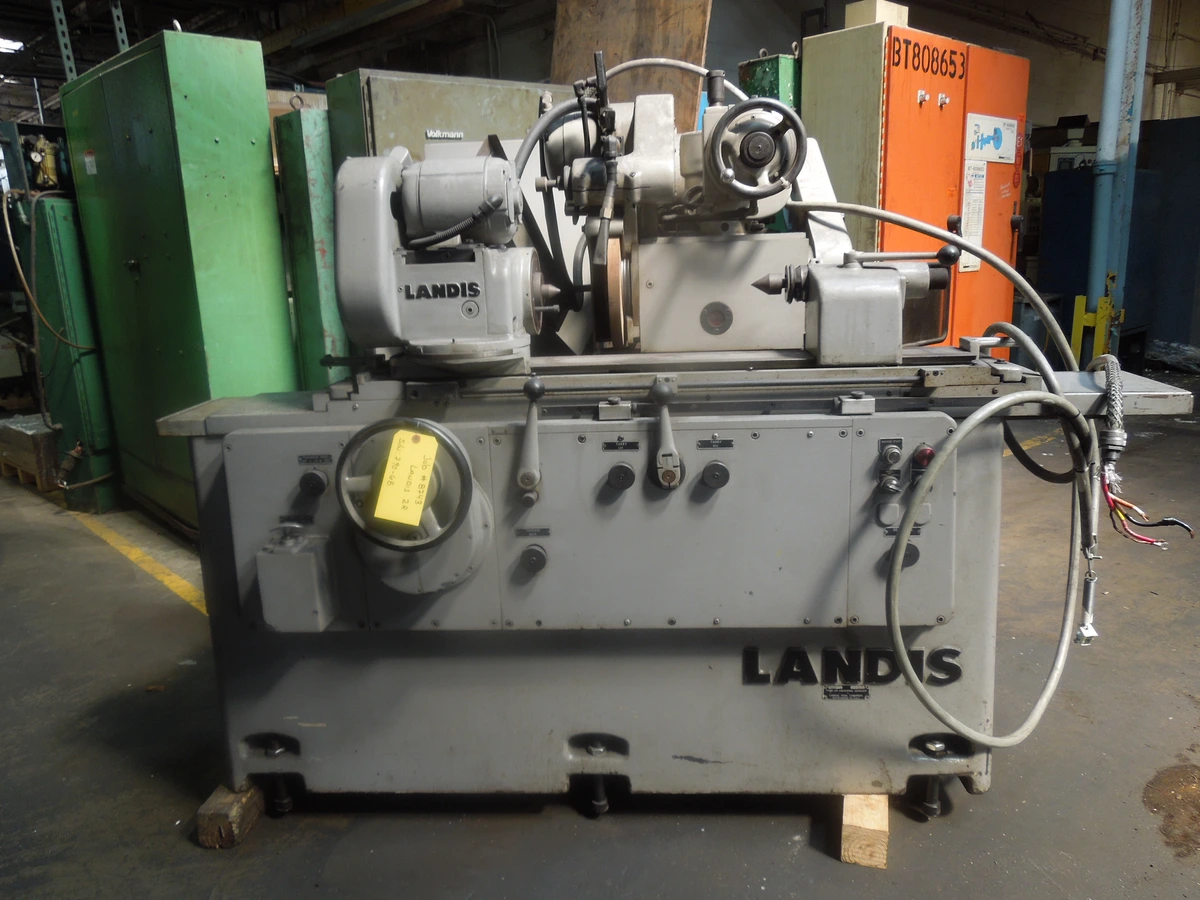

                                                                                               10" x 24" 2R LANDIS UNIVERSAL CYLINDRICAL GRINDER

                                                                                                                     S/N 790-68    Year: 1967

STANDARD CATALOG SPECIFICATIONS

CAPACITY
Maximum swing over table........................... 10 15/16"
Nominal distance between centers................... 25 9/16"
Swivel table graduated to an angle of:
Toward wheel head.................................. 8 Degrees
Away from wheel head............................... 3 Degrees
Swivel table graduated taper per foot:
Toward wheel head.................................. 4 1/2"
Away from wheel head............................... 2"

GRINDING WHEEL HEAD
Grinding wheels regularly supplied:
(Diameter x Face x Hole).......................... 12" x 5" x 1.5"
Swivel range: Lower swivel, right & left.......... 220 Degrees
              Upper swivel, right & left.......... 180 Degrees

HEAD STOCK & FOOT STOCK
Head stock spindle taper........................... Jarno No. 10
Foot stock spindle taper........................... Jarno No. 6
Number of work rotation speeds..................... Infinite
Range of work speeds............................... 30 to 600 RPM
Head stock spindle nose (American Lathe Std)....... 5"

MISCELLANEOUS
Number of table traverse speeds.................... Infinite
Range of table traverse speeds in/per/min.......... 3" to 280"
Accuracy of table reversal at all traverse rates... .001"
Table tarry adjustment   Infinite (LH & RH)........ 0 to 5 Sec
Mechanical hand table traverse: (Rate per revolution at
hand wheel)  Slow:.... 1/10"  Rapid................ 1"
Distance from floor to work centers................ 46 1/2"
Automatic infeed at table reversal: (Diameter reduction)
Minimum............... .0001"   Maximum............ .0025"
Minimum movement necessary to reverse the table.... 1/16"
Wheel head movement per turn of hand wheel:
Minimum............... .0005"   Maximum............ .050"
Minimum infeed increment in terms of diameter reduction:
................................................... .0001"

POWER REQUIREMENTS
Wheel head motor ..... 2 HP  Head stock motor...... 1/3 HP
Wheel head motor...... 1760 R.P.M.
Hydraulic pump motor.. 2 HP  Coolant pump motor.... 1/8 HP

EQUIPPED WITH
Hydraulic traverse table with traverse rate control.
R.H. & L.H. Tarry.
In base coolant pump.
I.D. spindle.
Attached panel.

FLOOR SPACE REQUIRED......................... 59 1/2 x 144 1/2"
WEIGHT....................................... 6,000 Lbs.

Specifications are deemed accurate, however, subject to verification or prior sale.
