GARDNER SDG3-30 822-4

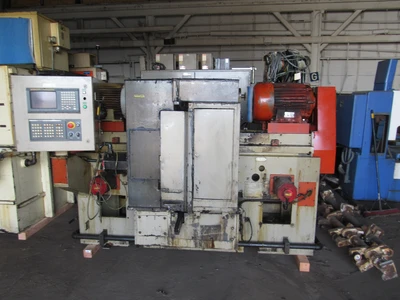

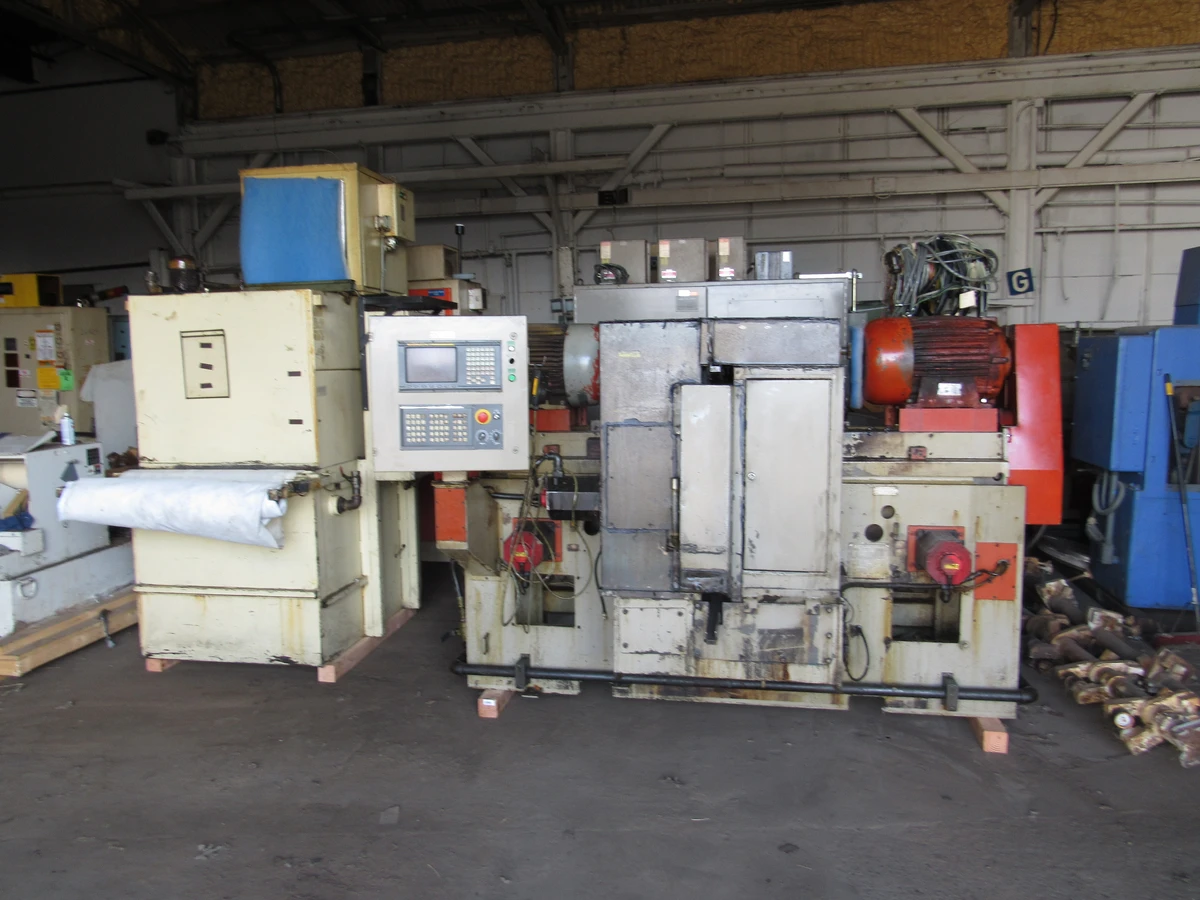

SDG3 30 GARDNER DOUBLE OPPOSED DISC GRINDER

S/N 822-4 Year: 1979

STANDARD CATALOG SPECIFICATIONS
Model SDG 3 30
30"………………................................................... Abrasive disc diameter
3".............................................................................. Abrasive usable thickness
6".............................................................................. Maximum opening between steel wheels
19 1/4"...................................................................... Wheel mounting flanges
1"….......................................................................... Wheel thickness

EQUIPMENT & FEATURES
GE Fanuc Power Mate CNC Control
(2) 30 H.P. Spindle motors.
(2) 30" Diameter wheels.
Electric swing arm dresser.
Fanuc Servo On Spindle Feeds
Manual and auto cycle.
Stand alone electrical panel.
Trabon lubrication.
Fanuc Servo Driven Rotary Carrier

Specifications are deemed accurate, however, subject to verification or prior sale.
