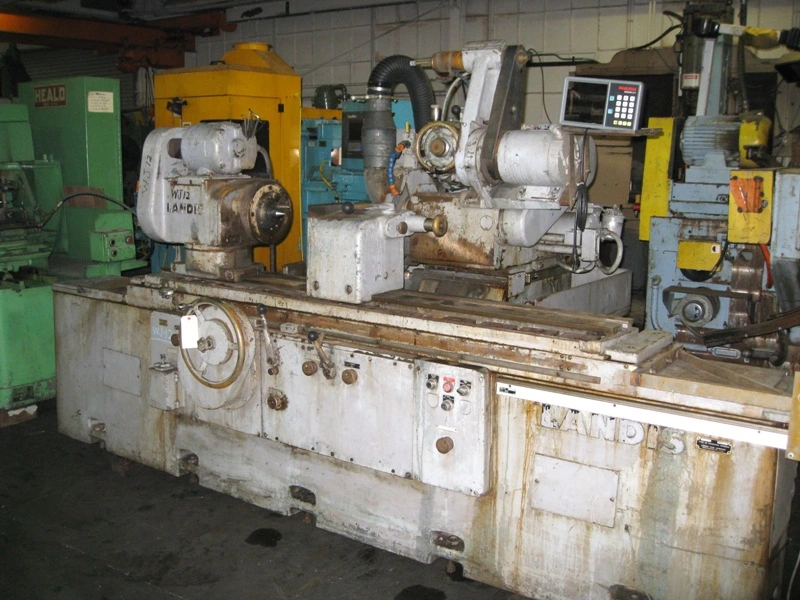

18 x 48 3R LANDIS UNIVERSAL CYLINDRICAL GRINDER

18 x 48 3 R LANDIS UNIVERSAL CYLINDRICAL GRINDER

S/N LT-840-81Year: 1976

STANDARD CATALOG SPECIFICATIONS
Nominal work swings................................. 18
Nominal distances between work centers.............. 48
Maximum work swing diameter standard machine
will grind with full size standard wheel............ 19 1/4
Minimum diameter wheel to grind zero diameter
work on centers..................................... 9 1/4
Coolant tank capacity, gallons...................... 40
Hydraulic tank capacity, gallons....................25 1/2
Height from floor to work center line................ 45 1/4

WORKCARRIAGE
Traverse speed, inches per minute................... 2 to 240
Traverse per turn of hand wheel-slow.............. 0.100
-fast.............. 0.750
Center rest capacity................................ 1 - 7
Work rest capacity.................................. 1/2 - 7

WHEEL HEAD WHEEL FEED
Grinding wheel size...........................14 x 1 1/2 x 5
Grinding wheel head swivel range-upper............ 180 Deg.
-lower............ 60 Deg.CW
30 Deg.CCW
Grinding wheel spindle speeds,RPM.................. 1720-2185
Automatic in feed at table reversal on dia........... 0.0002 to
0.004
Maximum distance wheel center line to work
center line..........................................18- 23 7/16
Minimum distance wheel center line to work
center line..........................................3
Work diameter reduction per revolution of
hand wheel..........................................0.100
Work diameter reduction per revolution of
fine feed knob (Hydraulic In feed Machines).......... 0.001
Maximum hydraulic feed on diameter for
hydraulic in feed machines...........................0.090
Rapid in feed stroke for hydraulic in feed
machines...........................................18 - 1 1/2
Internal spindle speed,rpm......................... 15,000

HEAD STOCK FOOTSTOCK
Head stock work center..............................#14 Jarno
Foot stock work center.............................. #10 Jarno
Foot stock center movement by.................. Lever hand wheel
Work speedsRPM-LowRange.........................12 to 72
-HighRange........................60 to 360
Diameter hole through head stock spindle............ 1 7/16
Head stock swivel range............................. 120 Degrees
Head stock spindle nose............................. 6A-2

ELECTRIC MOTORS
Wheel drive motor...................................3 HP
Work drive motor.................................... 3/4 HP
Hydraulic oil pump generator drive motor.......... 2 HP
Internal fixture motor.............................. 1 HP
Coolant pump motor................................. 1/3 HP
Internal fixture motor.............................2 HP
Wheel spindle lubrication pump motor................ 1/4 HP
Floor space required................................78 x 169
Weight of machine,net..............................14,500 lbs.

EQUIPMENT FEATURES
Hydraulic table travel.
Tarry L R.
Variable speed head stock.
Tail stock dresser.
New style swing down I.D. attachment.
Rapid wheel head advance.
Attached electrical.
Coolant in base.
