HEALD 361 39478

361-30” HEALD ROTARY SURFACE GRINDER

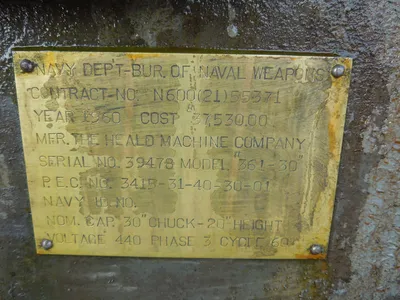

S/N 39478

STANDARDCATALOG SPECIFICATIONS
Magneticchuck face diameter....................... 30
Swinginside coolant pan with 30 chuck............ 27
Verticalrange (full wheel) with 30 chuck......... 12
Convex.............................................17 Degrees
Concave............................................10 Degrees
30Chuck.......................................... 32 ‑ 85 RPM
Tablespeeds ‑ Rapid traverse...................... 20 FPM
Rapidtraverse..................................... 0 ‑ 15 FPM

MOTOR CONTROLS: 15 HP, 220/440/3/60 Cycle, 1760 RPM

OVERALLDIMENSIONS
Floorspace with coolant tank...................... 115 x 79
Approximatenet weight............................. 12,900 lbs.

EQUIPPEDWITH
30Diameter fork pull mag chuck Convex ‑Concave
14Diameter wheelCompensation
11/2 Wide wheel faceHydraulic table
Forkpattern chuck Tripdogs
Attachedelectrical Hydraulic unit
Abovethe wheel guard dresser
Convertedchuck drive w/ electric motor for speed control

Specifications are deemed accurate, however, subjectto verification or prior sale.
