Used 1973 LANDIS 2R | GRINDERS, CYLINDRICAL – PLAIN ANGLE HEAD

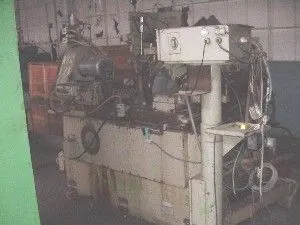

           6 X 18 LANDIS MODEL 2R ANGLE HEAD GRINDER
                          30 DEGREES
                  S/N 859?10     YEAR:  1973
STANDARD CATALOG SPECIFICATIONS
Nominal work swings..................................... 6"
Maximum work swing over table........................... 6 31/32"
Nominal distances between centers....................... 18"
Maximum work swing & diameter standard machine will grind w/full size standard wheel on straight wheel head machine w/hydraulic infeed stroke as noted................................ 6"? 2" H.I.
Minimum diameter wheel to grind zero dia.
work on centers on straight wheelhead machine........... 15"
Maximum work swing and diameter standard machine will grind with full size standard wheel on angle wheel head machine with hydraulic in feed stroke as noted.
Maximum diameter wheel to grind zero diameter work
on centers on angle wheelhead machines.................. 15"
Hydraulic tank capacity, gallons........................ 19"
WORK CARRIAGE
Traverse speed ? Inches per minute
All lengths thru 72\" ................................... 2 to 240
Traverse speed per turn of hand wheel
Slow.................................................... 0.100"
Fast.................................................... 1.000"
Work rest capacity............................ 1/4" to 2 1/2"?6"
                                               1/4" to 4" ? 10"
WHEELHEAD & WHEELFEED
Grinding wheel size ? standard.......................... 24"x10"ID
Grinding wheel spindle speeds, RPM...................... 1000/1271
Grinding wheel minimum dia. of worn wheel............... 15"
Hydraulic rapid infeed: Standard maximum................ 2"
                        Standard minimum................ 1/2"
Hydraulic rapid infeed ? Angle
Wheelhead machine:  Maximum ............................ 2"
                    Minimum ............................ 1/2"
ELECTRIC MOTORS
Wheel drive motor ? H.P. .................... 10  HP ? 1775 RPM
Work drive motor ? H.P. ..................... 1/2 HP ?  900 RPM
Wheel spindle lubrication motor H.P. ........ 2
ELECTRIC MOTORS
Hand table rack and gear
Dead center work head
Hyd. tail stock
Plunge
Behind the wheel dresser (Tru-Form)
Taper adjustment on table
ADDITIONAL FEATURES
Allen Bradley A.C. Servo 1391 control table feed
Model 5430 PAC Sci. stepping motor on in feed hyd. plunge
Specifications are deemed accurate, however, subject to verification or prior sale.
