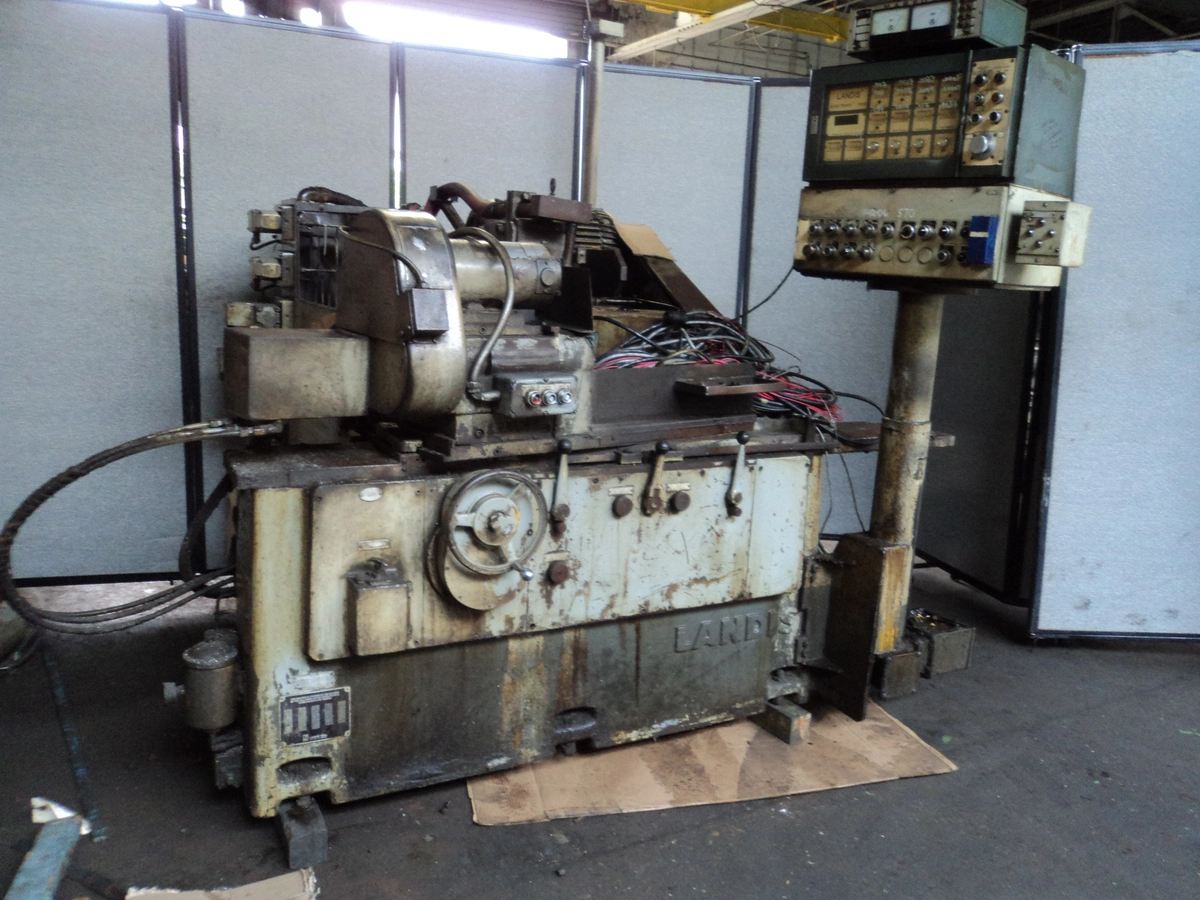

10 x 18 LANDIS 2R PLAIN CYLINDRICAL GRINDER

10 x 18 LANDIS 2 R PLAIN CYLINDRICAL GRINDER

S/N 859-93 Year: 1979

STANDARD CATALOG SPECIFICATIONS
Nominal work swing ...............................10
Nominal distances between work centers ........... 20
Minimum diameter wheel to grind zero diameter
work on centers.................................. 27
Hydraulic tank capacity -gallons ................ 19

WORK CARRIAGE
Traverse speed, per turn of hand wheel:
Slow ................ 0.100 Fast .......... 1.000

HEAD STOCK FOOT STOCK
Work centers..................................... #10 Jarno
Foot stock center movement....................... Lever only
Head stock work speeds RPM
Dead spindle..................................... 94 -154-246-400

WHEEL HEAD WHEEL FEED
Grinding wheel, size (standard)................ 24 x 3 x 8
Grinding wheel, spindle speeds -RPM ........... 1000/1271 RPM
Grinding wheel, minimum diameter of work
wheel.......................................... 10 1/2
Automatic in feed at table reversal on diameter
Machine w/hydraulic in feed..................... 0.0002 to 0.004
Distance wheel center line to work center line:
Hydraulic in feed machine ......Maximum ........ 18
...........................................Minimum........ 7 1/2
Work diameter reduction per revolution of wheel
feed hand wheel................................ 0.100
Work diameter reduction per revolution of fine
knob:
Hydraulic in feed............................... 0.001
Maximum hydraulic in feed on diameter for
hydraulic in feed machines...................... 0.090
Rapid in feed stroke for hydraulic in feed machine:
Maximum........................................ 2
Minimum........................................ 1/2

ELECTRIC MOTORS
Wheel drive motor.............................. 10 HP
Wheel spindle lubrication pump motor ........... 1/4 HP
Work drive motor............................... 1/2 HP
Hydraulic pump and lubrication drive motor ..... 2 HP

GENERAL DATA
Swivel table graduated inches per foot ......... 4 1/2
Degrees included angle......................... 20
Height from floor to work center line ........... 39 3/4
Net weight .....................................6,700 lbs.

EQUIPMENT FEATURES
Plunge.
Tarry left right.
Attached electrical.
24” O.D. wheel.
Coolant in base.

Specifications are deemed accurate, however, subject to verification or prior sale.
