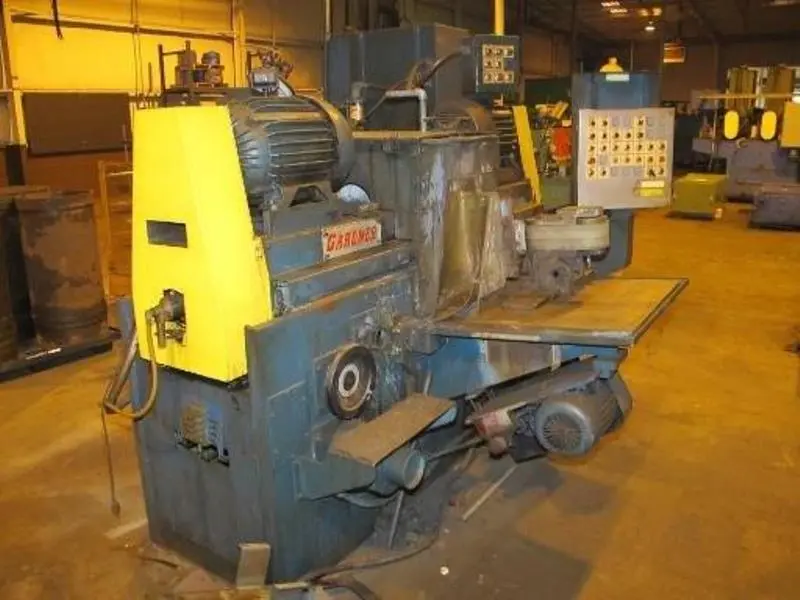

SDG3-26 GARDNER DOUBLE OPPOSED DISC GRINDER

SDG3‑26 GARDNER DOUBLE OPPOSED DISC GRINDER
S/N 870‑5 Year: 1982

STANDARD CATALOG SPECIFICATIONS
Model SDG‑3‑26
26………………...................................................Abrasive disc diameter
3...................................................................Abrasive usable thickness
6...................................................................Maximum opening between steel wheels
19 1/4...........................................................Wheel mounting flanges
1…................................................................Wheel thickness

EQUIPMENT FEATURES
(2) 30 H.P. Spindle motors.
(2) 26 Diameter wheels.
Electric single point dresser.
Rapid and incremental feed to both heads.
Manual and auto cycle.
Attached electrical panel.
Belt style thru feed with upper lower guides.

Specifications are deemed accurate, however, subject to verification or prior sale.
