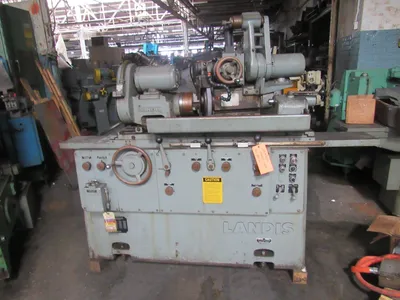

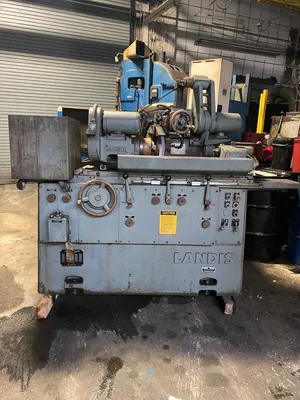

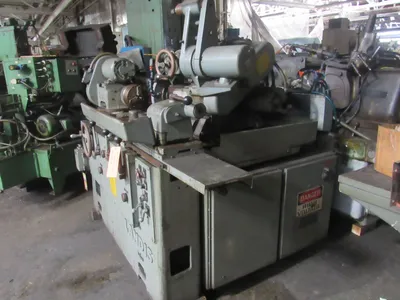

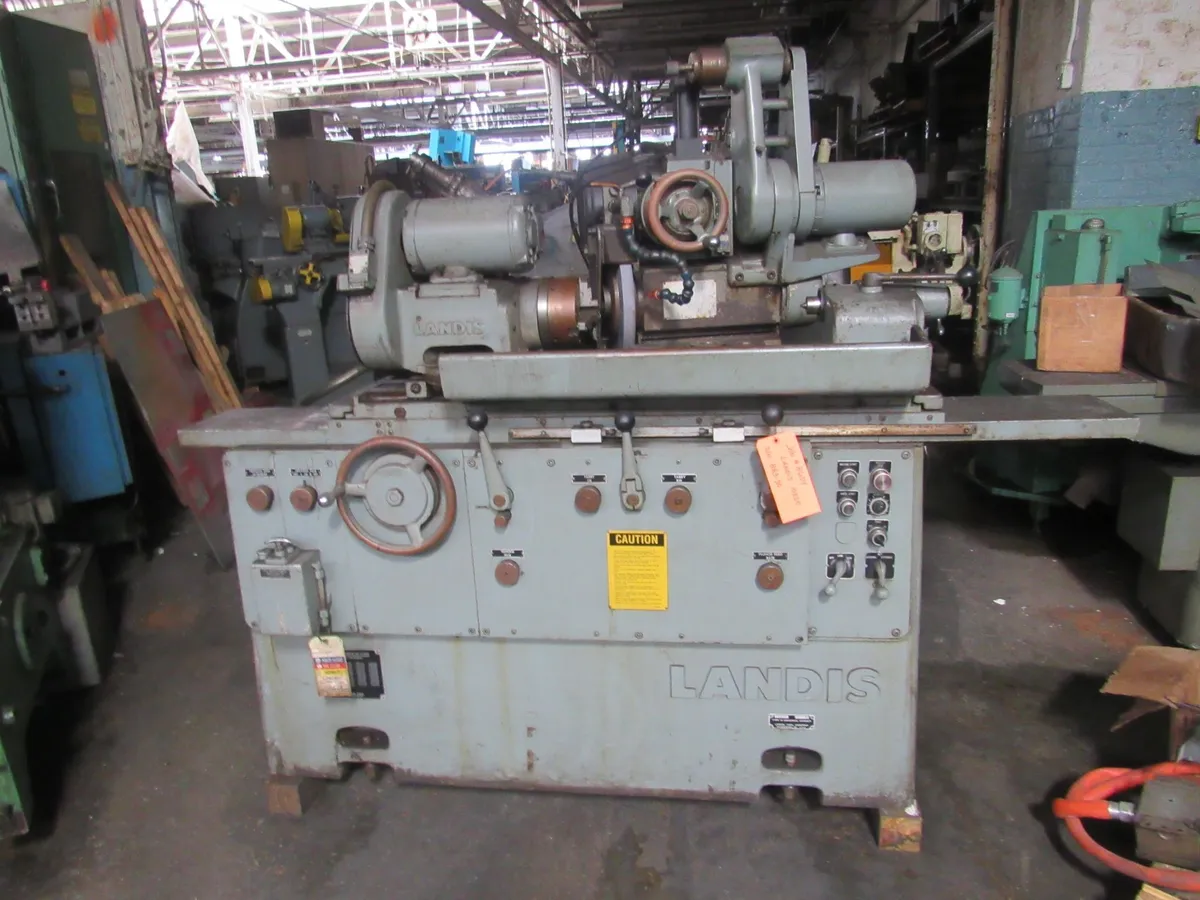

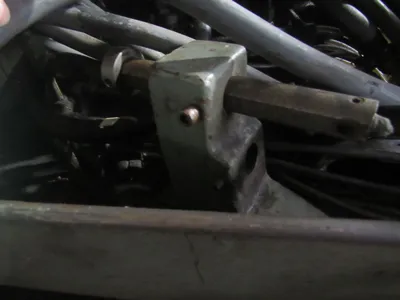

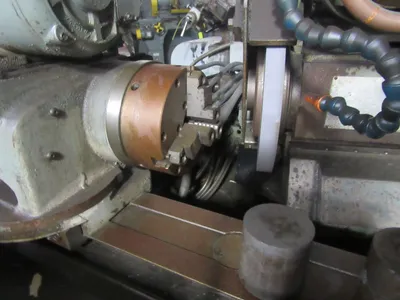

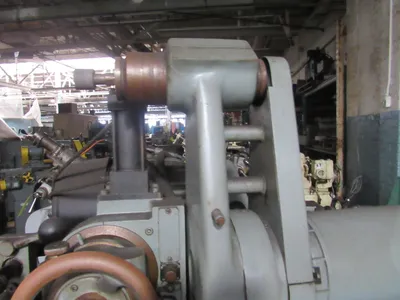

LANDIS 1R 10 X 20 UNIVERSAL

1R LANDIS 10x20 CYLINDRICAL UNIVERSAL GRINDER

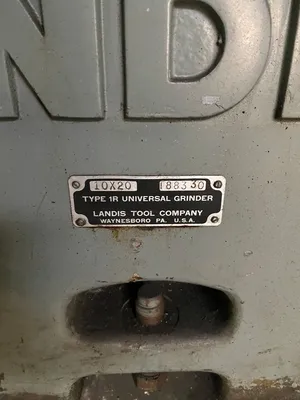

S/N 883-30 Year: 1981

STANDARD CATALOG SPECIFICATIONS
Nominal work swing................................. 10
Nominal distance between work centers.............. 20
PRIVATE Maximum diameter work standard machine will grind with full size standard wheel.................................... 10 7/8tc� \l 1 Maximum diameter work standard machine will grind with full size standard wheel........... . . . . . . . . . .. . . 10 7/8\
PRIVATE Minimum diameter wheel to grind zero diameter work on centers........................................... 10 1/2tc� \l 1 Minimum diameter wheel to grind zero diameter work on centers........................... . . . . . . . . �10 1/2\
Floor space required............................... 106 x 50
Coolant tank capacity in gallons................... 19
Hydraulic tank capacity in gallons................. 9 1/4
Height from floor to work centerline............... 41 3/4

WORK CARRIAGE
Traverse speed, inches per minute.................. 2 ‑ 240
Carriage traverse per turn of hand wheel........... 0.200
Swivel graduated, inches per foot.................. 4
Degrees included angle............................. 20 Degrees
Work rest capacity................................. 1/4 to 4

HEAD STOCK FOOT STOCK
Head stock workcenter............................. #10 Jarno
Foot stock workcenter............................. # 6 Jarno
Head stock swivel range............................ 120 Degrees
Work speeds, RPM.................... 60, 90, 150, 225, 400, 600
Diameter hole thru spindle......................... 1
Head stock spindle nose............................ 5A2

WHEEL HEAD WHEEL FEED
Grinding wheel size...........................12 x 1 x 5
Minimum diameter of worn wheel................ 7 1/2
Maximum distance wheel centerline to work
centerline for machines w/hydraulic infeed.... 12 1/2
Minimum distance wheel centerline to work
centerline with foot stock removed............3 1/2
Work diameter reduction pe rrevolution of
handwheel.................................... .100
Per revolution of fine feed knob.............. 0.001
Minimum feed graduations on diameter.......... 0.000050
Maximum hydraulic infeed on diameter
For machines with hydraulic infeed............ 0.090
Rapid infeed stroke........................... 1
Grinding wheel head swivel range.............. 90 Degrees each

ELECTRIC MOTORS
Wheel drive motor............................. 3 HP - 1735 RPM
Work drive motor.............................. 1/3 HP 220/440 V
Wheel spindle lubrication motor............... 1/4 HP
Coolant pump motor............................ 1/10 HP
Hydraulic pump motor for machines w/hydraulic
traverse and/or hydraulic infeed.............. 1 HP
Internal grinding spindle motor............... 1 HP

EQUIPPED WITH
L.H. R.H. Tarry.
Hydraulic table travel.
Swivel head stock.
Universal head stock.
Bijur one shot lube.
Coolant pump and tank.
Plunge.
Swing down ID spindle.

This is one of many Landis R series we have in stock. If this machine doesn't fit your requirements, please ask your salesman about other machines.

Specifications are deemed accurate, however, subject to verification or prior sale.
