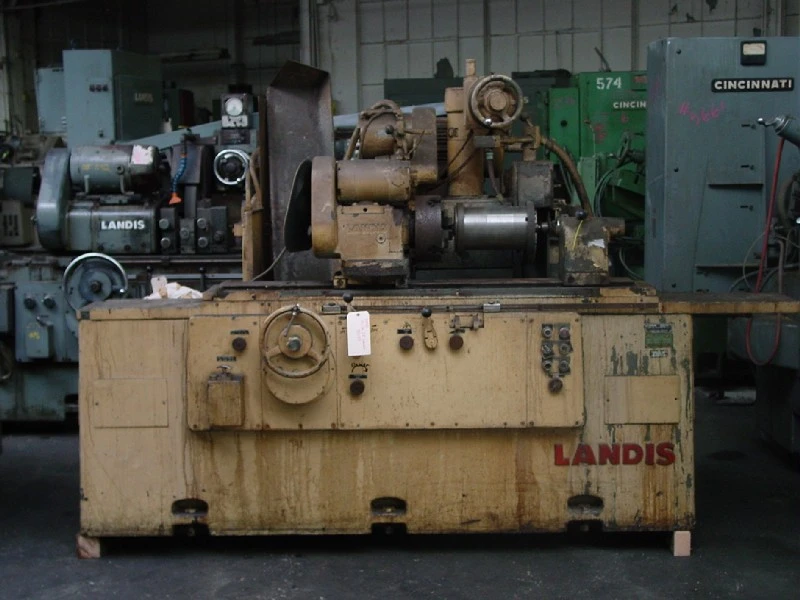

14 x 36 2R LANDIS UNIVERSAL CYLINDRICAL GRINDER

14 x 36 2R LANDIS UNIVERSAL CYLINDRICAL GRINDER

S/N 883-89 Year: 1981

STANDARD CATALOG SPECIFICATIONS
Nominal work swings................................ 14
Nominal distances between work centers............. 36
Maximum work swing diameter standard machine will grind with full size standard wheel.......................... 14 31/32
Minimum diameter wheel to grind zero diameter work on centers........................................... 9 Degrees
Coolant tank capacity, gallons..................... 28
Hydraulic tank capacity, gallons................... 25 1/2
Height from floor to work centerline............... 42

WORK CARRIAGE
Traverse speed, inches per minute.................. 2 to 240
Traverse per turn of hand wheel slow............. 0.100
fast............. 1.000
Center rest capacity............................... 1/4 2
Work rest capacity................................. 1/4 4

WHEEL HEAD WHEEL FEED
Grinding wheel size................................ 16 x 2 x 5
Grinding wheel head swivel range upper........... 180 Deg.
- lower........... 60 Deg. CW
30 Deg. CCW
Grinding wheel spindle speeds, RPM................. 2005 2533
Automatic infeed at table reversal on dia.... 0.0002 to 0.004
Maximum distance wheel centerline to work
centerline....................................... 10 15 1/2
Minimum distance wheel centerline to work
centerline....................................... 1 1/2
Work diameter reduction per revolution of
hand wheel....................................... 0.100
Work diameter reduction per revolution of fine feed knob (Hydraulic Infeed Machines)..................... 0.001
Maximum hydraulic feed on diameter for hydraulic infeed machines........................................ 0.090
Internal spindle speed, RPM...................... To be determined

HEAD STOCK FOOT STOCK
Head stock work center........................... #10 Jarno
Foot stock work center........................... # 6 Jarno
Foot stock center movement by.................... Lever only
Work speeds RPM Low Range...................... 30 to 150
High Range..................... 120 to 600
Diameter hole through head stock spindle......... 1
Head stock swivel range.......................... 120 Degrees
Head stock spindle nose.......................... 5A 2

LENGTHS BETWEEN CENTERS 36
Swivel table graduated, inches per foot.......... 4 1/2
Swivel table graduated, degrees included angle... 20 Deg.

ELECTRIC MOTORS
Wheel drive motor................................ 3 HP
Work drive motor................................. 1/3 HP
Hydraulic oil pump generator drive motor....... 1/4 HP
Internal fixture motor........................... 1 HP
Wheel spindle lubrication pump motor............. 1/4 HP

EQUIPMENT FEATURES
Hydraulic table travel.
Swing down internal grinding attachment.
Wheel guard mounted hydraulic truing attachment.
Bijur one shot lube.
Swing down I.D. attachment.
