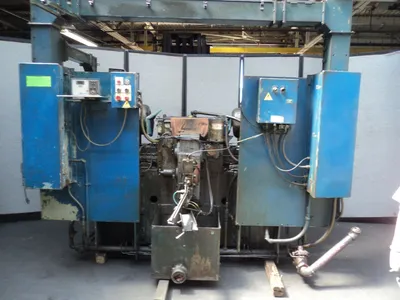

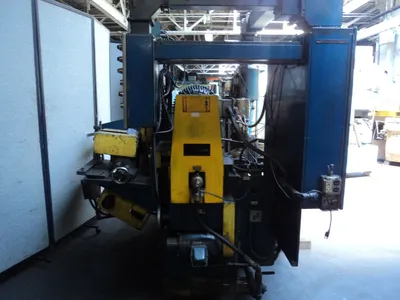

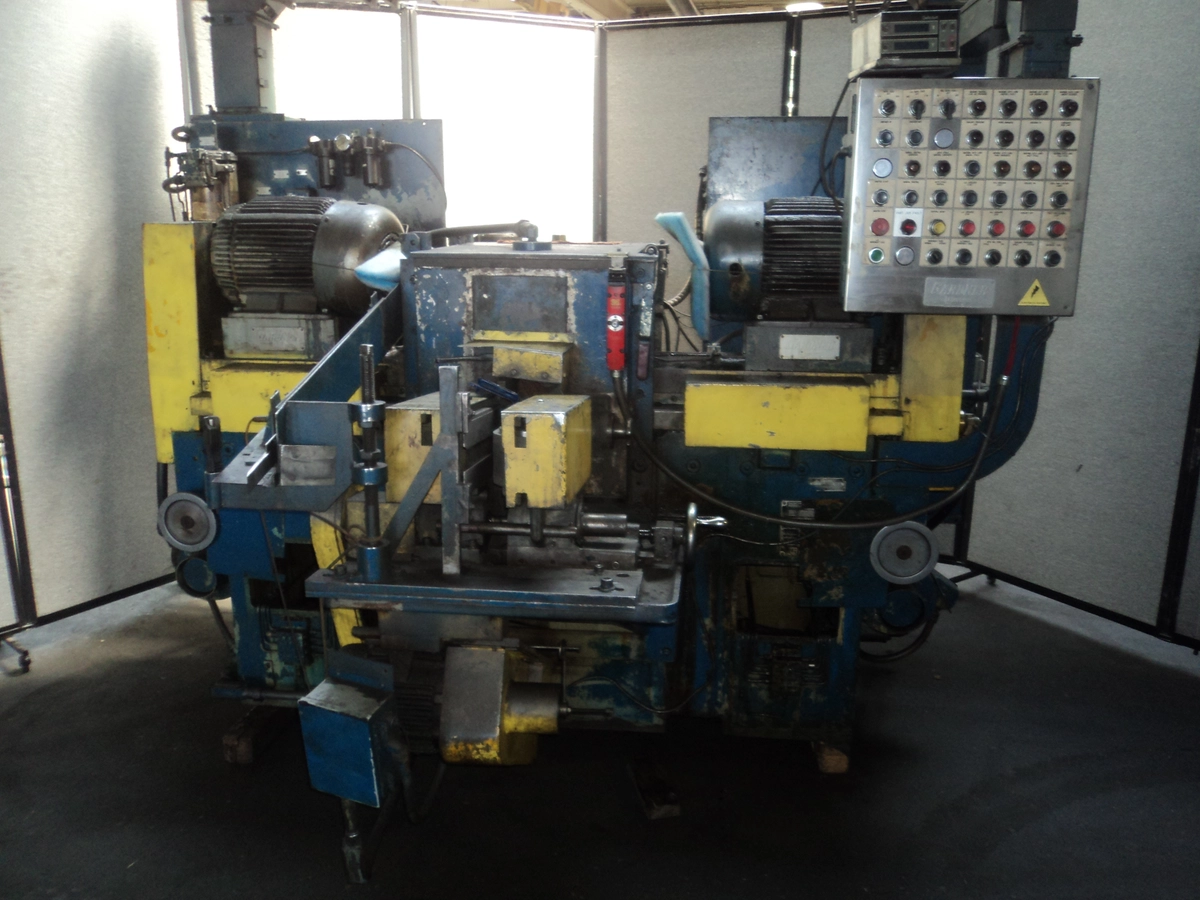

SDG2-23 GARDNER MODEL PRECISION DOUBLE DISC GRINDER

SDG2-23 GARDNER MODEL PRECISION DOUBLE DISC GRINDER

S/N 893-42 Year: 1991

STANDARD SPECIFICATIONS

Abrasive wheel O.D………………………..……………………… up to 23”
Abrasive thickness……………………………..………………….. 3”
Opening between wheels…………………………………………. 12 1/8”
Wheel mounting flange O.D……………………………………… 14 7/8”
Wheel mounting flange thickness………………………………… 1 3/8”
Wheel increment feed rate………………………………………… 0.000050”

ELECTRICAL CONTROLS

(2) 20 HP, 1755 RPM, AC, 3 Phase, 60 Cycle Spindle Motors
¼ HP, AC, 3 Phase, 60 Cycle Dresser Arm Motor
1.5 HP, AC, 3 Phase, 60 Cycle Coolant Motor

EQUIPPED WITH

Belt thrufeed set up
Carrier Start and Stop
Motorized Swing Up Dresser
Mechanical Abrasive Slide Infeed
Digital Counter Wheelhead Positioning
Automatic/Manual Cycles
Contour Wheelhead Positioning
Forward Reverse
Auto Cycle
Rapid Feed
In and Out for L.H. and R.H. Heads
Increment Feed L.H.
R.H. Alternate
Normal and Repeat
Coolant system
Control Gauge Auto Size Gauging System

Specifications are deemed accurate, however, subject to verification or prior sale.
