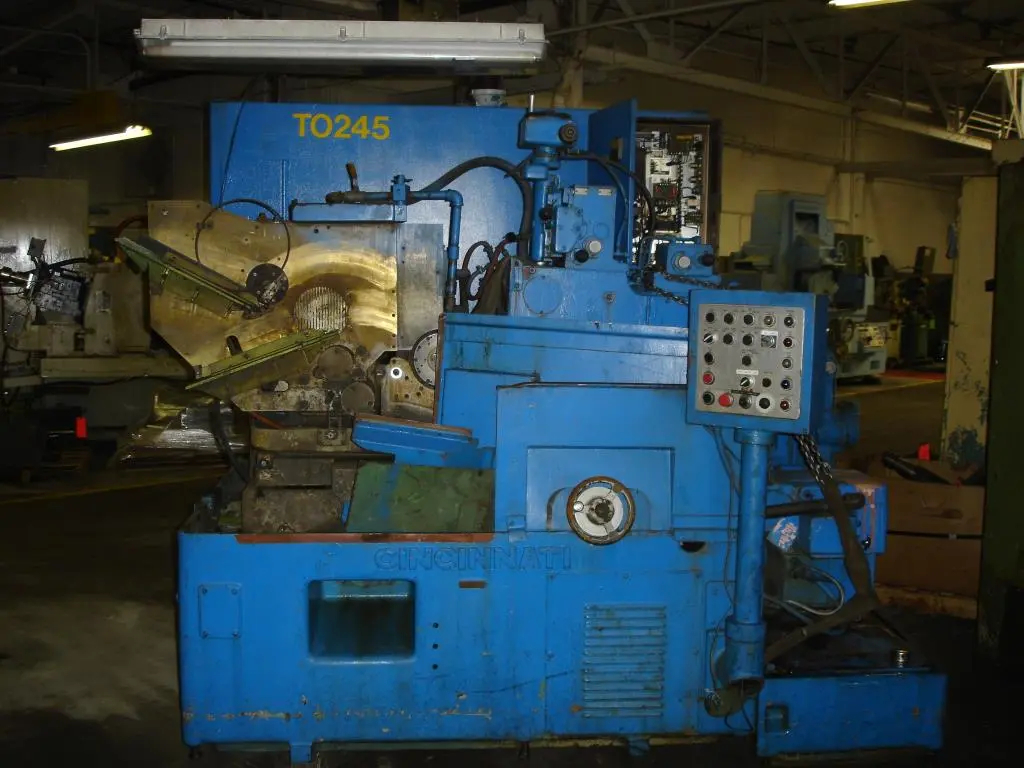

CINCINNATI #1 MICROCENTRIC 8T1HN5S-6

#1 DE CINCINNATI GRINDER

S/N 8T1HN5S-6Year: 1966

STANDARD CATALOG SPECIFICATIONS

CAPACITY
Work diameter range (Fullwheel)................ 0 ‑ 4
Wheel head adjustments
Rapid advance movement (Min‑Max).................187 ‑ 1.50

INFEED MOVEMENT (MAX)
Dual rate(standard)............................ .06
Triple rate (extracost)........................ .250
Infeed rate adjustment..........................0.005 to 1/min.

TARRY ADJUSTMENT................................0.6 to 12 sec.

HEADSTOCK ADJUSTMENTS
Swivelplate.................................... 0 to 45 degrees
PRIVATE Head stock movement parallel to swivel plate... 4.25tc� \l 1 Head stock movement parallel toswivel plate..... 4.25\
Vertical movement on eccentrically
mounted rollers under cross slide............... .050
Longitudinal movement of headstock
movement through cross slide screw.............. 7.50
Sub slide movement‑perpendicular to
cross slide movement............................ 4.88
GRINDING WHEEL................. 20 Dia. x 2 Wide x 12 Hole

MOTORS DRIVES
Grinding wheel motor.......................... 5 HP,
..............................................@ 1500 or 1800 RPM
Head stock (HP [kw]/RPM)...................... 1 HP (0,7kw)
..............................................@ 750 or 900 RPM
Hydraulic pump motor.......................... 3 HP (2,2kw)
Cutting fluid pump motor...................... .25 HP (0,2kw)
Grinding wheel head stock drives............ Multi. V belts

CUTTING FLUID SYSTEM
Capacity of cutting fluid pump................ 30 GPM
Capacity of cutting fluid reservoir........... 44 gallons

HEIGHT OF GRINDING WHEEL
Distance from floor to centerline............. 47.38

FLOOR SPACE
With cutting fluid tank....................... 94.75 x 81.75

SHIPPING DATA
Net weight.................................... 11,850 lbs.
Shipping weight(domestic).................... 12,800 lbs.
Shipping weight(export)...................... 13,000 lbs.
Size of case(export)......................... 114 x 84 x 84

EQUIPMENT FEATURES
Attached electrics.
Swiveling head stock.

G.C.H. carries many chucking grinders in stock. Call for more
details.

Specifications are deemed accurate, however, subject to verification or prior sale.
