KOYO KVD-300C

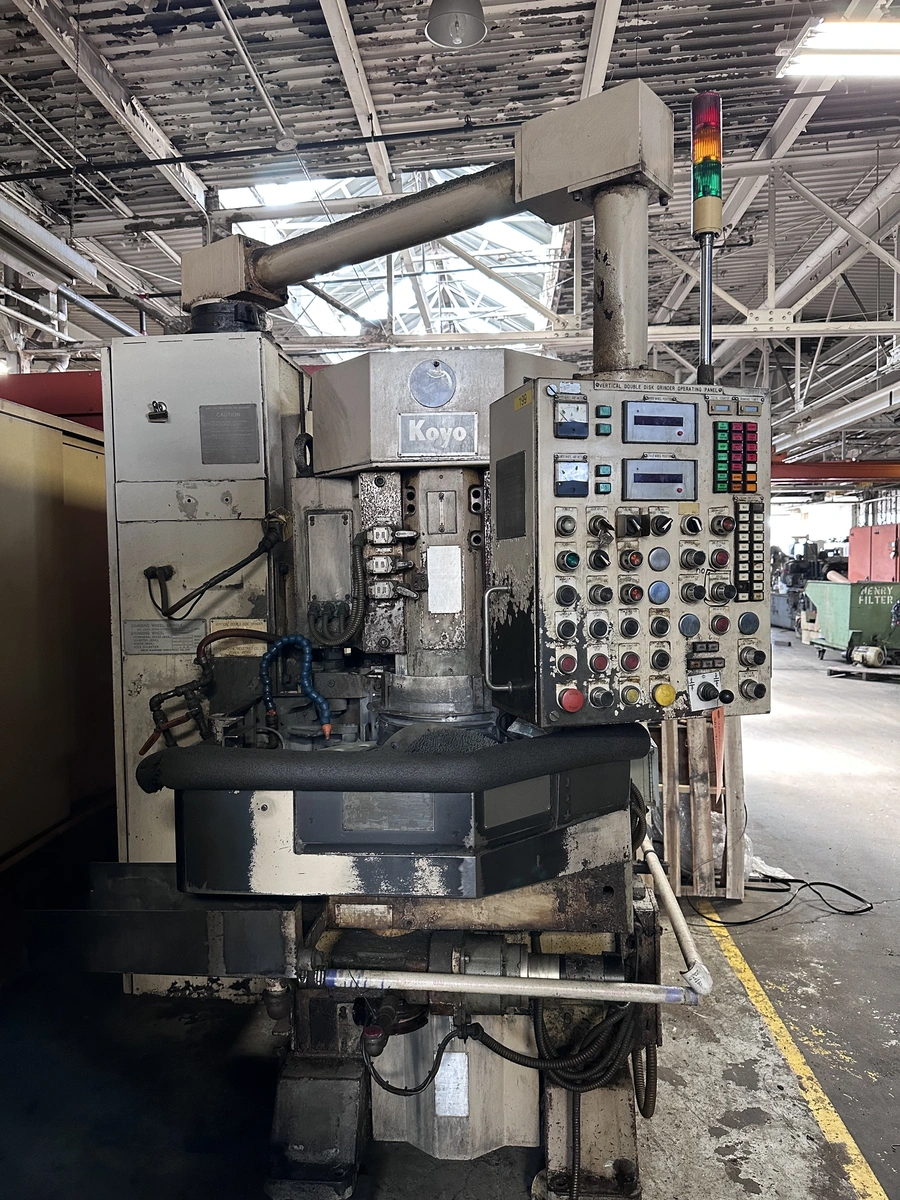

KOYO KVD-300C CNC VERTICAL DOUBLE DISC GRINDER

S/N 9105VD-474 YEAR: 1991

STANDARD CATALOG SPECIFICATIONS
Grinding Capacity Outer Diameter...............4”
Grinding Capacity Width........................2”
Grinding Wheel OD x Thickness..................12”x1.969”
Max Distance Between Wheels....................2”
Grinding Wheel Drive (Upper Lower)...........10 HP
Carrier Drive..................................1 HP
Carrier Disc Diameter..........................28”
Weight.........................................19,800lbs.

EQUIPPED WITH
Controls for variable grinding speeds for the top bottom grinding wheels.
Variable speed carrier.
Compensation intervals to both wheels.
Dresser arm advance return speeds.
17” Rotary carrier.

Specifications are deemed accurate, however, subject to verification or prior sale.
