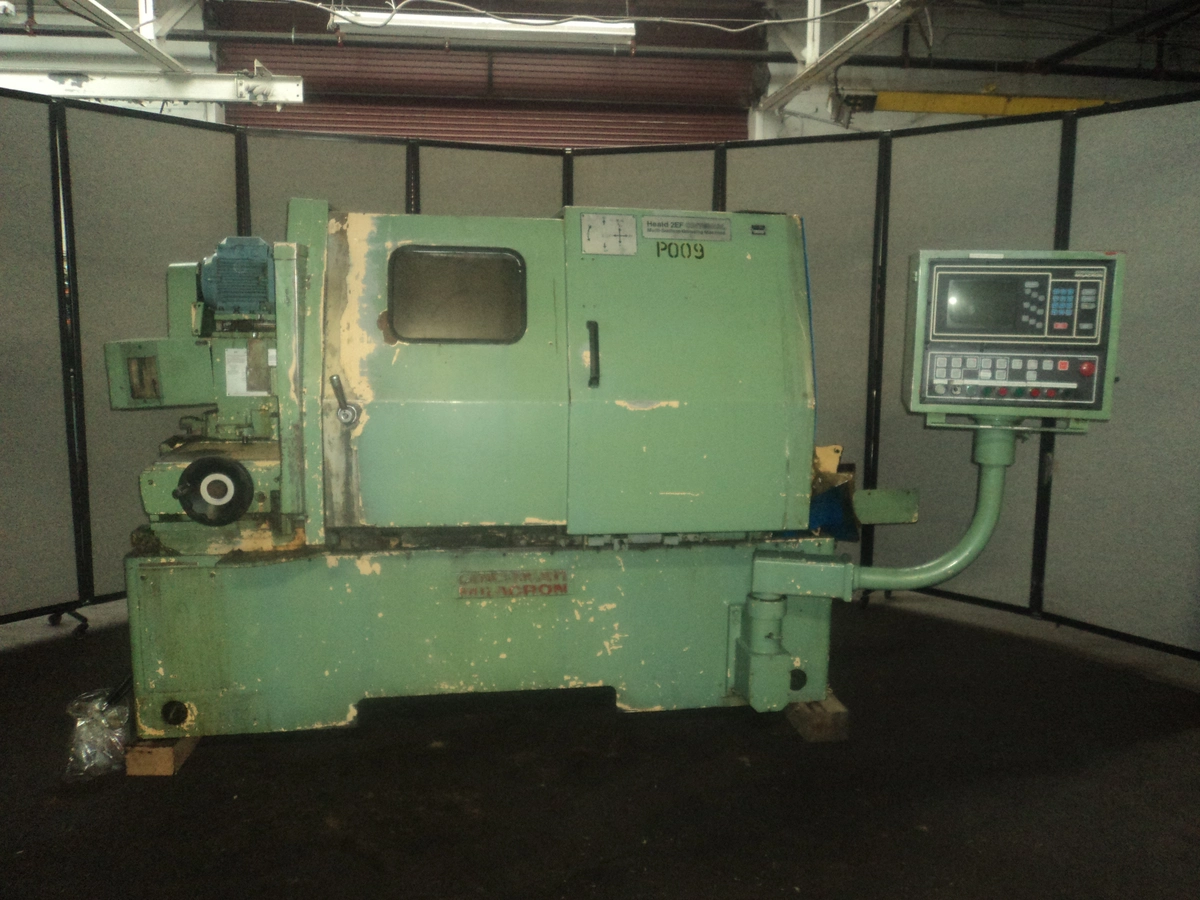

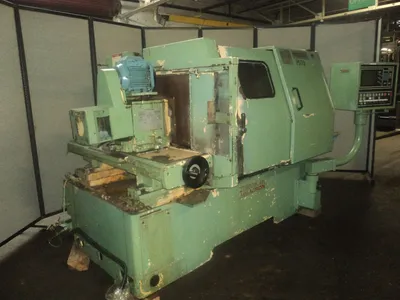

2EF 700G CINCINNATI MILACRON/HEALD CINTERNAL CNC MULTI-SURFACE INTERNAL GRINDER

2EF 700G CINCINNATI MILACRON/HEALD CINTERNAL CNC
MULTI-SURFACE INTERNAL GRINDER

S/N 912027U83-0109 Year: 1983

STANDARD SPECIFICATIONS
Work head capacity………………………………………. 1,000 lbs.
Swing over table – maximum…………………………….. 24"
Swing with work head @ 90 degrees…………………….. 17"
Grinding stroke – maximum……………………………… 16"
Table longitudinal travel..………………………………… 12"
Wheel head cross slide travel…………………………….. 6"
Work head cross slide travel..…………………………….. 16"
Work head swivel angle – maximum…………………….. 0 – 90 degrees
Work head spindle speeds – reversible…………………… 30 to 999 RPM
Feed rate – infinite range………………………………..… .001 to 999 IPM
Work head spindle motor………………………………..… 10 HP
Work head chuck motor…………………………………… 4.5 HP
Hydraulic motor – HP/RPM……………………………..… 1/3 HP
Overall dimensions – W x D………………………………. 65" high x 173" x 113"
Weight – approximately…………………………………… 12,000 lbs.

EQUIPPED WITH
Cross sliding table.
24" Swing.
Ball screws / DC Drives.

Specifications are deemed accurate, however, subject to verification or prior sale.
