BLANCHARD 18-36 9335

                                                                           18-36 BLANCHARD HIGH POWERED VERTICAL ROTARY SURFACE GRINDER

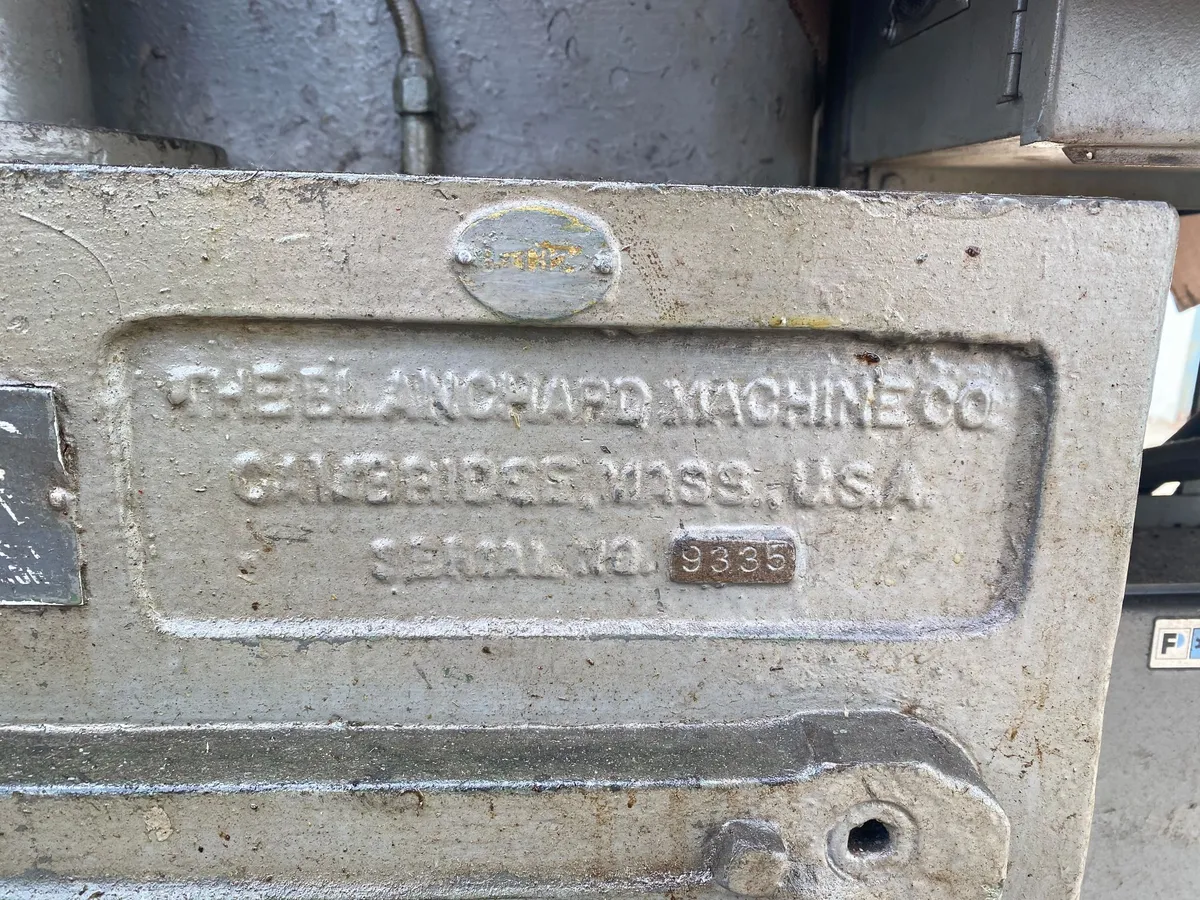

                                                                                                                               S/N 9335

STANDARD CATALOG SPECIFICATIONS

RANGE
36" diameter x 12" high over 36" chuck with new cylinder wheel   11" high with Blanchard segment wheel.

WORKTABLE
Blanchard one piece steel magnetic chuck, 36" diameter with 5/8" pole spacing.  Chuck has 2" center hole and nineteen 3/8" tapped holes in 36" chuck.  Maximum weight of work load 3,000 lbs.

WHEEL
18" x 5" x 15" cylinder or 18" x 5" x 14" sectored (both wire banded) or 18" Blanchard segment wheel. Wheel head for 20" wheel can be furnished on special order (recommended for grinding to center of work over 32" diameter).  Segmented quoted optional.

SPEEDS
Wheel:  720 R.P.M. on 60 cycle; 750 R.P.M. on 50 cycle
Chuck:  6, 9, 12, 18, 25, 33 R.P.M.
        (On 50 cycles chuck speeds are 5/6 of these.)

FEED
Vertical down feed of wheel by hand or power.
Power feed:  On 60 cycles approximately .004" to .080", and on 50 cycles approximately .003" to .066" per minute with accurate
automatic stop.  Maximum distance of down feed before stop operates is one turn of dial, .100".  Wheel head has rapid power
rising and lowering, interlocked with feed.

WATER SUPPLY
Easy cleaning tank in base, capacity 150 gallons.
Motor driven centrifugal pump submerged in tank, 1 1/2" discharge pipe, 60 gallons per minute, supplying water inside the wheel and to outside nozzle through 1" pipes.

CURRENT FOR MAGNETIC CHUCK
36" diameter:  110 volts, D.C.     7.2 amps, 792 watts
               220 volts, D.C.     3.5 amps, 792 watts

FLOOR SPACE & HEIGHT
Length 9'3", width 4'11" including control cabinet.
Maximum height 7'7", minimum 6'9".
Height of chuck from floor 35".

WEIGHT
11,800 lbs.

EQUIPMENT & FEATURES
36" Blanchard one piece steel magnetic chuck.
25 H.P. 220/440  3  60 cycle head motor.
Water guards.
Wheel dresser.
Coolant in base.
Segmented wheel chuck.
Load monitor.

Specifications are deemed accurate, however, subject to verification or prior sale.
