ARTER B-24 935

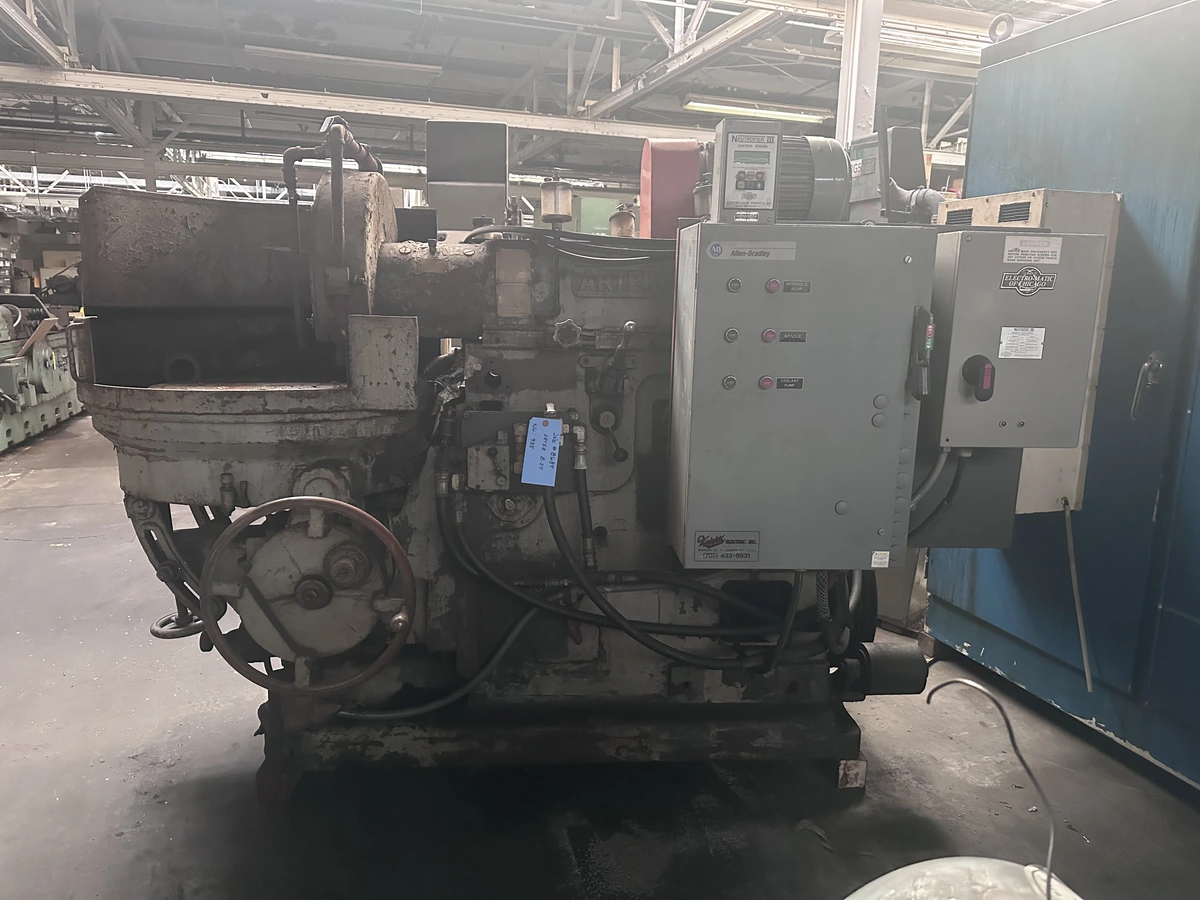

ARTER B-24/30" ROTARY SURFACE GRINDER

S/N 935

STANDARD SPECIFICATIONS
Capacity...............................................30"
Surface diameter of magnetic chuck.....................30"
Greatest swing inside water pan........................34"
Vertical capacity full diameter wheel..................8"
Tilt of work table for convex grinding.................10°
Tilt of work table for concave grinding................10°
Diameter of grinding wheel – 12" hole..................20"
Width of grinding wheel................................2"
Wheel spindle..........................................950 RPM
Wheel spindle drive motor 1800 – 1500 Rpm..............3 HP
Hydraulic drive motor 1200 – 1000 Rpm..................7 1/2 HP
Net weight.............................................9500
Crated weight..........................................10,000
Boxed weight...........................................11,300
Cubic feet – boxed.....................................370
Floor space occupied...................................96" x 87"

EQUIPMENT & FEATURES
Neutrofier II controls.
24” Chuck.
10 HP Spindle motor.
12” OD x 2” wide wheel.
Electromatic chuck controls.
Attached electrical.

Specifications are deemed accurate, however, subject to verification or prior sale.
