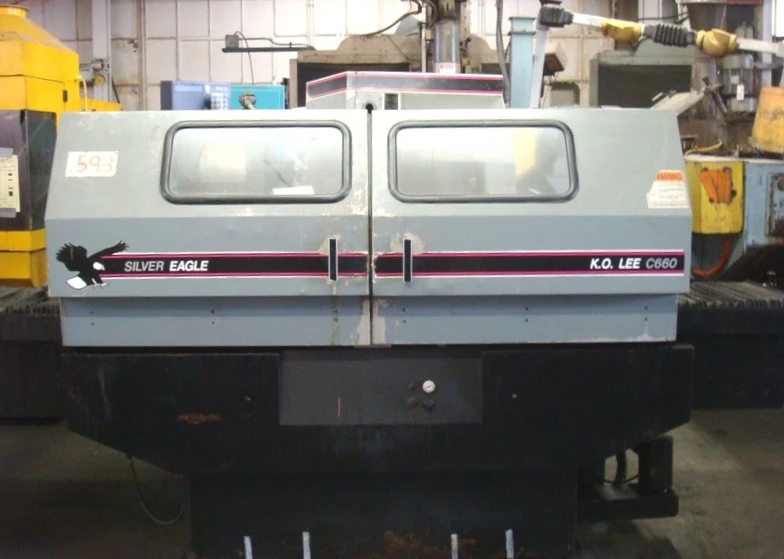

K.O. LEE SILVER EAGLE MODEL 660 CNC UNIVERSAL GRINDER

K.O. LEE SILVER EAGLE MODEL 660 CNC UNIVERSAL GRINDER
S/N C660L2 Year: 1997

STANDARD SPECIFICATIONS

Work Capacity:
Distance between centers………………………………. 25.98
Wheel head rotation……………………………………. /- 30 Degree
Swing over table……………………………………….. 14.17
Maximum weight - between centers……………………. 350 lbs.
- on work head………………………. 180 lbs.

Work Head:
Swivel…………………………………………………… 135 Degree (90 Degree CCW/45DegreeCW)
Speed (variable)...……………………………………….. 30 to 600 RPM
Through hole…………………………………………….. 1.3 I.D.
Center taper……………………………………………… 5 MT
Pilot diameter x length…………………………………… 110 mm diameter x 5 mm

Tail Stock:
Center taper……………………………………………… 4 MT
Maximum stroke………………………………………… 1.25
Pressure adjust in 14 mm………………………………… 20-90 lbs.

Travel:
Maximum table travel - longitudinal………………………. 31.10
Maximum wheel head travel - cross……………………….. 14.17

Wheel Head:
Spindle diameter………………………………………….. 1:5 Taper
Spindle RPM……………………………………………… 1550
Grinding wheel size………………………………………. 16 x 5 x 2

Motors:
Wheel head……………………………………………….. 10 HP
Head stock………………………………………………… 1 HP
Coolant pump……………………………………………… 1/10 HP

Coolant:
Tank capacity……………………………………………… 50 gallons
Flow capacity……………………………………………… 15 gallons/min(unrestricted)

Electrics:
JIC standard………………………………………………. 115V, single phase
230/460V, 3 phase
Total machine power requirement………………………… 10 KVA

General:
Spindle center height to floor…………………………….. 47.24
Overall height…………………………………………….. 87.
Floor space required, mach………………………………. 146.65 x 116.85
Net weight approximate…………………………………. 9300 lbs.

OPTIONAL STANDARD I.D. SPINDLE

Wheel:
Spindle diameter…………………………………………. 3/ft. taper or collet type
Spindle RPM…………………………………………….. to 20000 RPM

Grinding wheel size:
Arbor type………………………………………………. 3 x 1 1/4 1/2 max.
Collet type………………………………………………. 1/2
Head rotation……………………………………………. /- 30 Degree

Motor:
I.D. spindle……………………………………………… 3 HP belt driven

AXIS/SPEED RESOLUTION
The Leematic Control has an Axis Speed/Resolution constant that can be programmed by the operator during machine set up, independently for each axis. This allows tighter positioning resolution, but at a slower speed.The flow chart will exhibit typical speed that may be achieved with this control.
