Used 2002 CHEVALIER FSG 1228 ADII | GRINDERS, SURFACE, RECIPROCATING TABLE - HORIZONTAL

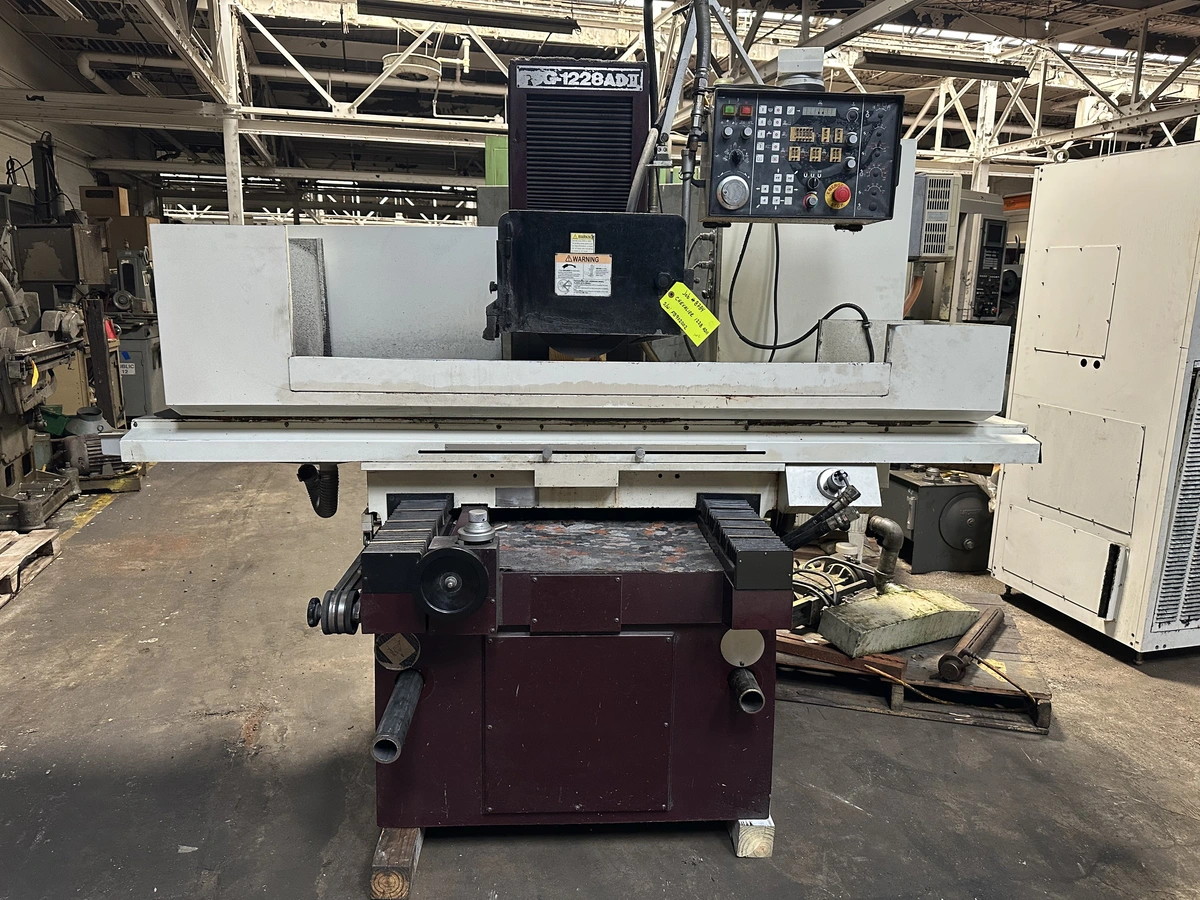

                                                                                                            CHEVALIER FSG-1228ADII SURFACE GRINDER

                                                                                                                     S/N FB902002     YEAR: 2002

STANDARD SPECIFICATIONS
Table Size…………………………………………………………………………………………12”x 24”
Fine Line Chuck……………………………………………………………………………12”x 24”
Grinding Capacity………………………………………………………………………12”W x 28”L
Table to Spindle Height………………………………………………………24.75”
Longitudinal Travel…………………………………………………………………29.5”
Longitudinal Speed……………………………………………………………………16-82 FPM (Variable
Cross Travel……………………………………………………………………………………12”
Cross Travel Feed………………………………………………………………………1/8”-2” Auto Increment
Incremental Downfeed……………………………………………0.00005”-0.002” Auto Incement
Grinding Wheel………………………………………………………………………………14”OD x 2”W x 5”ID
Table Capacity………………………………………………………………………………946 LBS
Spindle Motor…………………………………………………………………………………5 HP
Weight……………………………………………………………………………………………………4700 LBS

EQUIPPED WITH
Spark out.
Roller bearings.
Coolant system.

Specifications are deemed accurate, however, subject to verification or prior sale.
