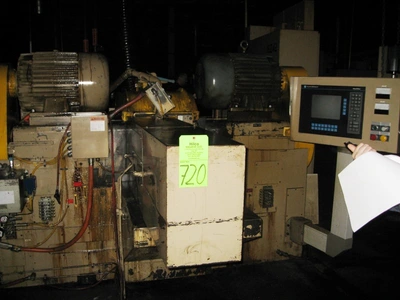

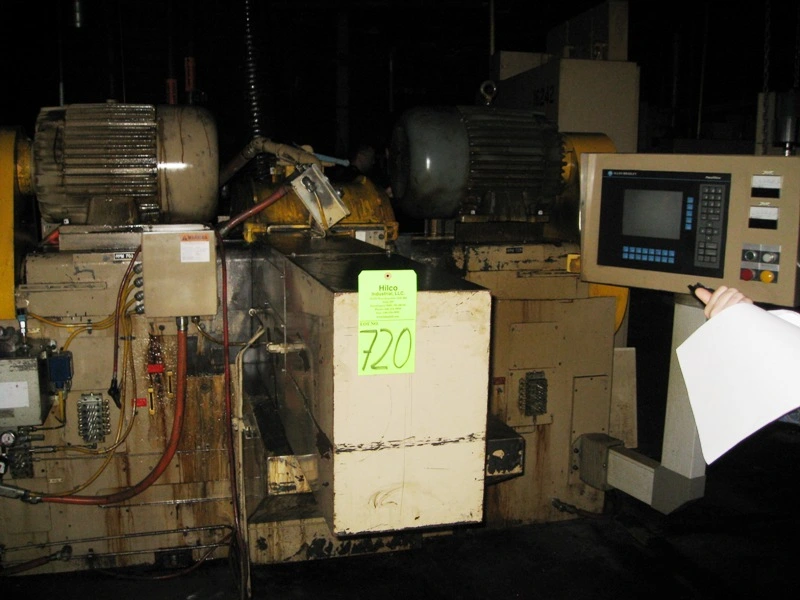

SDG5-30 GARDNER DOUBLE DISC GRINDER Gun Feed Fixture

SDG5-30 GARDNER DOUBLE DISC GRINDER
Gun Feed Fixture

S/N Job 7282

STANDARD SPECIFICATIONS
Abrasive disc diameter…………………………………. 30”
Abrasive useable thickness……………………………... 3”
Maximum opening between steel wheels………………. 15”
Servo incremental feed to………………………………. .0001”
Work capacity w/3” useable abrasive…………………… 6” wide
Work diameter – approximate…………………………… 8”

ELECTRICAL
60 HP spindles.
3/60 230/460
Free standing cabinet w/AB Panelview with Slo-Syn Servos.

EQUIPMENT & FEATURES
Set wheel mounts.
Electric dresser.
Hydraulic hood opener.
Hydraulic gun feed fixture.
