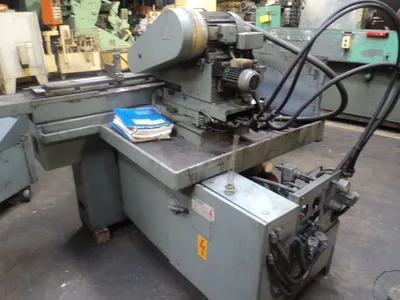

10 x 31 R75 CINCINNATI UNIVERSAL CYLINDRICAL GRINDER

10 x 31 R75 CINCINNATIUNIVERSAL CYLINDRICAL GRINDER
S/N M27261 Year: 1973

STANDARD SPECIFICATIONS
Swing over table……………………………………………. 10
Distance between centers…………………………………… 31

Table
Maximum table travel……………………………………….. 31
Infinitely variable traverse speeds…………………………… 2 -240
Table traverse per rev. of hand wheel……………………….. 0.1 0.5
Infinitely variable table tarry………………………………… 0 to 6 sec.
Maximum swivel of table ( /-)……………………………… 10 deg.

Head Stock
Infinitely variable spindle speeds……………………………. 60 to 480 RPM
Swivel range…………………………………………………. 0-90 degrees
Diameter of bore in spindle………………………………….. 1.4
Center taper in spindle……………………………………….. #13 Jarno
Machine center (used w/ adapter)……………………………. # 8 Jarno

Wheel Head
Rapid advance stroke…………………………………………… 2
Manual in feed one rev. of hand wheel (on dia)…………………0.050
Auto pick feed on dia. in (8) steps……………………………… 0.0002- .0016
Auto in feed (on demand) max stock removal of diameter………0.079
Hand lever pick feed on diameter………………………………. 0.0001
Swivel (upper lower)…………………………………………. /- 90 degrees
Grinding wheel head size……………………………………….. 12 dia.
1.5width
5 bore
Wheel speed……………………………………………………… 6,500 SFM

Approximate machine weight……………………………………. 8,000 lbs.
Approximate dimensions………………………………………… 81 x 72 x 57 H

EQUIPPED WITH
Double swivel wheel head design.
Dual live/dead work head spindle.
4 H.P. 3/60/230-460 volt wheel head motor.
165 lbs. max. weight of work between centers without steady rest.
HYDRAULIC OPERATION FEATURING

Power table traverse.
Auto in feed.
Table dresser.

Specifications are deemed accurate, however, subject to verification or prior sale.
