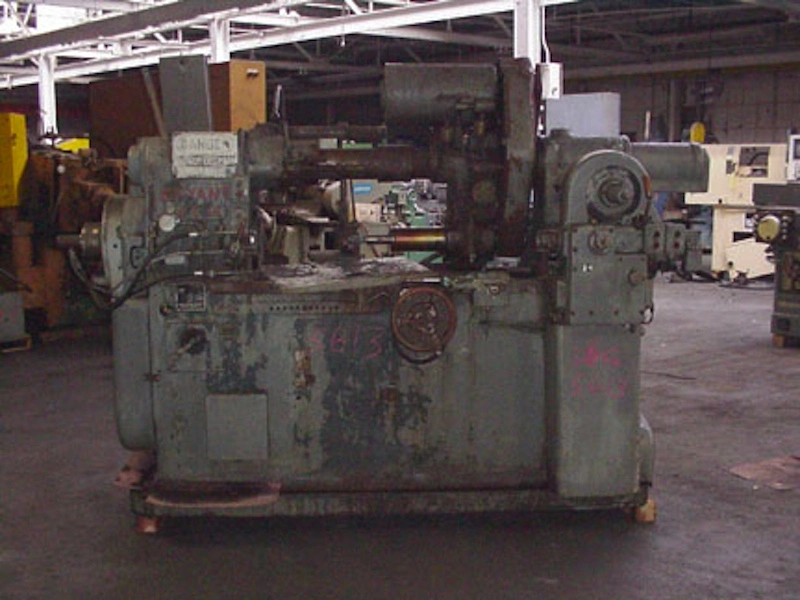

16 C 16 BRYANT INTERNAL GRINDER

16 C 16 BRYANT INTERNAL GRINDER

S/N P-4897 Year: 1940

STANDARD SPECIFICATIONS
Maximum diameter of swing (without guard)…………………………….. 16"
Maximum travel of wheel slide……………………………………………. 16"
Maximum grinding travel………………………………………………….. 13"
R.P.M. of work spindle (4 speed A.C. Motor)………………. 150, 225, 300 and 450
Motor, wheel drive (drawn shell type special frame)………… 5 HP depending on work
Motor, oil pump……………………………………………… 1 1/2 HP – 1200 R.P.M.
Capacity of oil reservoir……………………………………………………. 17 gallons
Net weight of machine, without motors……………………….…………… 8,000 lbs.
Gross weight of machine, with motors, etc…………………………………. 9,000 lbs.
Dimensions……………………………………………………………… 111" x 56" x 72"

EQUIPMENT & FEATURES
Single point dresser manual

Specifications are deemed accurate, however, subject to verification or prior sale.
