CINCINNATI #2 OM R-511-9

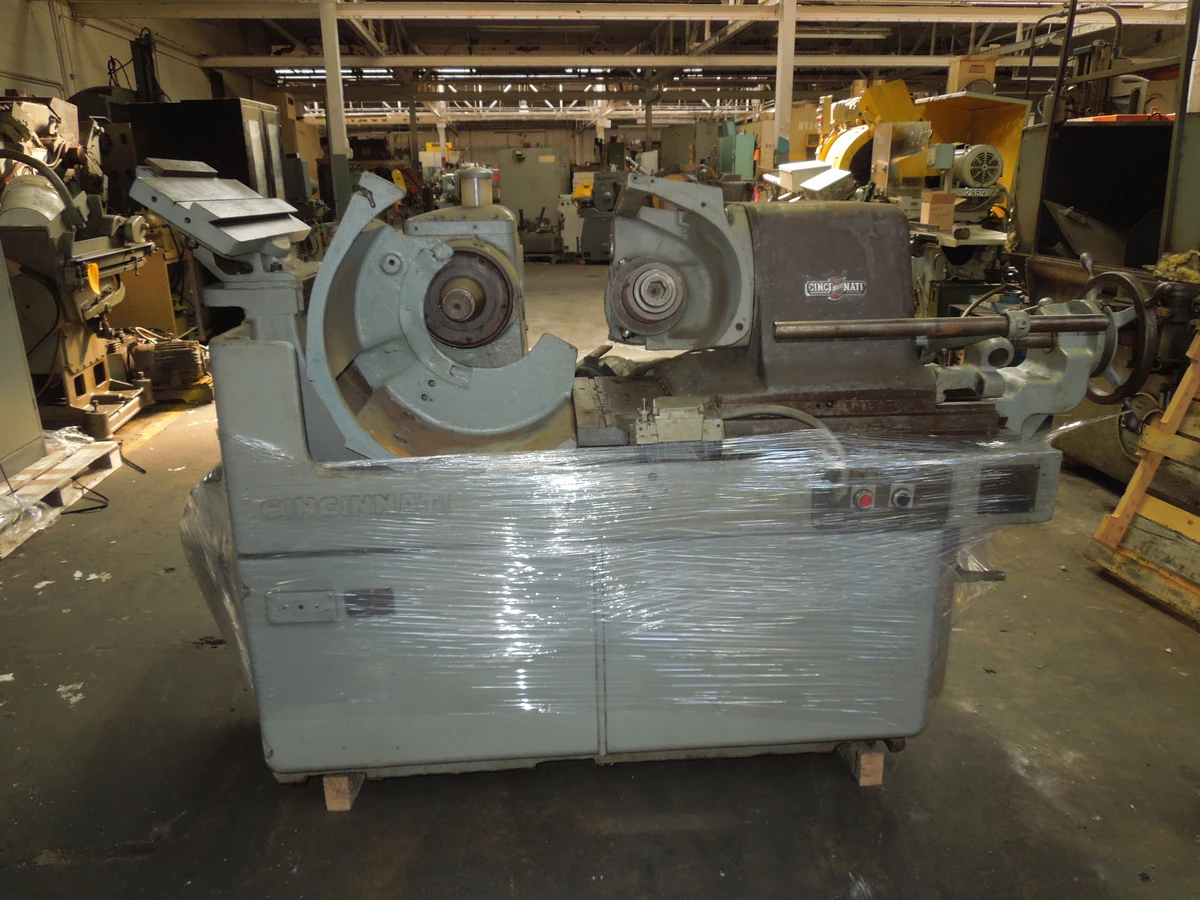

#2 OM CINCINNATICAM OUT CENTERLESS GRINDER
S/N R-511-9 Year: 1951

STANDARD CATALOG SPECIFICATIONS

CAPACITY (Depending on which work rest is ordered,
not included in price)
Standard work rest......................1/16 to 3 1/2 dia.
Low thru feed workrest................. 2 to 4 3/4 dia.
Bar work................................ 1/8 to 2 dia. 18 long

GRINDING WHEEL (Not supplied)
Width.............. 4, 6, or 8 Hole............ 12
Maximum diameter...................................20
Minimum diameter................................... 14

REGULATING WHEEL (Not supplied)
Width.............. 4, 6, or 8 Hole............ 5
Maximum diameter...................................12
Minimum diameter................................... 9

MOTOR DRIVES
Grinding wheel..................................... 15 HP
Regulating wheel................................... 1 1/2 HP
Hydraulic pump..................................... 1 1/2 HP
Cutting fluid......................................1/4 HP

OVERALL DIMENSIONS
Floor space:...................................... 53 x 86
Weight.............................................6,400 lbs.
EQUIPMENT FEATURES
Pull down lever.
Filmatic bearings.
Hydraulic contour truing on grinding wheel.
Screw-type contour truing on regulating wheel.
Grinding wheel mount for straight side wheel.
Regulating wheel mount for straight side wheel.
Balancing grinding wheel spindle.
Rotary diamond dresser.
20” OD grinding wheel.
Wheel mount.

Specifications are deemed accurate, however, subject to verification or prior sale.
