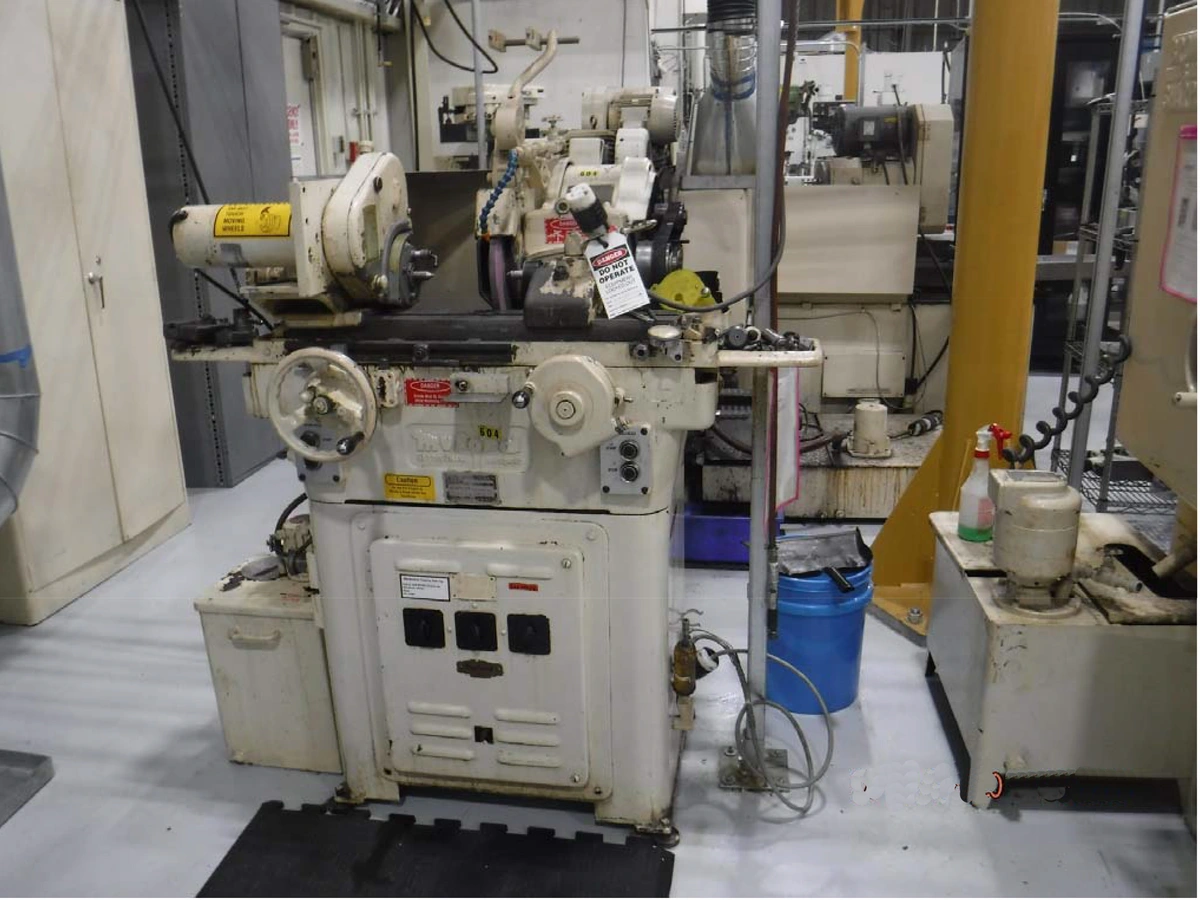

MYFORD MG12 PLAIN CYLINDRICAL GRINDER

MYFORD MG12 PLAIN CYLINDRICAL GRINDER
S/N:S53000 YEAR: 1962

SPECIFICATIONS
MAXIMUM GRINDING DIAMETER............................ 3
SWING OVER TABLE............................................. 5
MAXIMUM TABLE TRAVEL.............................. 13-3/4
CAPACITY BETWEEN CENTERS............................. 12
TABLE SWIVELS EITHER WAY.................... 7 DEGREES
TABLE TRAVEL PER REVOLUTION OFHANDWHEEL ... 2.04 0.51

WHEELHEAD
TOTAL TRAVEL.............................................................. 3
FINE FEED ADJUSTER (NUMBEREDDIVISIONS) ......... 0.0001
WHEEL SPEEDS (2).................................. 1830 1988 RPM
GRINDING WHEEL (RECESSED)................. 12 X 1-1/2 X 5
MINIMUM WHEEL DIAMETER FOR ZEROWORK DIAMETER ... 10-1/8
WHEELHEAD MOTOR................................................. 3 H.P.

WORKHEAD
WORKSPEEDS, STEPLESSLY VARIABLE........... 50 TO 900 RPM
CAPACITY THROUGH STANDARD DRAWTUBE ................ 3/4
MAXIMUM COLLET CAPACITY....................................... 3/4
WORKHEAD MOTOR.............................................. 1/2 H.P.

APPROXIMATE MACHINE WEIGHT......................... 1500 LBS

EQUIPPED WITH
HAND FEEDS
12 GRINDING WHEEL
DUAL LIVE/DEAD WORKHEAD
4C COLLET DRAW BAR
4C COLLET WITH A CENTER
TABLE MOUNTED DRESSER
COOLANT SYSTEM
3/60/220-440 VOLT ELECTRICS
Specifications are deemed accurate, however, subject to verification or prior sale.
