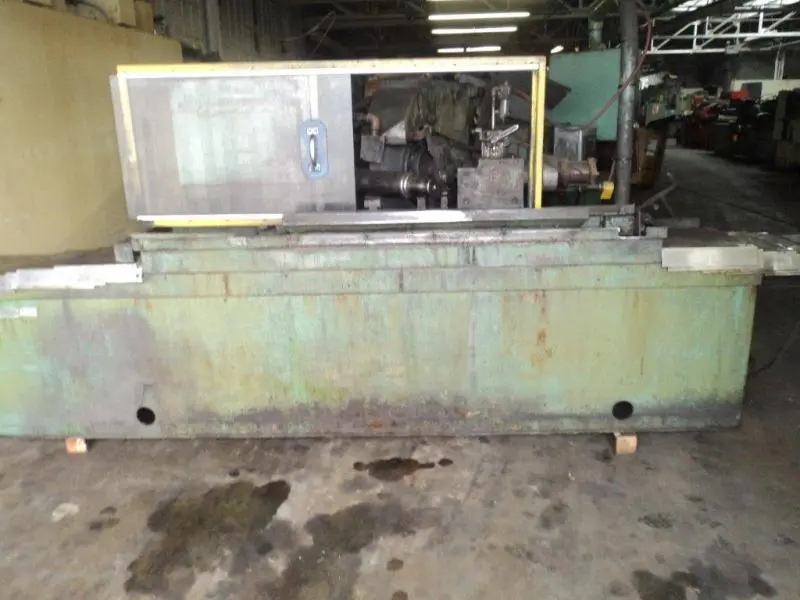

14 x 40 WARNER & SWASEY MODEL ACC 1440-A PROGRAMMABLE CONTROLLED STEPMASTER ANGULAR CYLINDRICAL GRINDER

14 x 40 WARNER SWASEY MODEL ACC 1440-A
PROGRAMMABLE CONTROLLED STEP MASTER
ANGULAR CYLINDRICAL GRINDER

S/N SMA30433 Year: 1980

STANDARD SPECIFICATIONS
Wheel slide type……………………….…………………….. Straight or angular
Microprocessor control……………………………………… Two-Axis
Work Capacities - diameter…………………………….…… 14 355 MM
-length……………………………………40
Wheel diameter………………………………...………….… 30
Max. wheel width…………………………………...…….…. 5
Speeds wheel……………………………..…….………..…. 8500 SFPM
max. wheel slide…………………….….…….…..…500 IPM
max. table traverse……………………..……..….…500 IPM
Other work centers…………………………….…………… #14 Jarno
wheel motor…………………………..…….……...… 20 HP
work motor……………………………..…….…...…. 11/2 HP
lubricating motor……………………….…….……… 1/4 HP
coolant motor…………………………….……….…..1/3HP

EQUIPMENT FEATURES
Table traversing by Precision Ball Screws.
Automatic computer control (Warner Swasey).
Electrotru system electronic, Automatic two-pass dressing.
Swivalign taper.
Live dead center work head.
Auto lubrication system.
Plunge(Servo).
Freestanding electrical unit.

MOTORS CONTROLS
20 HP wheel head motor 230/460/3/60 cycle.

OVERALL DIMENSIONS
11L-R x 7’ depth x 6’ 3 tall.
Approx. weight 14,000 lbs.

Specifications are deemed accurate, however, subject to verification or prior sale.
