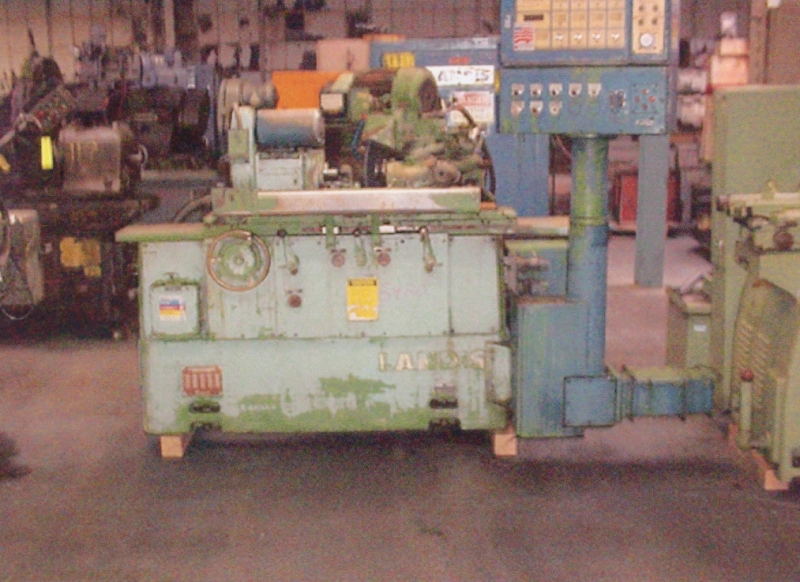

10 x 20 LANDIS 1R 30* ANGLEHEAD CYLINDRICAL GRINDER

10 x 20 LANDIS 1R 30* ANGLEHEAD CYLINDRICAL GRINDER
S/N T879-08 Year:1981

STANDARD SPECIFICATIONS
Nominal work swing……………….……………………………….10
Nominal distance between work centers*……….…………………. 20
Floor space required……………………………….………………. 105 x 65
Coolant tank capacity………………………………….…….…….. 19 gallons
Hydraulic tank capacity………………………………….…..…….. 9 1/4 gallons
Height from floor to work center line……………………….….….. 41 3/4
Carriage traverse per turn of hand wheel………………….………. 0.200
Swivel table graduated -inches per foot……………………...…… 4
- degrees included angle……………..…… 20
Grinding wheel size(standard)………………………………...…. 16 x 3 x 5
Grinding wheel (maximum width)…………………………...…… 3
Grinding wheel speeds……………………………………………. 1,500 1,900RPM
Rapid in feed stroke…………………………………………..……1
Head stock work center…………………………………………… #10 Jarno
Foot stock work center……………………………………………. #6 Jarno
Head stock work speeds………………………….. 60, 90, 150, 225, 400,600RPM
Diameter of hole through spindle…………………………………. 1
Head stock spindle nose…………………………………………... 5A2
Wheel drive motor……………………………………………….... 5 HP
Work drive motor…………………………………………………. 1/4 HP
Wheel spindle lubrication motor………………………………..… 1/4 HP
Coolant pump motor……………………………………………… 1/10 HP
Hydraulic and lubricating pump motor…………………………… 1 HP
Machine net weight………………………………………….……. 5,300 lbs.

* May be reduced of work piece configuration.

EQUIPMENT FEATURES
Micro-tronic feed.
Plunge feed.
Hydraulic table traverse .
Behind wheel hydraulic.
Truing for face shoulder.
Left and right tarry on table reversal.
Free standing electrical panel.
Coolant in base.

Specifications are deemed accurate, however, subject to verification or prior sale.
