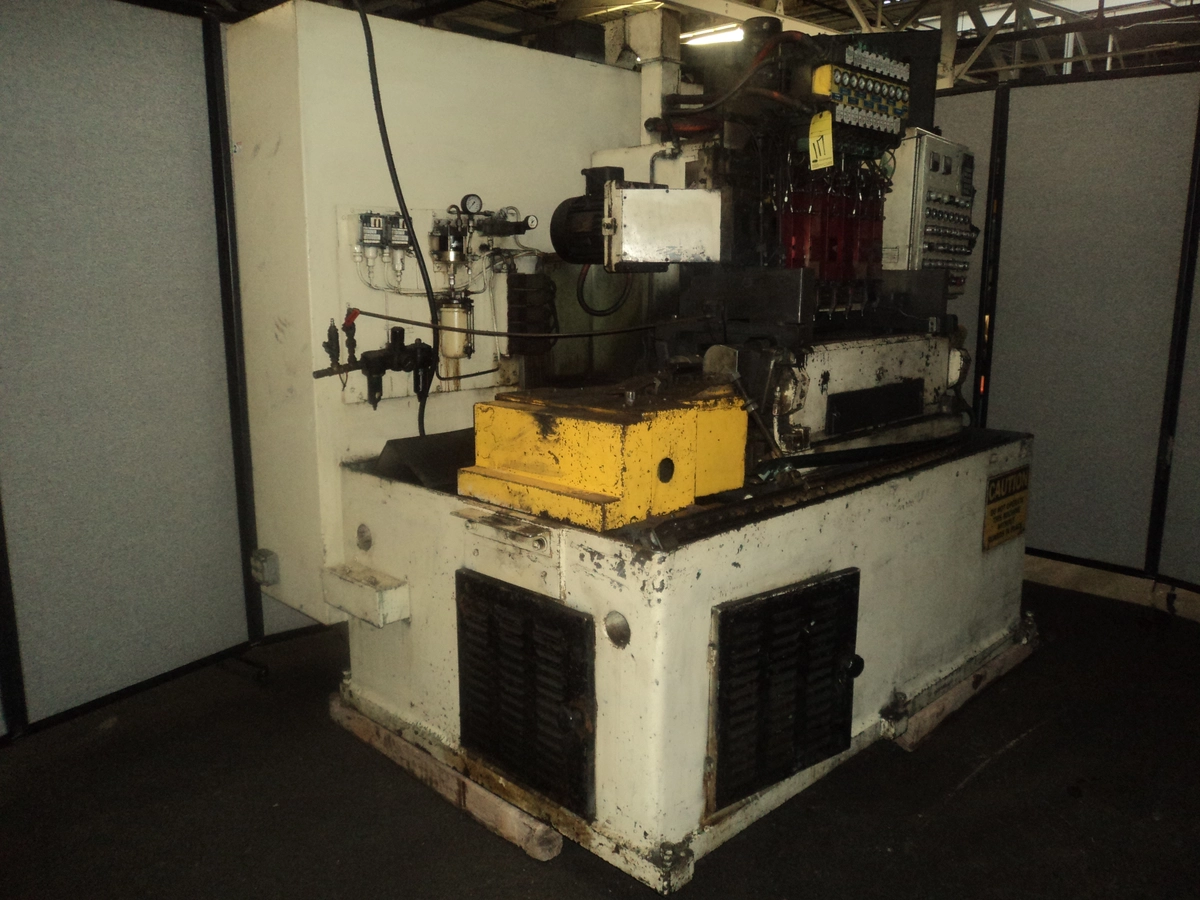

THIELENHAUS SF125 SUPER FINISHER

THIELENHAUS SF125 SUPER FINISHER
S/N T92003

STANDARD SPECIFICATIONS
Working diameter…………………………………… 0.118” – 3.14”
Drive roll speed…………………………………… 0 – 720 RPM
Drive roll length………………………………… 42.9”
Number of toll carriers………………… 8
Tool oscillation frequency (double str./min)………… 75 – 1500
Horizontal oscillation stroke of the tool ……………… 0 – 0.23”
Vertical oscillation stroke of the tool …………………… 1.96”
Total power required………………………………………………………………………… 12 HP
Minimum compressed air pressure (bar)…………………………… 4,5
Flushing oil system – flowrate……………………………………………… 80 I/min
Operating voltage……………………………………… 3x380 ±5% Volt
Operating frequency…………………………………… 50 ±3 Hz
Control voltage……………………………………………… 24 Volt DC

Specifications are deemed accurate, however, subject to verification or prior sale.
