FELLOWS 61A

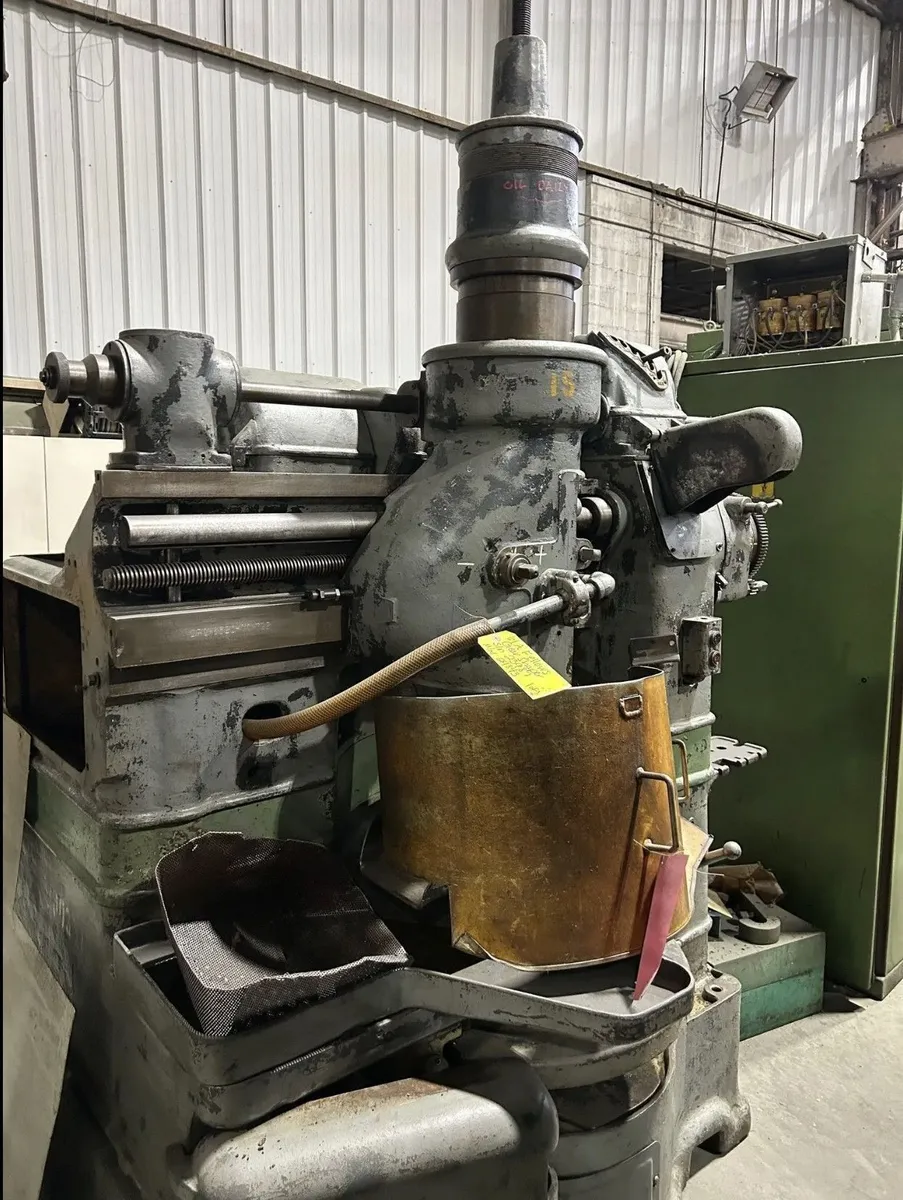

FELLOWS 61A GEAR SHAPER
S/N 23987 Year: 1944

STANDARD SPECIFICATIONS
Max External & Internal Pitch Diameter…………………………….18”
Max External Face Width…………………………………………… 5”
Max Internal Face Width……………………………………………..5”
Max Spur Diametral Pitch……………………………………………3/4”
Stroke…………………………………………………………………5.12”

DIMENSIONS
Max Overall Length Of Machine……………………………………..5’ 3”
Max Overall Width Of Machine………………………………………4’
Max Overall Height Of Machine (W/ Out Raising Blocks)…………..6’ 5”
Weight…………………………………………………………………6800 lbs.

EQUIPPED WITH
Spur guide.
5” Riser.
Coolant pump.
1 Set-Up of change gears.

Specifications are deemed accurate, however, subject to verification or prior sale.

All exchange units/returns must be shipped within 30 days. All exchange units/returns must be shipped using DDP terms - Grinders Clearing House, Inc. dba GCH Machinery, is not responsible for any customs formalities or shipping costs.

If Grinders Clearing House, Inc. dba GCH Machinery does not receive exchange/core unit back within 30 days, GCH will invoice FULL replacement cost (OUTRIGHT Cost) to customer.
