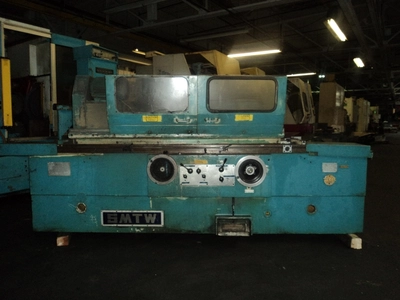

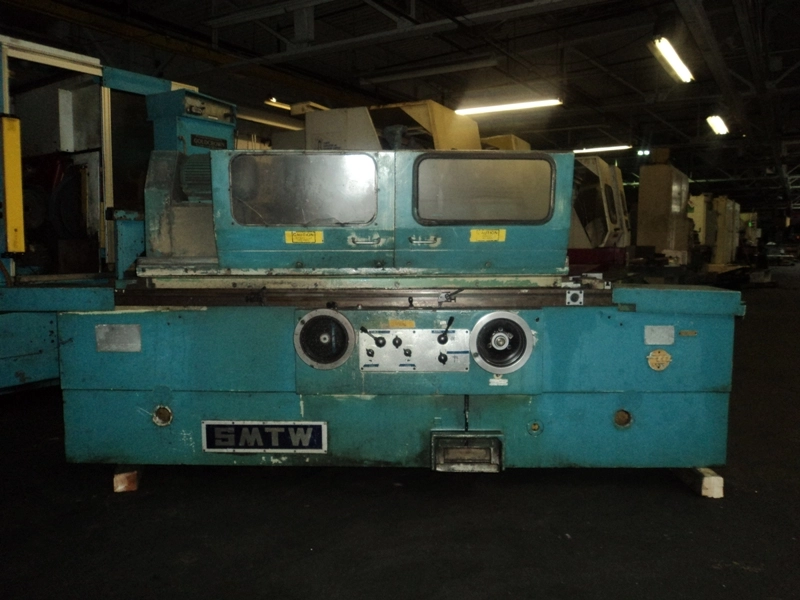

SMTW PLAIN CYLNIDRICAL GRINDER

SMTW PLAIN CYLNIDRICAL GRINDER
Model M1332B /1000
S/N M1332B

STANDARD SPECIFICATIONS
Swing over table……………………………………………………... 14”
Distance between centers…………………………………………….. 40”
Grinding diameter - with steady rest – min./max……………….……0.393” – 2.3622”
- without steady rest –min./max……………….... 0.31496”-12.598”
Max. upper work table swing angle clockwise………………………. 3"
Max. longitudinal work table travel………………………………….. 41.3385”
Wheel dimensions OD x W x ID – max……………………………… 600 x 75 x 305 mm
- worn……………………………… 450 x 75 x 305 mm
Wheel peripheral speed……………………………………………….. 35 m/s
Wheel spindle speed………………………………………………….. 1100 r/min
Max. lead screw travel………………………………………………… 231 mm
Rapid advance and withdrawal amount……………………………….. 50 mm
Wheel head displacement per rev. of hand wheel coarse/fine………… 2/0.5 mm
Wheel head displacement per div. of hand wheel coarse/fine………… 0.01/0.0025 mm
Total motor power…………………………………………………….. 11 kilowatts
Tail stock dresser.
Dead center head stock.
Auto feed.
