Used 1963 HEALD 261 | GRINDERS, SURFACE, ROTARY TYPE – HORIZONTAL

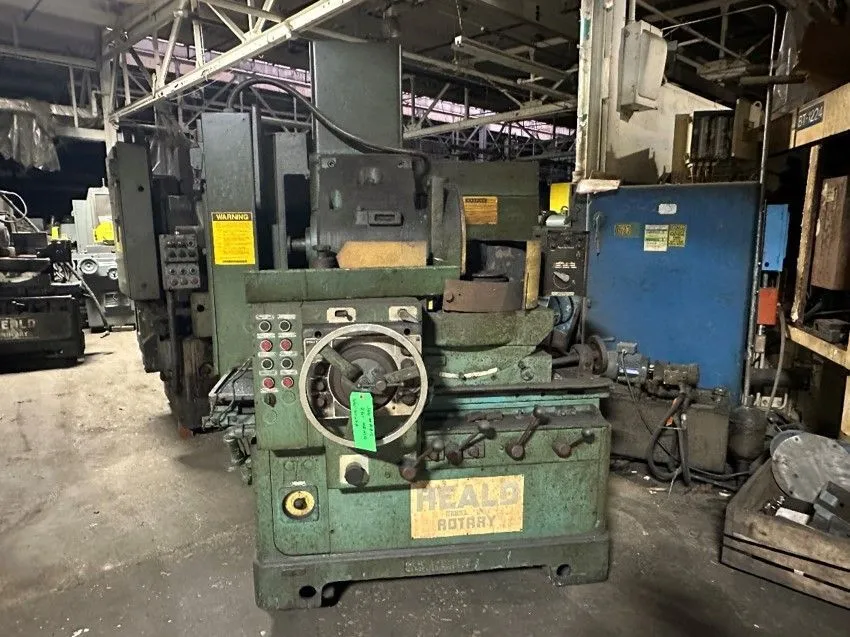

261 HEALD HORIZONTAL SPINDLE ROTARY SURFACE GRINDER

S/N 41678 YEAR: 1963

STANDARD CATALOG SPECIFICATIONS
Will grind flat, convex & concave surfaces
Magnetic chuck diameter............................ 16"
Maximum swing inside coolant guard................. 20"
Grinding wheel size................................ 14" X 1" X 5"
Distance chuck top to grinding wheel center:
Maximum.............. 17 3/4" Minimum......... 4 1/4"
Chuck speeds....................................... 50 to 180 RPM
Table seeds....................................... 0 to 20 FPM
Main motor.......................... 15 HP, 1760 RPM, 220/440/3/60

EQUIPPED WITH
Coolant tank & pump.
Neutrofier & rectifier.
Dresser.
Weight approximately 8,100 lbs.
Attached electrical panel.
Standard push button.

Specifications are deemed accurate, however, subject to verification or prior sale.
