Used 1999 KOYO HD3C | GRINDERS, DISC, HORIZONTAL, DOUBLE

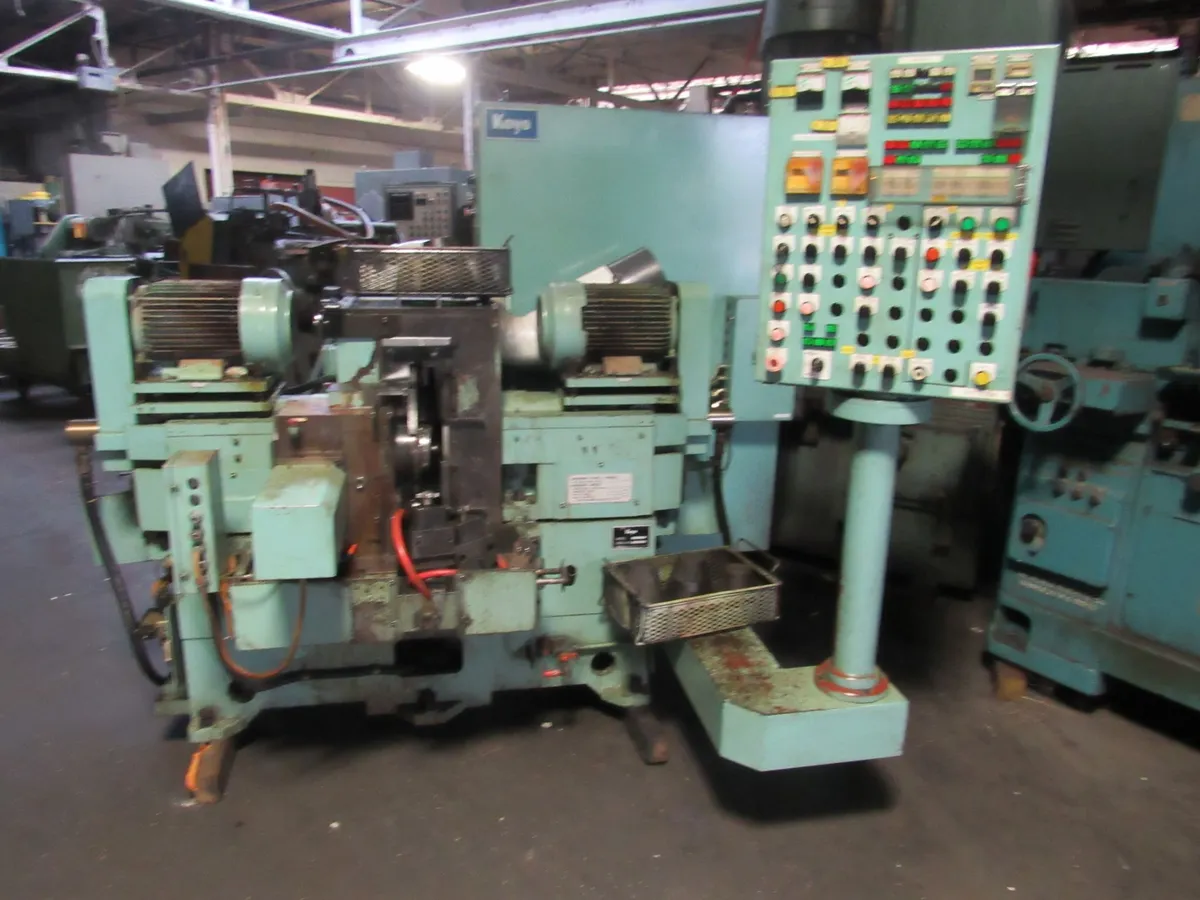

KOYO HD3C ROTARY DOUBLE DISC GRINDER

S/N 3D131ZZ03 Year: 1999

STANDARD SPECIFICATIONS
Machining Range:
Outer diameter………………………………………. 0.23” – 2”
Width – O.D…………………………………………. 0.039” – 2.3”

Grinding Wheel:
O.D. x Width………………………………………... 12” x 1.9” x 6.10” (Bore)
Rotation……………………………………………... 1740 RPM

G.W. Slide:
Quick feed…………………………………………… 7.87”/min
(Manual)……………………………………………… 0.009”/rev

Motor:
Feed………………………………………………….. 0.402 HP
For dress……………………………………………... 0.080 HP
G.W. spindle…………………………………………. 10 HP – 1720 RPM

Machine weight………………………………………. 6800 lbs.

EQUIPMENT & FEATURES
Rotary type grinder.
Attached electrical.
Push button station.

Specifications are deemed accurate, however, subject to verification or prior sale.
