Used FANUC ROBOCUT CX-1C | WIRE EDM

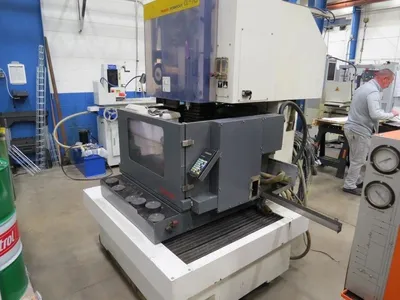

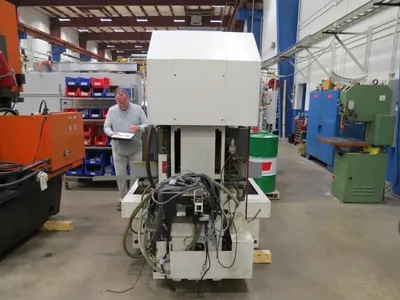

FANUC ROBOCUT CX-1C EDM

S/N P9781C596 YEAR: 1997

STANDARD SPECIFICATIONS
Max Workpiece Size……………………………………………33”x 27.3”x 12”
Travels (X,Y,Z)………………………………………………....20.5”x 14.6”x 12”
UV Travels………………………………………………………+/- 2.364”
Max Workpiece Weight………………………………………….2,200 LBS
Wire Speed……………………………………………………….0-590 IPM
Wire Diameter…………………………………………………....004 - .012”
Power Supply Amps: Digital AC/DC Power Supply
Taper Angle: +/- 30 DegreesStandard or +/- 12 Degrees AWF
Dielectric Fluid Capacity: 140 Main Tank 30 Filter Tank Gallons
Max Machining Speed: 28 Square Incher Per Hour

EQUIPPED WITH
Dielectric System: ………………………………….Length: 49”, Width: 57”, Height: 48”
Control With Pendant:…………………………….. Length: 29”, Width: 82”, Height: 78”
Ebbco Filtration:…………………………………... Length: 48”, Width: 24”, Height: 51”
Spent Wire Bin:…………………………………… Length: 27”, Width: 26”, Height: 42”
Chiller:…………………………………………….. Length: 25”, Width: 20”, Height: 25”

Specifications are deemed accurate, however, subject to verification or prior sale.
