Used 2007 SUNNEN SV-310-S1 | VERTICAL HONES

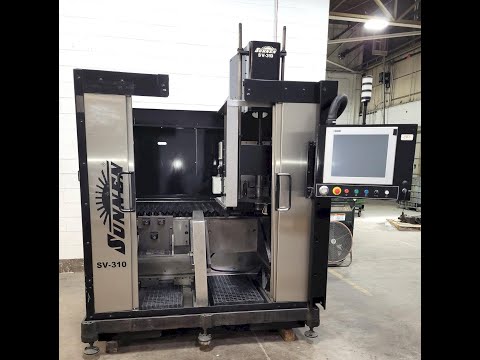

SUNNEN SV-310-S1 VERTICAL HONING MACHINE
S/N 1F1-1011 YEAR: 2007

SPECIFICATIONS
Diameter Range (ID).......................0.75-8”
Workpiece Weight..........................2,000 LBS
Max Workpiece Weight......................28”
Workpiece Envelope........................40”x 70”
Carriage Travel (X-Axis)..................45”
Stroke Travel (Z-Axis)....................30”
Stroke Speed (Z-Axis).....................1-160 SPM
Stroke (Column) Motor.....................7.5 HP
Feed Force: Rotary........................224.8 lbf-in. Max Torque
Sump Pump Motor...........................0.33 HP @ 30 GPM
Coolant Tank..............................72 Gallon
Coolant Pump..............................2 HP
Work Area.................................151”x 160”x 121”
Floor Weight (Dry)........................9,590 LBS

EQUIPPED WITH:
• Sunnen Windows 7 ultimate.
• Sunnen 3.4.0.0 (2015) PC programmable stroking system with large pendant mounted touch screen motor.
• Keyboard & mouse.
• USB.
• 2-Axis handwheel for final tool positioning & X-axis servo for multiple part set-up positions.
• Programmable depth, dwell, & rotation including cross-hatch capability.
• Drop down menus.
• Almost unlimited storage for job set-ups.
• Sunnen PH precision multi-stone honing heads.
• Mandrel.
• Large quanity of diamond tools.
• Superior filtration model VV5 coolant & filtration system complete with vacuum paper filtration bed.
• Sludge conveyor.
• Koolant Koolers chiller.
• Coolant pump & tank.
• Sludge cart.
• Full size sliding stainless work area doors.
• (3) Pair elevated frame supports.
• Books & manuals.

Specifications are deemed accurate, however, subject to verification or prior sale.
