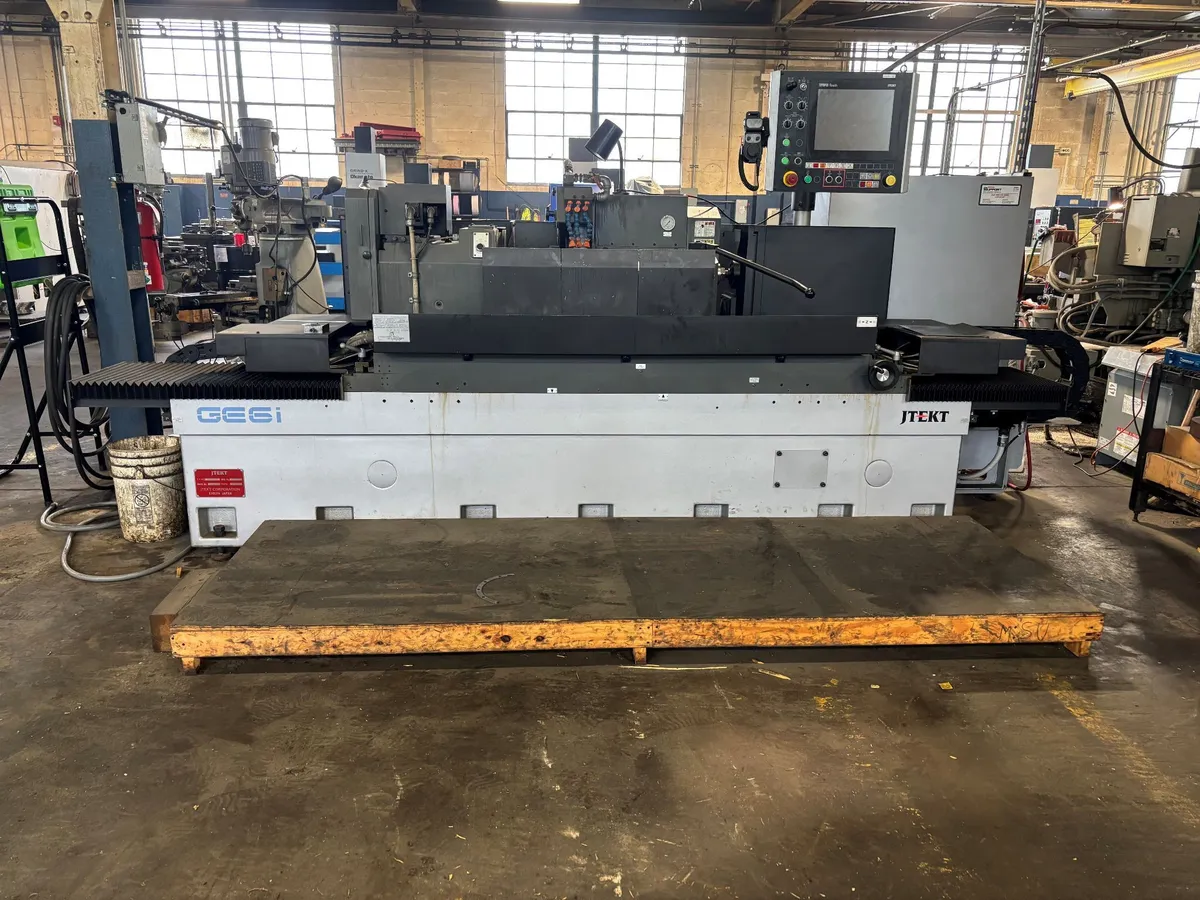

TOYODA GE6Pi-100 CNC OD GRINDER
S/N RG-0479 YEAR: 2022

SPECIFICATIONS

CAPACITY
Swing……………………………………………………Ø 22.0″ (560 mm)
Distance Between Centers……………………39.4″ (1,000 mm)
Max Grinding Diameter………………………..Ø 21.6″ (550 mm)
Max Load Between Centers…………………..1,100 lbs (500 kg)
Centerline Height from Floor…………………46.45” (1,180 mm)
Floor Space (approximate)…………………….197″ x 137″ (5,000 mm x 3,476 mm)
Net Weight…………………………………………….17,636 lbs (8,000 kg)

WHEELHEAD
Wheel Size (OD x ID)………………………………Ø 24″ x 10″ (610 mm x 254 mm)
Wheel Use Range…………………………………..Ø 24″ to 16.93″ (610 mm to 430 mm)*
Max Standard Wheel Width……………………2.95″ (75 mm)
Standard Wheel Surface Speed………………6,500 SFPM (33 m/s)
Spindle…………………………………………………..TOYODA STAT® Bearing
Minimum Move Increment…………….………0.000010” (0.0001 mm)
Wheelhead Rapid Feed…………………………..590 IPM (15 m/min)
Slide………………………………………………………..V and Flat Slide, 90° slide

TABLE
Type………………………………………………………..Two (2) Piece Swiveling/Traversing
Table Swivel (CCW to CW)……………………….4° to 0°
Table Stroke…………………………………………….48.6” (1,235 mm)
Slide…………………………………………………………V and Flat Slide
Minimum Move Increment………………………0.000010” (0.0001 mm)
Table Rapid Feed……………………………………..511 IPM (13 m/min)

WORKHEAD
Type…………………………………………………………Dead Spindle
Workhead Center Taper…………………………..MT #5
Work Speed (Variable)……………………………..7 to 140 rpm

FOOTSTOCK
Type…………………………………………………………Manual
Footstock Center……………………………………..MT #5
Max Center Retraction: 1.25″ (32 mm) by lever, 1.18″ (30 mm) by manual position adjust wheel.

DRESSER
Type…………………………………………………………..Stationary Diamond Holder
Location…………………………………………………….Workhead Mount

MOTORS
Wheel Drive Motor (4P)………………………………15 hp (11 kW)
Work Drive Motor……………………………………….4.69 hp (3.5 kW)
Wheelhead Feed Drive Motor……………………..4.15 hp (3.1 kW)
Table Feed Drive Motor……………………………….6.7 hp (5 kW)
Lubricant Pump Motor (4P)………………………….0.27 hp (.2 kW)
Wheel Spindle Lubrication Motor (2P) Fan Cooler for Spindle Oil (4P)**: .67 hp (.5 kW), .1 hp (.08kW)

POWER REQUIREMENT
200Volt, 3-Phase, 60 Hz

FLUID CAPACITIES
Spindle Oil Lube Tank……………………………………3.7 gal (14 lt)
Lubrication Tank…………………………………………..5.2 gal (20 lt)
Coolant Tank………………………………………………..92 gal (350 lt)

EQUIPPED WITH
Dead Workhead.
Manual Footstock.
105 Gallon Coolant Tank.
