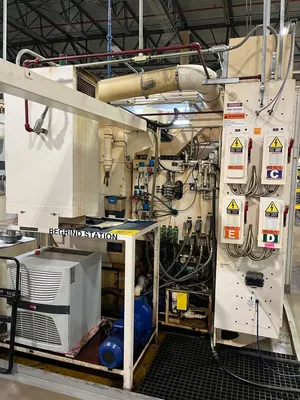

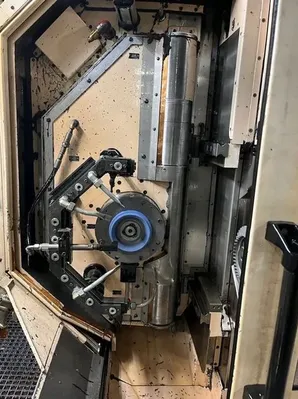

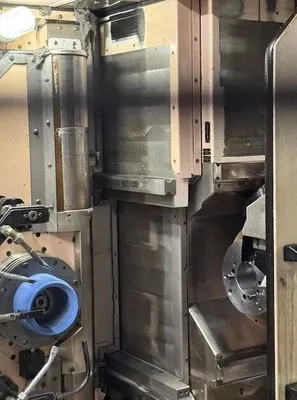

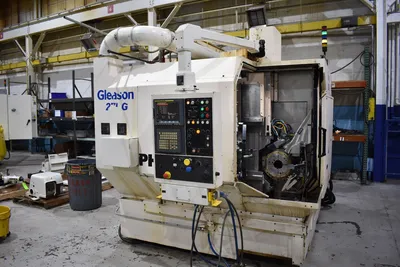

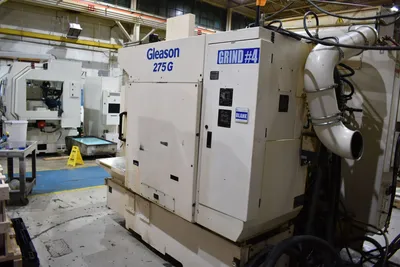

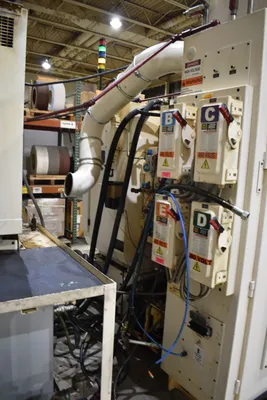

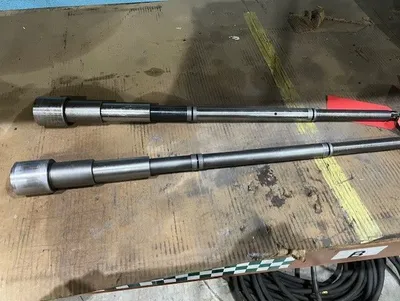

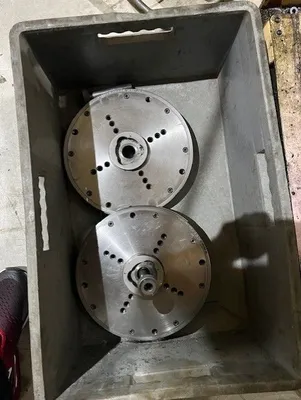

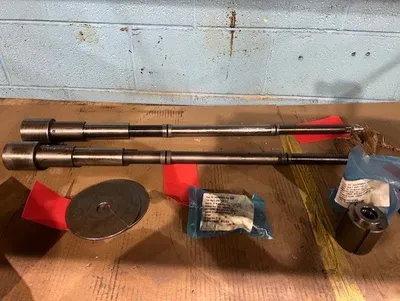

Used 2008 GLEASON 275 G | GEAR GRINDERS

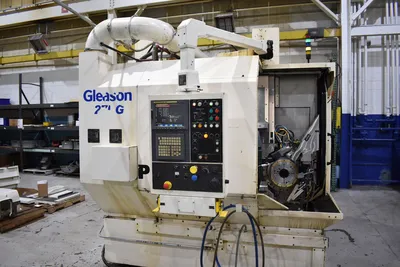

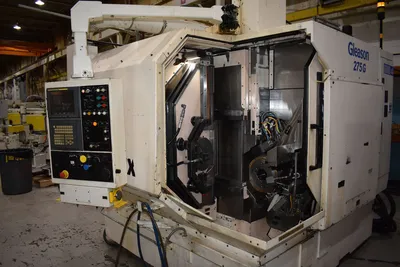

GLEASON 275G GEAR SHAPING MACHINE

SPECIFICATIONS
Module+.................................8
Module-.................................0.5
Max Gear Width..........................2”
Engine Power............................90 KW
Max Gear Ratio..........................10:1
Number Of Teeth.........................3-200
Tool Height.............................1”
Minimum Tool Diameter...................3”
Max Tool Width..........................2”
Max Tool Diameter.......................9”
X-Axis..................................13”
Y-Axis..................................14”
Z-Axis..................................19”
Workpiece Table Diameter................8”
B-Axis..................................+90.1/-1 Degrees

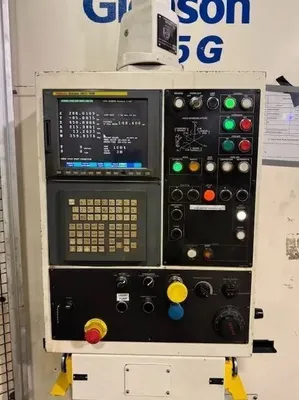

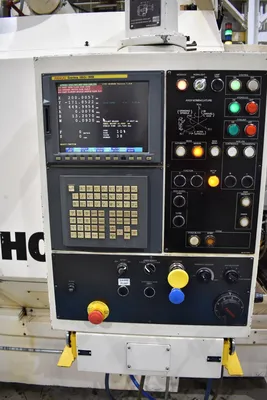

Control.................................160i-MB Fanuc
Weight..................................22,046 LBS
Dimensions..............................240”L x 173”W x 130”H

Specifications are deemed accurate, however, subject to verification or prior sale.
