Used 1979 GALLMEYER & LIVINGSTON 5712 | GRINDERS, SURFACE, RECIPROCATING TABLE - HORIZONTAL

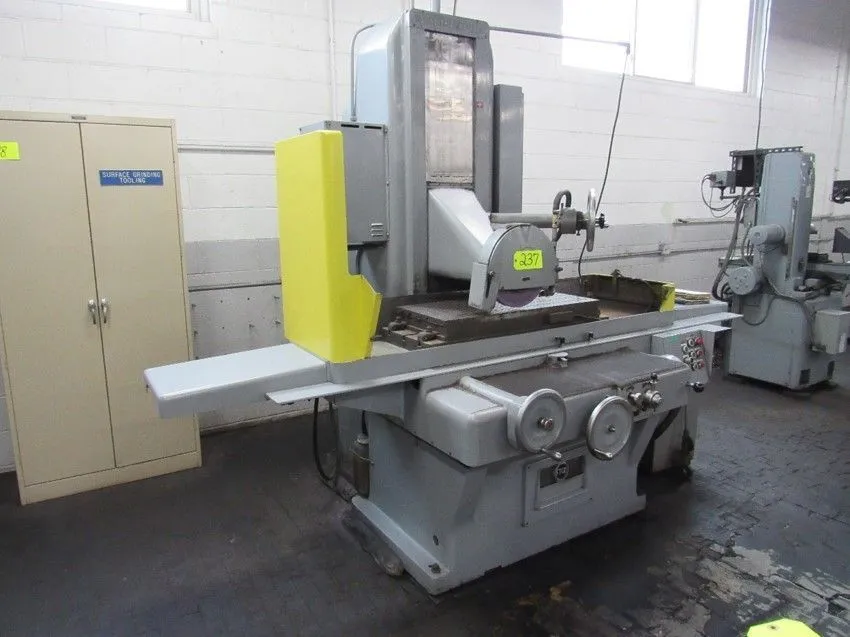

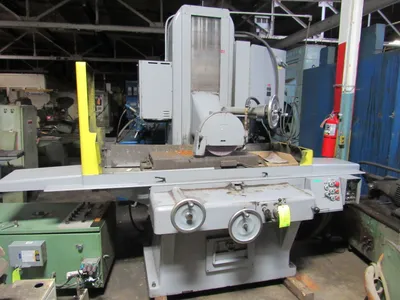

GALLMEYER & LIVINGSTON 16”x 36” 5712 SURFACE GRINDER

S/N 5712209 YEAR: 1979

STANDARD SPECIFICATIONS
Working Surface Of Table………………………………………………………………16”x 36”
Longitude Table Speed………………………………………………………………………3”-150 FPM
Max Longitude-Hydraulic Table Travel………………………………47.5”
Max Transverse Hydraulic Table………………………………………………17.75”
Standard Wheel Size……………………………………………………………………………14”x 1.5”x 5”
Vertical Movement Of Wheel Head……………………………………………19”
Max Distance Wheel To Table………………………………………………………27”
Center Of Spindle To Bottom Of Housing…………………………3”
Standard Spindle Speeds…………………………………………………………………1750 & 2100 RPM
Standard Spindle Motor……………………………………………………………………7.5 HP, 1750 RPM
Standard Hydraulic Pump Motor…………………………………………………3 HP, 1140 RPM

FLOOR SPACE
Floor space…………………………………………………………………………………………………172”x 89”
Weight………………………………………………………………………………………………………………11,700 LBS

EQUIPPED WITH

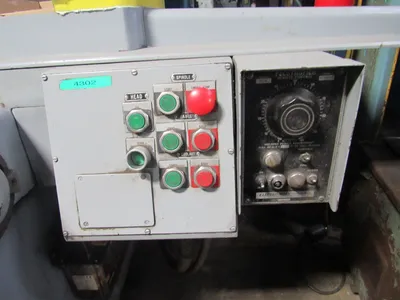

Neutrofier chuck controls.

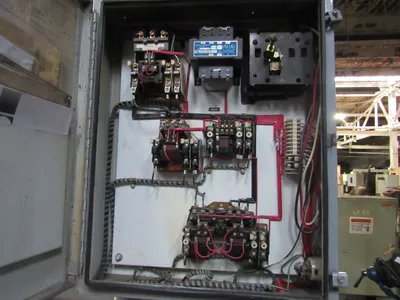

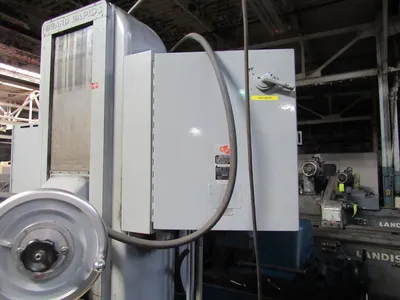

Attached electrical.
Coolant tank & pump.

Specifications are deemed accurate, however, subject to verification or prior sale.
