Used HANNIFIN 4 Post | Molding Presses

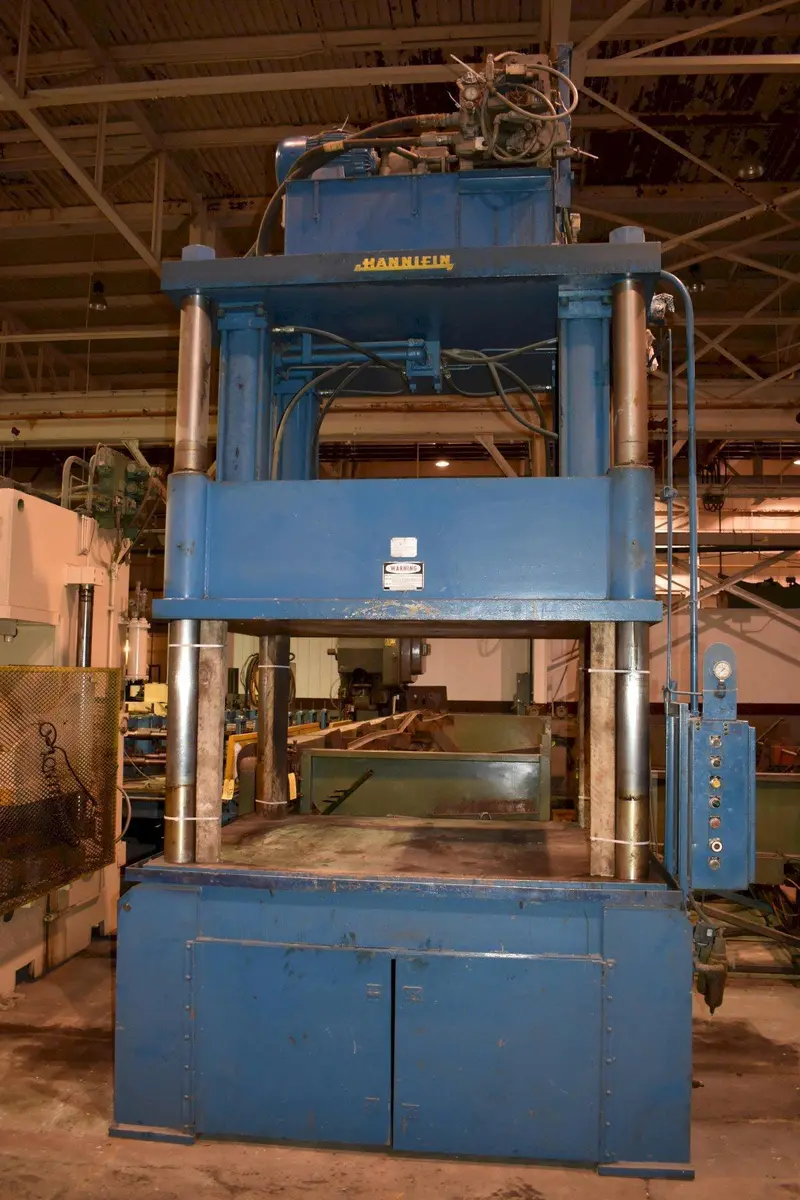

250 TON HANNIFIN 4 POST HYDRAULIC PRESS

S/N T-16876

SPECIFICATIONS
Capacity...................................250 Ton
Stroke.....................................30”
Daylight...................................35”
Bed........................................78”LR x 62” FB
Between Post Opening.......................64”LR x 48” FB

APPROXIMATE SPEEDS
Down-Advance...............................73 in/min
Down-Feed..................................37 in/min
Return.....................................76 in/min

EQUIPPED WITH

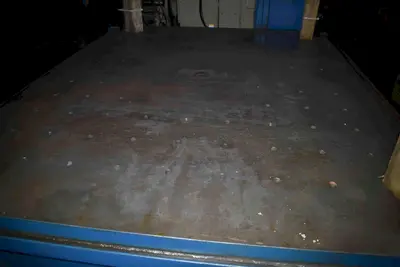

Bolster has (74)tapped holes on 6” center to center pattern.
Ram has (90) tapped holes on 6” center to center pattern in same location as bolster.
Top mounted motor, hydraulic pump, & tank.
Press mounted operator controls.
(4) Down acting cylinders 7” bore, 30” STR, 5” Dia. rod,
500,000 lBS force each.
7.5 HP Motor, 1800 RPM.

Dimensions..................................96”LR x 72”FB, 180”H
Weight......................................28,000 LBS

Specifications are deemed accurate, however, subject to verification or prior sale.
