Used AIDA CF1-220 | PRESSES, STRAIGHT SIDE, DOUBLE CRANK

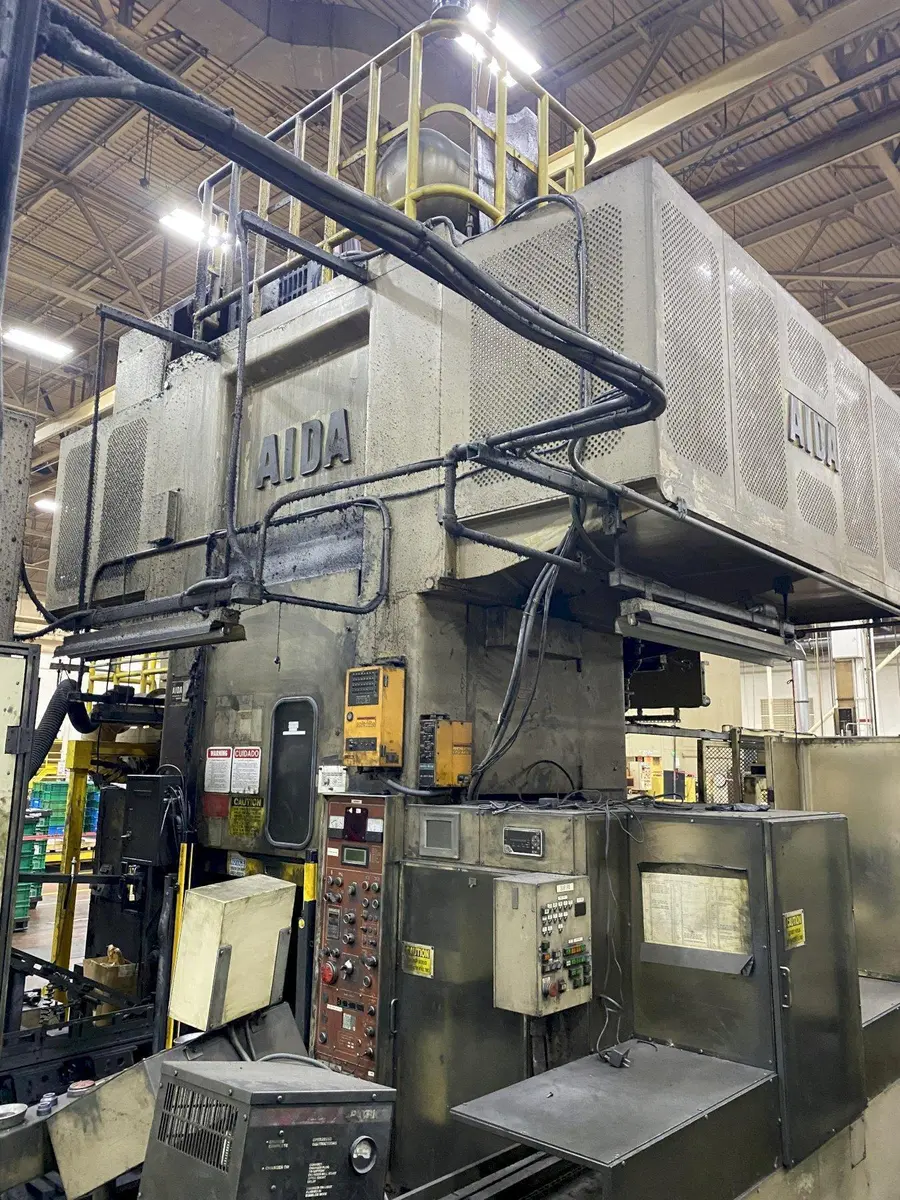

220 TON AIDA CF1-220 STRAIGHT SIDE LINK MOTION
COLD FORGING SINGLE POINT PRESS

S/N 11200-0035 YEAR: 2014

SPECIFICATIONS
Capacity.....................................220 Ton
Stroke.......................................11.81”
Die Height...................................19.68”
Slide Adjustment.............................1.18”
Bolster Area.................................29.53”LR x 29.53”FB
Slide Area...................................29.53”LR x 29.53”FB
Speed (Variable).............................25-40 SPM

EQUIPPED WITH
Allen Bradey panelview plus 700.
Press console controls.
Operator palm stand.

Specifications are deemed accurate, however, subject to verification or prior sale.
