Used 1994 REIS TUS-180 OK-200 | Hydraulic Presses

224 TON REIS 4 POST HYDRAULIC SPOTTING PRESS
with Roll Out Table & Tilt Down Ram

Model: TUS 180 OK-200

S/N 04.023.00 YEAR: 1994

SPECIFICATIONS
Capacity......................................224 Ton
Stroke.........................................106”
Daylight......................................118”
Table Capacity...............................67,442 LBS
Table..............................................71”LR x 98”FB
Ram Platen....................................71”LR x 98”FB
Between Columns.........................74”LR
Slide Pattern Capacity...................26,977 LBS

EQUIPPED WITH
Press Controls Console
Top Mounted Hydraulics
Roll Out Bolster (Table)
Swivel Down Ram Platen (180°)
Power 480V / 3 PH / 60 Hz
Motor 25.3 Kw (approx. 33 HP) 41 Amps / 1755 RPM
Oil Reservoir Capacity 153 Gallons

**Press can be installed in Pit or as Floor Standing Press**

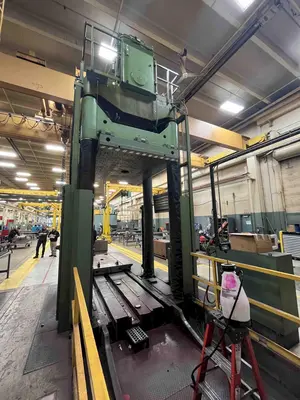

Pictured in Plant with Pit
Pit at 27.5" Depth
Above Floor 233.8" H
Floor Standing - Above Floor 261.5"
Approx. Floor Space 323" LR x 134" FB
Estimated Weight 103,617 lbs
Available Immediately, Available for Inspection

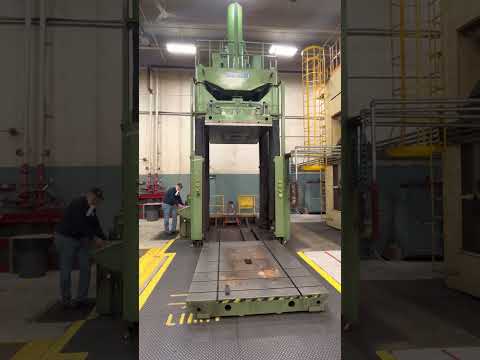

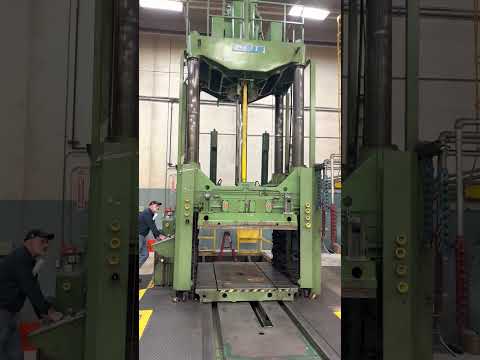

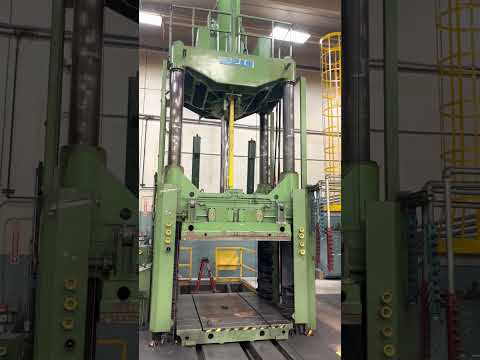

Click on Video Links Below & General Assembly Drawing
