2008 JOHNFORD VTC 1600

BEST PRICING IF PURCHASED WHILE STILL
IN PLANT UNDER POWER

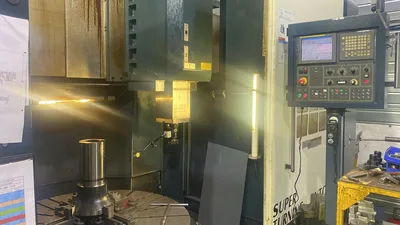

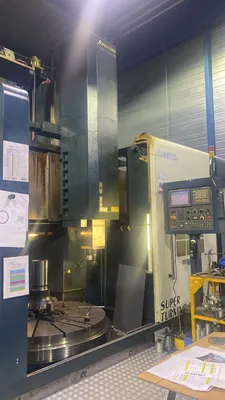

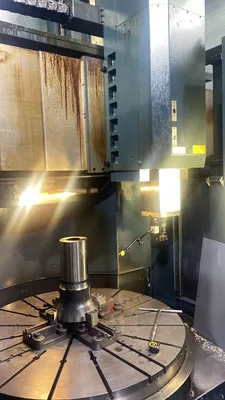

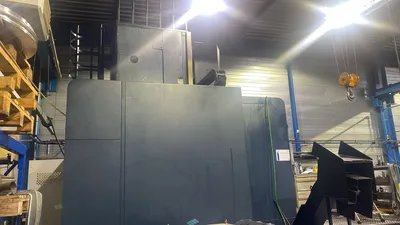

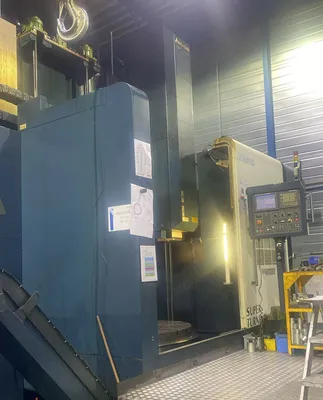

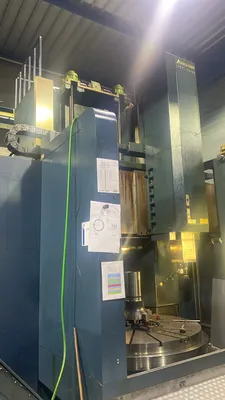

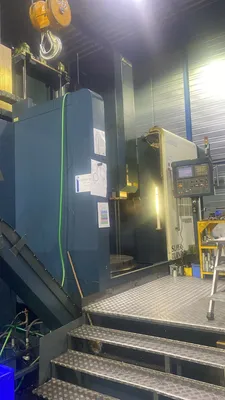

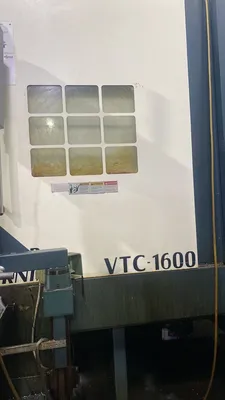

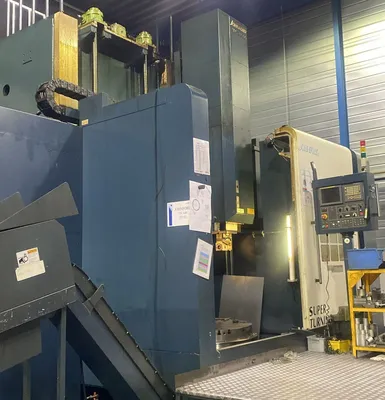

Johnford VTC-1600 Vertical Turning Center

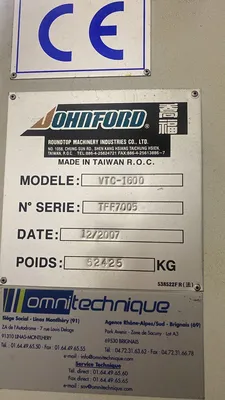

S/N TFF7005 YEAR: 2008

Specifications
Max Swing Diameter (mm)..............................................................2000 (78.7”)
Max Turning Diameter (mm)………………………………………………………..2000 (78.7”)
Max Turning Height (mm)…………………………………………………………….1250 (49.2”)

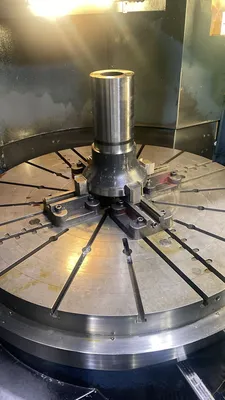

Chuck / Work Table Diameter (mm)…………………………………………….1600 (63”)
Max Table Load (kg)……………………………………………………………………..8000 (17,600 lb)
X-Axis Cross Travel (mm)………………………………………………………………1370 (53.9”)
Z-Axis Vertical Travel Of Ram (mm)………………………………………………900 (35.4”)
W-Axis Vertical Travel Of Cross Rail……………………………………………...800 (31.5”)
Speed Of Table……………………………………………………………………2-250 RPM
Speed Steps………………………………………………………………………..Auto Hi-Lo
Max Spindle Torque……………………………………………………………16204 Nm
Power Of Spindle Speed (Opt.)………………………………………………………2-2400 RPM
Rapid Traverse (X/Z Axis)(m/min)………………………………………………….12-10
No. Of Tools…………………………………………………………………….ATC Type: 12(Std.) ; 16,24,40,60 (Opt.)
Type Of Tool Shank……………………………………………………………………….7/24 Taper BT-50
Max Tool Size For Auto Changing (mm)……………………………..300W x 155T x 500L
Max Tool Weight (kg)……………………………………………………………………50 (110 lb)
Max Loading Of ATC (kg)……………………………………………………….350 (770 lb)
Square Tool Holder (Boring Tool Size) (mm)………………………………….32 x 32
Square Section Of Ram (mm)……………………………..250 x 250 (9.8”x 9.8”)

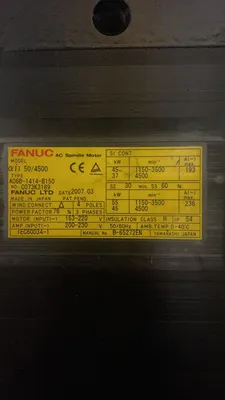

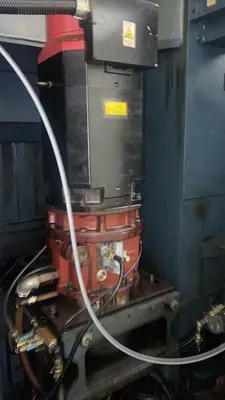

Spindle Motor / Table Spindle Motor (kw)…………………….37/45 Std. (45/55 Opt.)
Servo Motor (X/Z Axis)…………………………………………………………………..7-7
Coolant Pump Motor (kw)……………………………………………………………..0.98
Vertical Of Cross Rail Motor (kw)……………………………………………………7.5
Hydraulic Motor (kw)……………………………………………………………………..3.8
Machine Weight (kg)…………………………………………52425 kg (115,577 lb)
Dimensions (L x W x H) (mm)…………......…………….6,410 x 6,140 x 5,880
(252.4”x 241.7”x 231.5”)
Equipped With

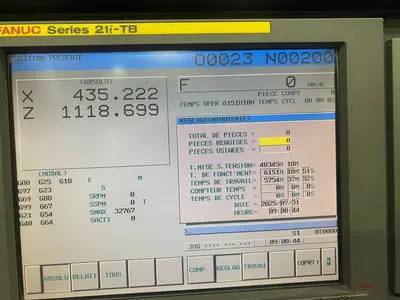

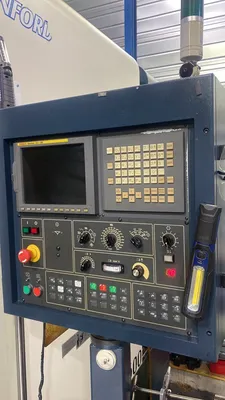

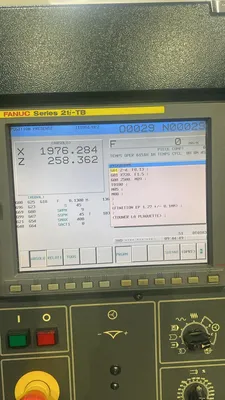

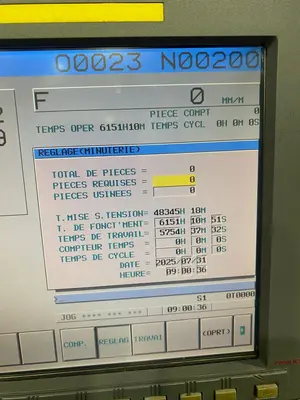

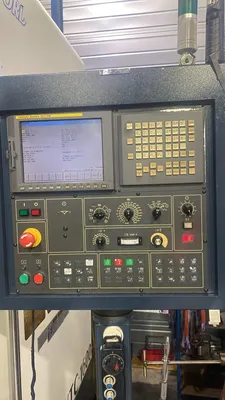

Fanuc 21i-TB controls.

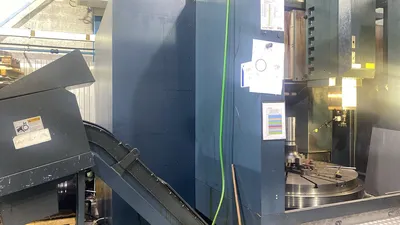

Chip conveyor.

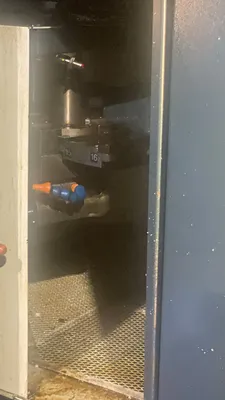

Automatic Tool Changer_16-Position ATC (BT50)

STILL IN PLANT. LOADED ON A TRUCK IN PARIS.

Specifications are deemed accurate, however, subject to verification or prior sale.
