Used 2009 JOHNFORD ST-130BX-HP+ATC | LATHES, PRECISION, N/C & CNC

BEST PRICING IF PURCHASED WHILE STILL
IN PLANT UNDER POWER

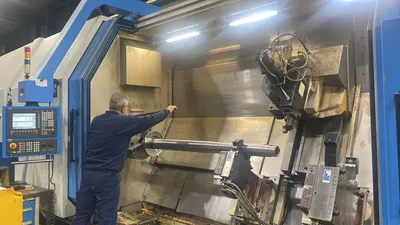

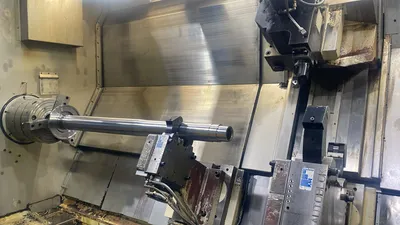

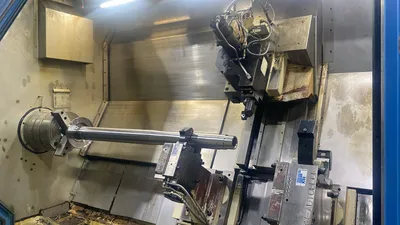

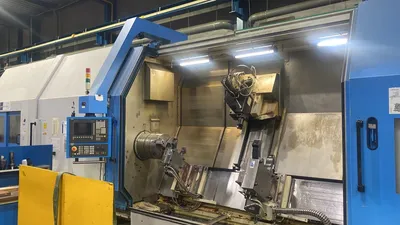

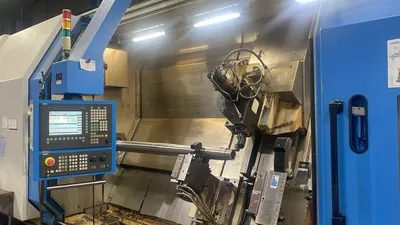

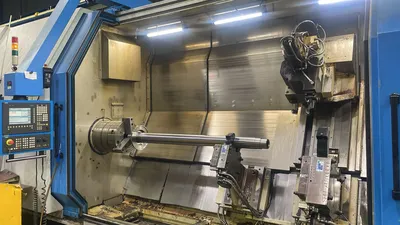

JOHNFORD ST-130BX-HP+ATC CNC LATHE
S/N TCG9053 YEAR: 2009

Specifications
Capacity.............................2800x1250mm (110.2 x 49.2”)
Swing Over Bed..........................1200mm (47.2”)
Swing Over Cross Slide..................925mm (36.4”)
Chuck Size..............................381mm (15”)
Bar Capacity............................116mm (4.6”)
Spindle Nose............................A2-11
Spindle Bore............................132mm (5.2”)
Spindle Speed...........................Auto 4-Speeds
Spindle Speed Range.....................2000 RPM
Spindle Motor...........................22/26 KW
Spindle Bearing Diameter................180mm (7.1”)
No. Of Tools............................48
X-Axis Cross Travel.....................520mm (20.5”)
Y-Axis Travel...........................+/- 75mm (3”)
Z-Axis Longitudinal Trave...............l3050mm (120.1”)
Rapid Traverse (m/min)..................X:10/Y:10/Z:10
Tailstock Travel........................2800mm (110.2”)
Tailstock Quill Travel..................150mm (5.9”)
Tailstock Quill Diameter................200mm (7.9”)
Tailstock Spindle Taper.................MT# 7
X-Axis Servo Motor......................7 KW
Y-Axis Servo Motor......................3 KW
Z-Axis Servo Motor......................7 KW
Bed Indication..........................60 Degrees
Weight..................................23,500 KG (51,809 LBS)

Dimensions
Width...................................2,645mm (104.1”)
Height..................................3,175mm (125”)
Length..................................8,612mm (339.1”)

Equipped With

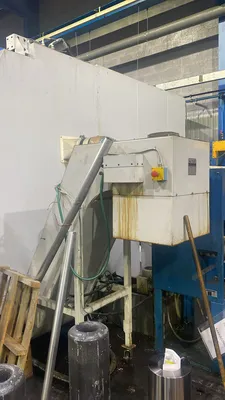

Coolant system.

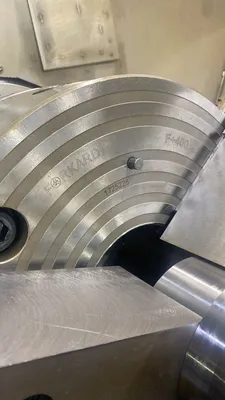

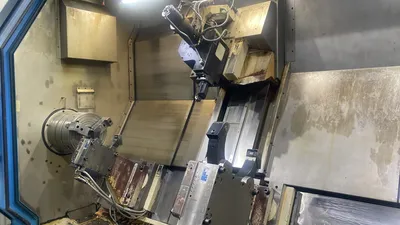

Forkardt 400mm (15.7”) chuck..
Tailstock.

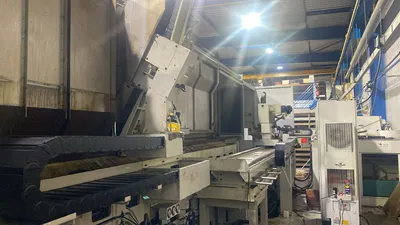

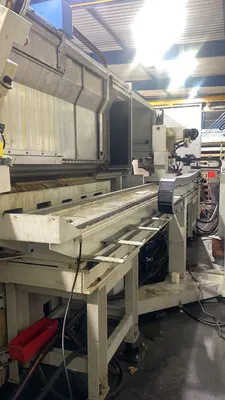

Chip conveyor.

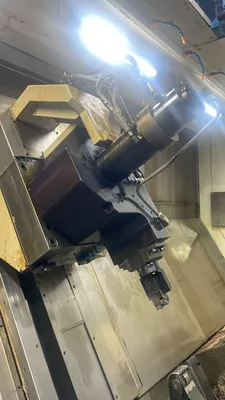

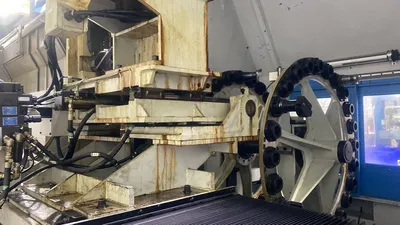

48-Tool changer.
Auto lubrication with arm.

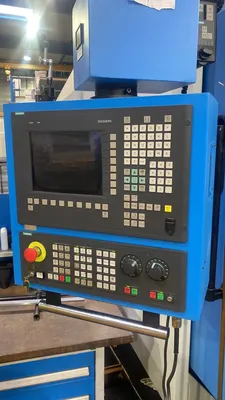

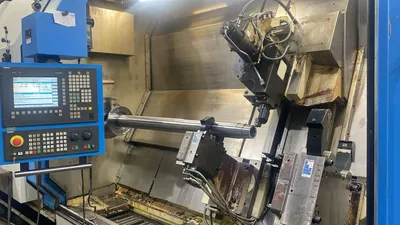

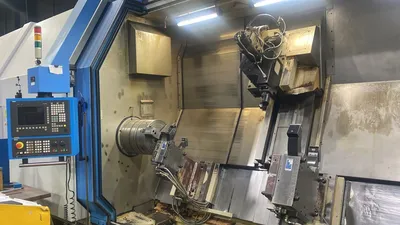

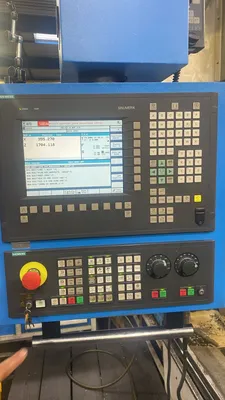

Siemens 840D controller.

STILL IN PLANT. LOADED ON A TRUCK IN PARIS.
PRICES ON QUOTE ARE GOOD THROUGH SEPTEMBER 2025.

Specifications are deemed accurate, however, subject to verification or prior sale.
