2004 GURUTZPE A-1000/2

BEST PRICING IF PURCHASED WHILE STILL
IN PLANT UNDER POWER

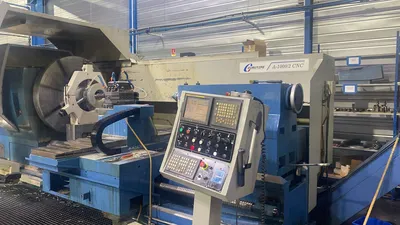

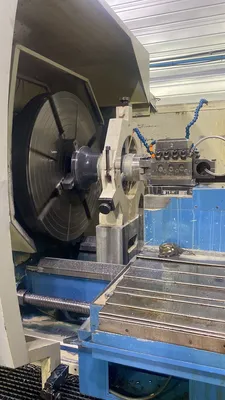

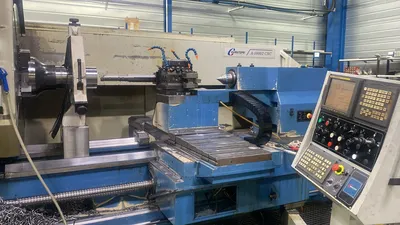

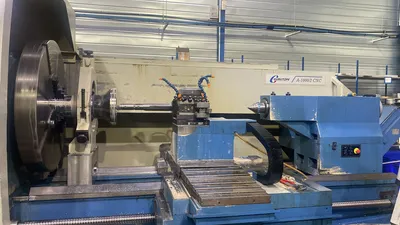

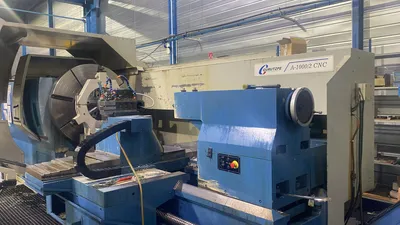

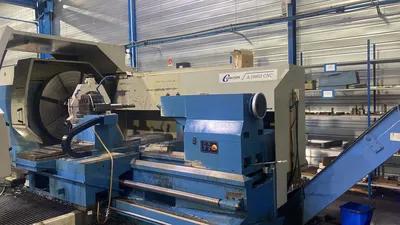

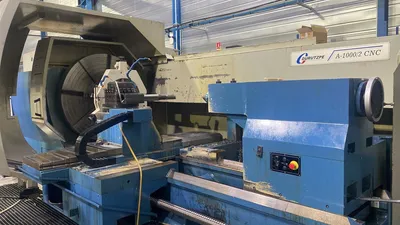

Gurutzpe CNC Lathe Model A-1000/2

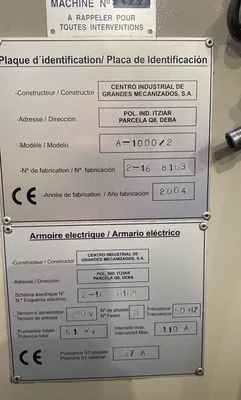

S/N 2-16.8103 YEAR:2004

Specifications

Capacity
Distance Between Centers...................2000mm (79”)
Center Height........................................710mm (28”)
Swing Over Table..................................1400mm (55”)
Spindle Bore..........................................105mm (4”)
Chuck Diameter.....................................1200mm (47”)
Total Power............................................51 KW
Voltage...................................................380 V/3-Phase/50 HZ

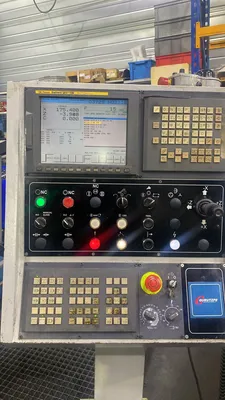

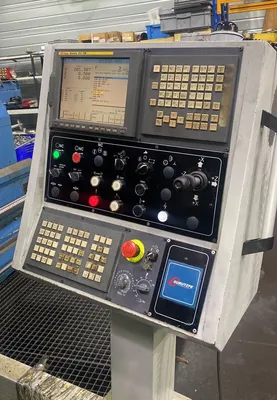

Controls..................................................Fanuc 21i-TB
Frequency..............................................50 Cycles
Trolley Tumble.......................................1000mm (39”)

Main Axis & Tailstock Rod
Max Axis Orifice....................................260mm (10.2”)
Main Axis...............................................A-15
Front Bearing Diameter.........................292mm (11.5”)
Tailstock Rod Diameter.........................180(220)mm (7.1/8.7”)
Couple Head (S1)...................................8430 Nm
Speed Range..........................................0-800 RPM

Bench & Carts
Total Bench Width................................1090 (800+290) K

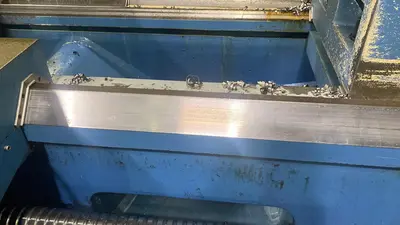

Bench Guides.......................................120mm (4.7”)
Trans Trolley Measurement................GxL 520x800
Long Cart Measurement.....................DxO 1200x1647
Trans Strength Training.......................24880 N
Longitudinal TrainIng Force.................39810 N

Equipped With

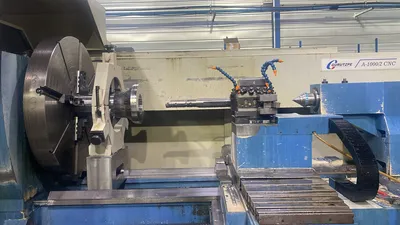

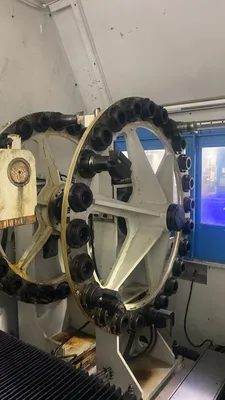

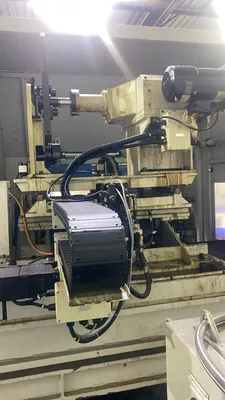

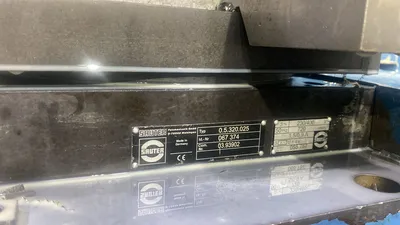

Sauter Turret.

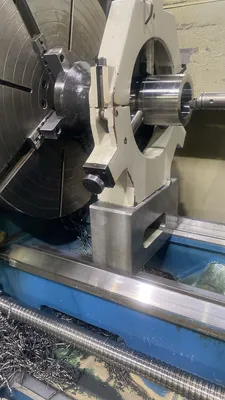

3-Point Steady Rest.

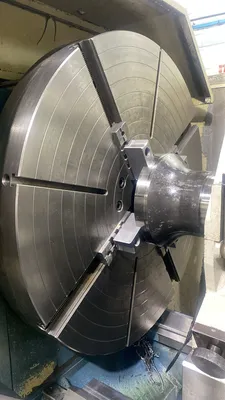

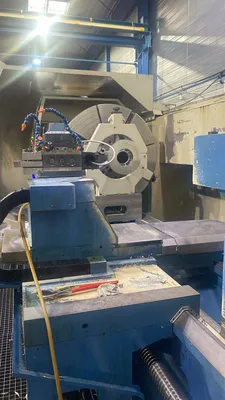

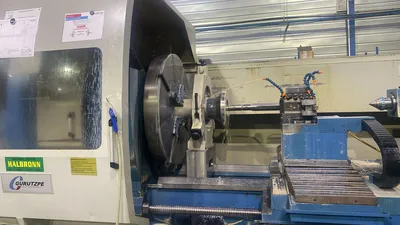

4-Jaw Chuck.
Ball Screw Drive.

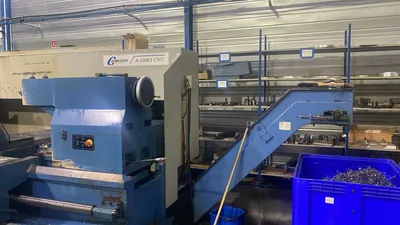

Swarf Conveyor.

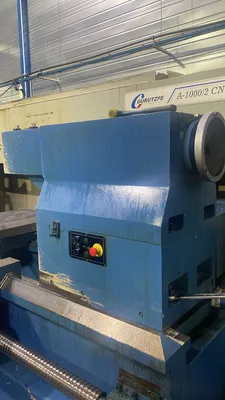

Tailstock.

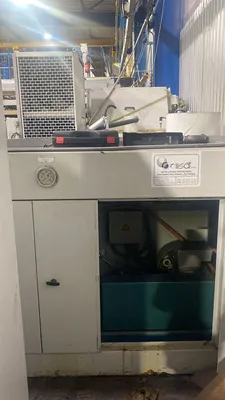

Coolant.
Auto-Indexing.

STILL IN PLANT. LOADED ON A TRUCK IN PARIS.
PRICES ARE GOOD THROUGH SEPTEMBER 2025.

Specifications are deemed accurate, however, subject to verification or prior sale.
