Used 1969 BRYANT CENTERHOLE | GRINDERS, CENTER HOLE

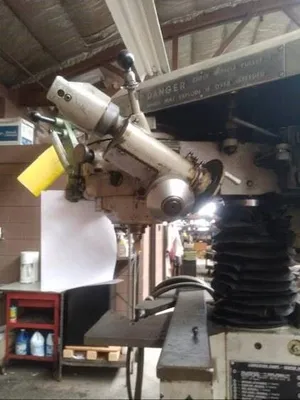

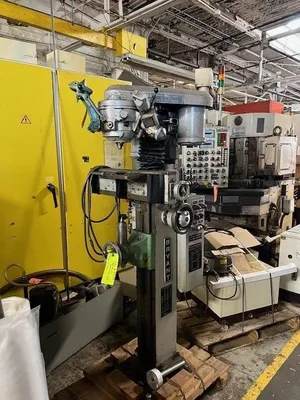

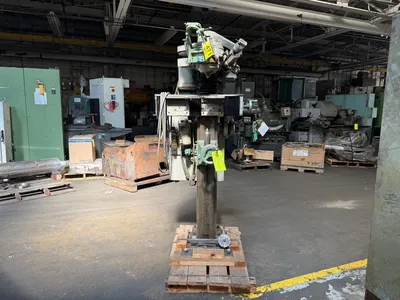

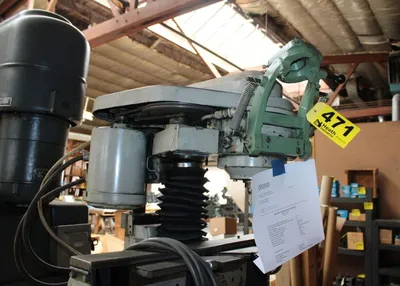

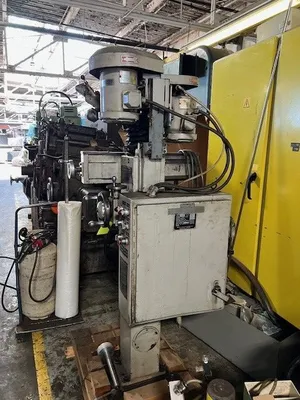

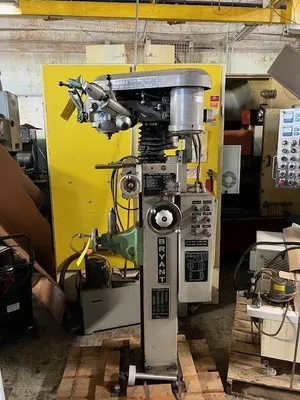

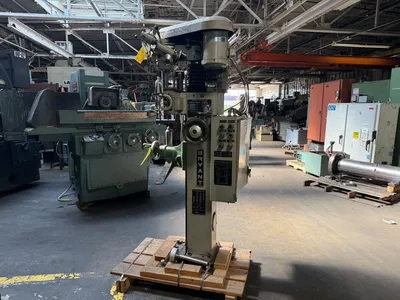

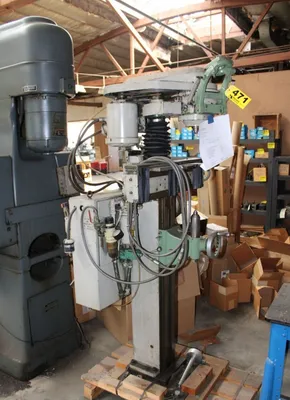

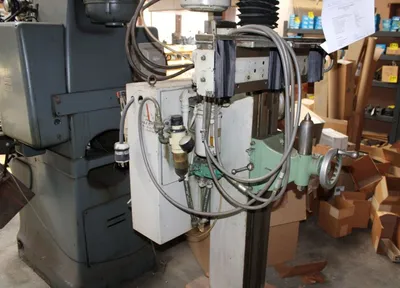

BRYANT CENTER HOLE GRINDER

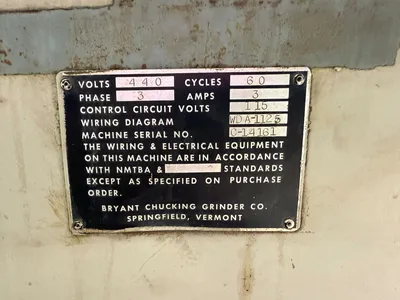

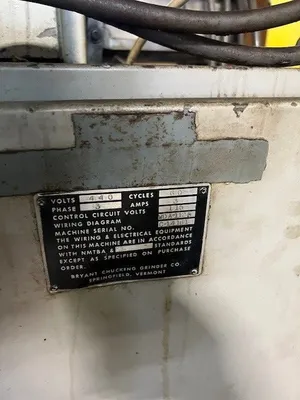

S/N C-14161 YEAR: 1969

STANDARD SPECIFICATIONS
Work piece length – standard range………………………..…….. 2” to 42”
Clearance tail stock center to column………………………..…… 6.2”
Vise capacity (standard jaws)………………………………….…. .060” to 6”
Maximum center hole ground (large end)……………………..….. 2”
Minimum center hole ground (large end)…………………..…….. .050”
Grinding spindle speeds………………………………….…. 13000 / 21500 / 45000 RPM
Planetary drive speed………………………………………..……. 330 RPM
Angular grinding stroke…………………………………….……. .005” to .100”
Wheel head drive motor……………………………………..……. 3600 RPM 1/2 HP
Planetary drive motor………………………………………..……. 900 RPM 1/4 HP
Weight of machine……………………………………………..…. 1250 lbs.
Floor space without dust collector……………………………….... 31.5” x 43”

OPERATION
The Bryant Center Hole Grinder produces geometrically correct center holes – a vital requirement for precision O.D. grinding. Ideal for re-centering distorted centers in machine spindles, arbors, center-controlled checking devise & for other salvage work.
It minimizes stock removal and greatly improves work quality and accuracy. Operation of the Bryant Grinder is unique – instead of utilizing plunge grinding, with its inherent faults, it “Generates” to produce fine finishes and precision tolerances similar to those obtained on an internal grinder. High Precision 3-way grinding to the cone-shaped wheels are – Rotary Motion of the Grinding Cone above its spindle axis; Planetary motion of the Grinding Cone about its spindle axis; Reciprocating motion of the Grinding Cone along a line 30 degrees from the vertical.

EQUIPMENT & FEATURES
Wheel dresser.
Adjustable vise.

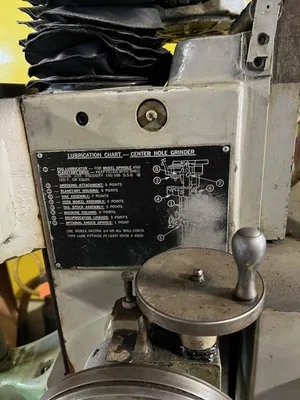

Lubrication.

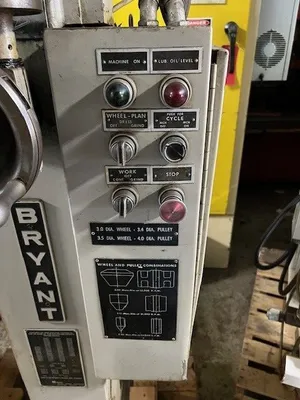

Attached electrics.
